Toshiba Semiconductor and Storage TPH1R403NL,L1Q

Part No.:: TPH1R403NL,L1Q

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 8-SOP Advance (5x5)

Datasheet:: TPH1R403NL,L1Q.pdf

Description:: MOSFET N-CH 30V 60A 8SOP

In Stock:: 3072

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPH1R403NL,L1Q Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
U-MOSVIII-H
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
60A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
1.4mOhm @ 30A, 10V
Vgs(th)(Max)@Id:
2.3V @ 500µA
GateCharge(Qg)(Max)@Vgs:
46 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4400 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
1.6W (Ta), 64W (Tc)
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

TPH1R403NL,L1Q this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPH1R403NL,L1Q price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPH1R403NL,L1Q to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPH1R403NL,L1Q information

Views：

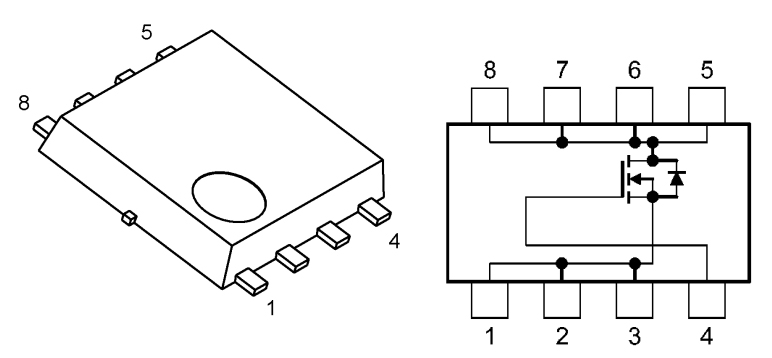

TPH1R403NL,L1Q Typical application Circuitry

TPH1R403NL,L1Q

The TPH1R403NL,L1Q is a high-performance N-channel MOSFET transistor produced by Toshiba. This MOSFET is designed for use in applications requiring high efficiency and fast switching.

Key features of TPH1R403NL,L1Q:

- It supports a maximum drain-source voltage of 30V and can handle a continuous drain current of up to 150A.

- The maximum gate-source voltage is ±20V.

- It has a low drain-source on-resistance of 1.4 mOhm at 10V, ensuring efficient operation.

- The MOSFET features a typical gate charge of 46 nC at 10V, which contributes to its high-speed switching capability.

- It is designed for surface mount and comes in an 8-pin SOP Advance package.

One potential application of the TPH1R403NL,L1Q is in high-efficiency DC-DC converters. In such a circuit, this MOSFET can be used as the main switch.

The TPH1R403NL,L1Q specific circuit connection would include:

- Gate Control: The gate of the MOSFET (pin configuration specific to the SOP Advance package) is connected to the PWM output of a controller, which regulates the MOSFET's switching.

- Source and Drain Connections: The source is typically connected to the ground, and the drain is connected to one side of the load.

- Flyback Diode: A flyback diode is often used across the inductive load to protect the MOSFET from voltage spikes.

- Gate Resistor: A resistor may be added between the gate and the controller to limit the inrush current.

When designing circuits with the TPH1R403NL,L1Q, it's important to consider factors such as the thermal management due to the potential heat generated at high currents, the gate drive voltage to ensure efficient switching without damaging the transistor, and the overall power dissipation capabilities of the MOSFET.
