What is the Additional Feature ?

Name: 2N7002P,235
Brand: Nexperia USA Inc.
SKU: 2N7002P,235
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nexperia USA Inc. 2N7002P,235

Part No.:: 2N7002P,235

Manufacturer:: Nexperia USA Inc.

Package:: TO-236AB

Datasheet:: 2N7002P,235.pdf

Description:: MOSFET N-CH 60V 360MA TO236AB

In Stock:: 96842

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2N7002P,235 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2N7002P,235 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2N7002P,235 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

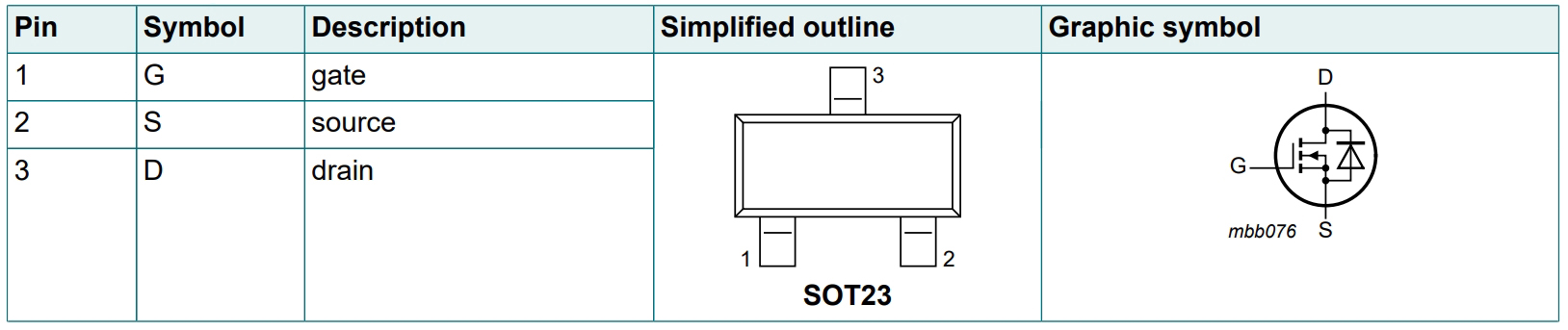

2N7002P,235 Typical application Circuitry

2N7002P,235

The 2N7002P,235 is a manifestation of an N-channel enhancement-mode MOSFET, often utilized for its low on-resistance and rapid switching characteristics. Packed in a SOT-23 package, it's an embodiment of efficiency in a compact form.

Diverse Application Avenues:

1. Configured for switching tasks, especially in compact designs.

2. As a linchpin in power management scenarios.

3. Stepping into the shoes of a level shifter in multi-voltage environments.

4. An ally in pulse-width-modulation (PWM) circuits, due to its swift switching.

Core Specifications:

1. Voltage Tolerance (Vds): Standard values hover around the 60V mark.

2. Amperage Throughput (Id): It's often geared to accommodate currents in the ballpark of 300mA.

3. Gate Sensitivity (Vgs(th)): This value gravitates around 2.1V, offering compatibility with a range of input signals.

4. Resistance Footprint (Rds(on)): The 2N7002P,235 boasts of a low resistance in its 'on' state, accentuating efficiency.

5. Package: Encased in the SOT-23, it's a testament to compact power.

Diving into an Application: PWM Light Dimmer

Deploying the 2N7002P,235 in a PWM-based light dimmer for LEDs:

1. LED Association:

With the Drain pin of the 2N7002P,235 in tow, connect it to the negative terminal of your LED. The LED's positive lead should be in consort with your supply voltage, typically around 5V for most generic LEDs.

2. Finding Common Ground:

Confluence is key. The Source pin of the 2N7002P,235 needs to be anchored firmly to the ground, ensuring a shared reference point.

3. Driving with Precision:

To imbue life into the LED, the Gate of the 2N7002P,235 will be the puppeteer. Here, you'd inject your PWM signal. A microcontroller, for instance, could be your PWM signal source. It's paramount to ensure that the PWM signal's voltage peaks align with the 2N7002P,235's gate threshold for optimal operation. To keep the MOSFET in its dormant state when no signal is given, tag along a 10kΩ pull-down resistor to the gate.

4. Safeguarding the Circuit:

A resistor in series with the LED will ensure the current stays within permissible bounds, protecting both the LED and the 2N7002P,235.

Ponder Points during Design:

1. Voltage Vigilance: A watchful eye needs to ensure that the 2N7002P,235 is never bullied with voltages beyond its stipulated capacity, especially at its gate.

2. Heat's Nemeses: Prolonged or high-current operations might make the 2N7002P,235 a tad temperamental, temperature-wise. Effective thermal management is crucial, perhaps via adept PCB layout strategies.

3. Dynamic Behavior: Rapid switching might introduce noise. A small gate resistor could help dampen potential oscillations.

4. Aegis Against ESD: The 2N7002P,235 has its Achilles' heel – sensitivity to electrostatic shocks. Ensuring ESD-safe handling and protective circuitry is paramount.

In essence, the 2N7002P,235 seamlessly blends power and compactness. While it brings a lot to the electronic table, respect for its specifications and a keen design approach will ensure it functions at its zenith.

2N7002P,235 information

2N7002P,235 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
360mA (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
1.6Ohm @ 500mA, 10V
Vgs(th)(Max)@Id:
2.4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.8 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
50 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
350mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
