Infineon Technologies IRLML2803TRPBF

Part No.:: IRLML2803TRPBF

Manufacturer:: Infineon Technologies

Package:: Micro3™/SOT-23

Datasheet:: IRLML2803TRPBF.pdf

Description:: MOSFET N-CH 30V 1.2A SOT23

In Stock:: 539560

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLML2803TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLML2803TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLML2803TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

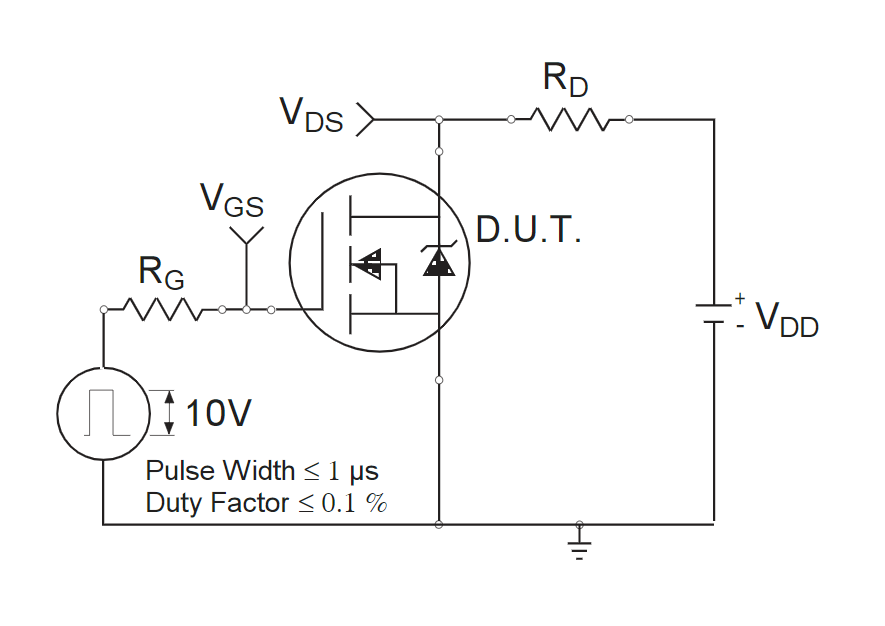

IRLML2803TRPBF Typical application Circuitry

IRLML2803TRPBF

The IRLML2803TRPBF, a distinguished member of the HEXFET® power MOSFET series, is a single N-channel device that emphasizes a unique blend of low on-resistance and swift switching capabilities. Hailing from International Rectifier's vast array of efficient semiconductors, the IRLML2803TRPBF's versatility is instrumental in applications demanding minimal power loss. When considering this MOSFET's inclusion into a design, understanding its pin structure and the intricacies of circuit connections is essential.

1. Gate (G): As the MOSFET's controlling terminal, the Gate determines the ON/OFF state of the device. Connect this pin to the output of the controlling module, whether it be a microcontroller, transistor, or any driving circuit. It is astute to incorporate a gate resistor to mitigate noise or unwanted oscillations, ensuring clean switching actions.

2. Drain (D): The Drain, often connected to the load's terminal, is the MOSFET's primary current exit point. Whether the IRLML2803TRPBF functions in a high-side or low-side switching arrangement determines its connection to either the positive end of the load or directly to the power supply.

3. Source (S): Customarily, the Source pin finds its connection rooted to the circuit's ground, establishing a reference point. However, in high-side configurations, the Source links directly to the load.

4. Pertinent Circuit Integration Considerations:

- Gate Stability Strategy: A pull-down resistor attached to the Gate ensures that the IRLML2803TRPBF remains deactivated during scenarios where the driving signal might be absent or undefined. This grounding measure avoids unintentional activation.

- Overvoltage Safeguard: Introducing a zener diode between the Gate and Source pins can act as a shield against potential voltage transients, ensuring the voltage never surpasses the MOSFET's gate threshold and thus prolonging the IRLML2803TRPBF's lifespan.

- Thermal Precautions: Given the potential for the IRLML2803TRPBF to generate heat, especially when it's under the duress of high currents, adopt adept heat management techniques, like employing thermal pads or ensuring proper ventilation.

- Initial Circuit Evaluation: Upon integrating the IRLML2803TRPBF, it's prudent to instigate a thorough circuit examination under moderated conditions to confirm both the MOSFET's and the entire assembly's functionality.

In summary, the IRLML2803TRPBF is a hallmark of efficient, space-saving electronic design. Its deployment mandates a fusion of technical acumen and precision in connections. To harness its full potential, designers must refer to the specific datasheet of the IRLML2803TRPBF, ensuring all connections and operational conditions adhere to prescribed specifications. By doing so, they unlock the powerful capabilities intrinsic to this HEXFET® MOSFET in myriad applications.

IRLML2803TRPBF information

IRLML2803TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
1.2A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
250mOhm @ 910mA, 10V
Vgs(th)(Max)@Id:
1V @ 250µA
GateCharge(Qg)(Max)@Vgs:
5 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
85 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
540mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
