Infineon Technologies IRLML6346TRPBF

Part No.:: IRLML6346TRPBF

Manufacturer:: Infineon Technologies

Package:: Micro3™/SOT-23

Datasheet:: IRLML6346TRPBF.pdf

Description:: MOSFET N-CH 30V 3.4A SOT23

In Stock:: 229621

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLML6346TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLML6346TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLML6346TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

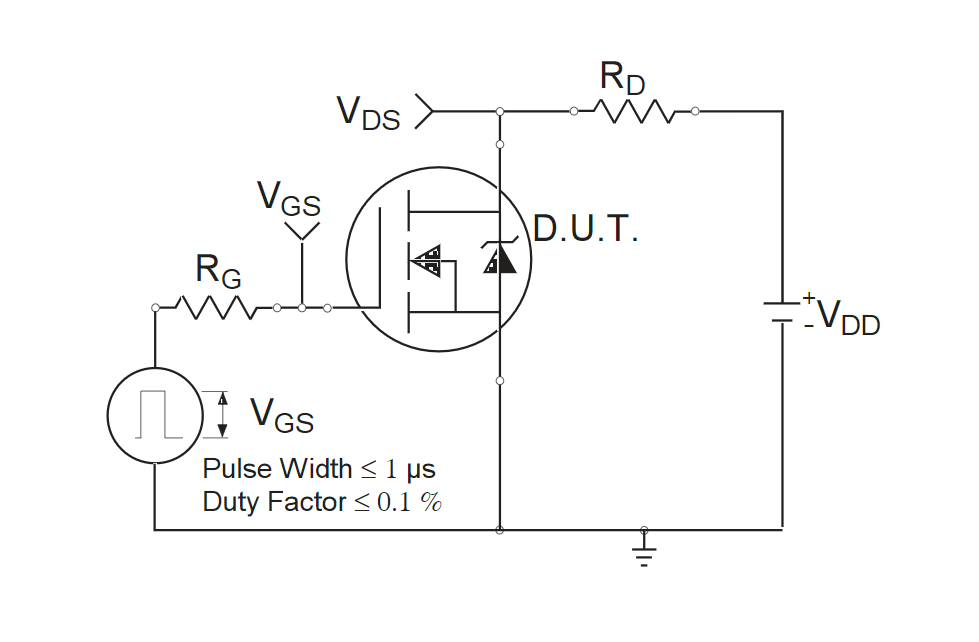

IRLML6346TRPBF Typical application Circuitry

IRLML6346TRPBF

The IRLML6346TRPBF, part of Infineon's HEXFET Power MOSFET portfolio, emerges as a crucial component in compact yet high-performance electronic assemblies. This specific MOSFET, known for its low on-resistance and high-density integration, is pivotal in applications where power efficiency and conservation of space are paramount. Let's delve into the intricate aspects of incorporating the IRLML6346TRPBF into a circuit, ensuring exactness down to the individual pin connections.

1. Drain (D): The Drain, acting as one of the terminals for current passing through the MOSFET, connects directly to the load. This pin's orientation is towards the positive side of the load, ensuring current flows from the drain to the source, in adherence to the conventional current flow theory.

2. Gate (G): The Gate terminal, the control mechanism of the MOSFET, receives the input signal that regulates the switch's 'on' and 'off' states. This pin often connects to the output terminal of a microcontroller or PWM generator, which sends out a control signal. To maintain signal integrity and protect against high frequencies or transients, a series gate resistor might be necessary.

3. Source (S): Typically tied to the ground in most common circuit configurations, the Source pin establishes the reference point for the Gate voltage. In specific designs, particularly those involving high-side switching, this pin connects directly to the negative terminal of the load or power source.

4. Advanced Integration Insights:

- Gate Protection: Protecting the IRLML6346TRPBF's sensitive gate requires a shunt zener diode between the gate and source, preventing excessive voltage and potential MOSFET failure. This approach is critical in scenarios where gate voltages might exceed the maximum specified limits.

- Feedback Considerations: In certain applications, a small resistor placed between the source and ground provides a feedback mechanism, enabling current monitoring for overcurrent protection purposes.

- Thermal Management: Operating the IRLML6346TRPBF within its prescribed thermal limits necessitates effective heat dissipation strategies, particularly in high-current or high-frequency operations. Adequate heat sinking or thermal padding can significantly enhance operational reliability.

- Comprehensive Circuit Analysis: Post-assembly, it's prudent to undertake a thorough circuit inspection under minimal power conditions, incrementally escalating to full operational loads. This step is crucial for preemptively identifying potential design or component faults.

IRLML6346TRPBF information

IRLML6346TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
3.4A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
2.5V, 4.5V
RdsOn(Max)@IdVgs:
63mOhm @ 3.4A, 4.5V
Vgs(th)(Max)@Id:
1.1V @ 10µA
GateCharge(Qg)(Max)@Vgs:
2.9 nC @ 4.5 V
Vgs(Max):
±12V
InputCapacitance(Ciss)(Max)@Vds:
270 pF @ 24 V
FETFeature:
-
PowerDissipation(Max):
1.3W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
