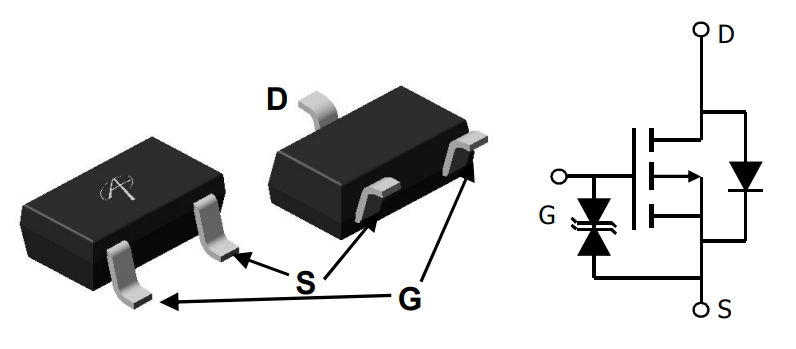

Alpha & Omega Semiconductor Inc. AO3415A

Part No.:: AO3415A

Manufacturer:: Alpha & Omega Semiconductor Inc.

Package:: SOT-23-3

Datasheet:: AO3415A.pdf

Description:: MOSFET P-CH 20V 5A SOT23-3L

In Stock:: 10761

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AO3415A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AO3415A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AO3415A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

AO3415A Typical application Circuitry

AO3415A

The AO3415A is a P-Channel MOSFET, known for its high efficiency in power management and switching applications. This type of MOSFET is particularly useful in scenarios where low on-resistance, high-speed switching, and effective control of power distribution are required. It's suitable for a variety of applications, including load switching, power distribution in portable devices, and as a switching element in various electronic circuits.

Application Scenarios

Load Switching in Portable Devices: The AO3415A is commonly used in portable electronic devices for load switching, controlling the power supply to different components efficiently and effectively.

Parameter Features

- Low On-Resistance: This minimizes power losses, enhancing overall efficiency, particularly in high-current applications.

- High-Speed Switching: Suitable for applications that require quick response times.

- Compact Size: Ideal for use in space-constrained applications, such as portable electronic devices.

Circuit Connection Example

In a power management system for a portable electronic device, the AO3415A can be integrated as follows:

1. Source Pin Connection: Connect the source pin of the AO3415A to the positive voltage supply. In P-Channel MOSFETs, the source is typically connected to the higher potential.

2. Drain Pin to Load: Attach the drain pin to the component that requires controlled power, such as a part of the device's internal circuit like a display or sensor module.

3. Gate Pin for Control: Connect the gate pin to a control signal, usually from a microcontroller or a power management IC. This signal controls the MOSFET's on/off state, thereby managing the power flow to the component.

4. Gate Resistor: Include a resistor between the gate and the control signal source to ensure smooth operation of the MOSFET and to protect it from high inrush currents.

Design Considerations

When designing a circuit with the AO3415A, consider the following:

- Thermal Management: Ensure adequate cooling, as the AO3415A can generate heat, especially when operating at high currents.

- Gate Drive Voltage: Make sure the gate drive voltage is suitable for the P-Channel MOSFET to fully activate it.

- Load Specifications: Evaluate the load to ensure the MOSFET can handle the expected current and power levels without being overstressed.

- Protection Mechanisms: Implement protection against overcurrent, voltage spikes, and reverse polarity to safeguard the MOSFET and other circuit components.

In summary, the AO3415A is essential in power management systems of portable electronic devices, offering efficient control of power distribution with its low on-resistance and high-speed switching capabilities. These features are critical for the effective and energy-efficient operation of modern electronics.

AO3415A information

AO3415A Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
5A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
1.5V, 4.5V
RdsOn(Max)@IdVgs:
45mOhm @ 4A, 4.5V
Vgs(th)(Max)@Id:
900mV @ 250µA
GateCharge(Qg)(Max)@Vgs:
11 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
940 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
1.5W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
