What is the Additional Feature ?

Name: NDS331N
Brand: ON Semiconductor
SKU: NDS331N
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NDS331N

Part No.:: NDS331N

Manufacturer:: ON Semiconductor

Package:: SOT-23-3

Datasheet:: NDS331N.pdf

Description:: MOSFET N-CH 20V 1.3A SUPERSOT3

In Stock:: 276507

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NDS331N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NDS331N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NDS331N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

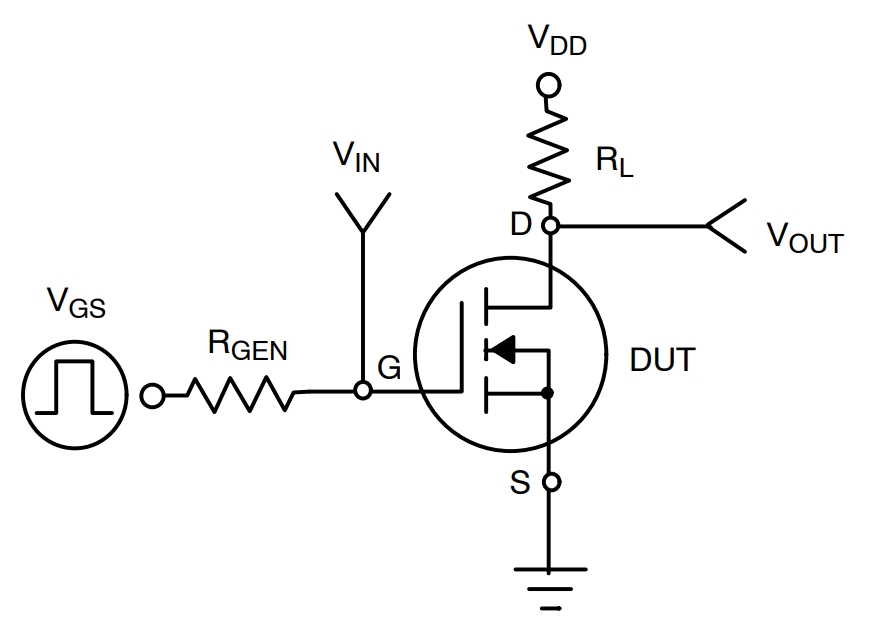

NDS331N Typical application Circuitry

NDS331N

The NDS331N is a MOSFET transistor, more specifically an N-channel, enhancement-mode Field-Effect Transistor (FET). Its main functionality revolves around switching and amplifying electronic signals.

Applications:

The NDS331N is utilized in various scenarios, such as power management circuits, load switches, and as a switch in general electronic applications. It is also appropriate for PWM (Pulse Width Modulation) applications due to its fast switching capabilities.

Key Specifications:

- V_DS (Drain-Source Voltage): 20V

- I_D (Continuous Drain Current): 1.2A

- R_DS(ON) (Drain-Source On Resistance): 0.300 Ohms

- V_GS(th) (Gate Threshold Voltage): 0.8V to 2.5V

- SOT-23 Package

Circuit Example: Load Switch

1. Power Source Connection: Connect a power source's positive terminal to the Drain (D) pin of the NDS331N, which is pin 3.

2. Load Connection: Attach the load's positive terminal to the Source (S) pin, which is pin 2. The load's negative terminal goes to the power source's ground.

3. Gate Control: Connect a control voltage (V_GS) to the Gate (G) pin, which is pin 1. This voltage controls the ON/OFF state of the MOSFET.

4. Pull-Down Resistor: Include a pull-down resistor between the Gate and Source pins to ensure the MOSFET remains off when no control voltage is applied.

Design Considerations:

When designing circuits with the NDS331N, ensure the control voltage (V_GS) is sufficient to fully turn on the MOSFET. Also, heat dissipation should be considered, especially in high current applications, and a heatsink might be necessary. Protection elements such as flyback diodes may be required for inductive loads.

This depiction is a basic illustration and might require adjustments based on specific application requirements. Always refer to the datasheet for comprehensive design guidance.

NDS331N information

NDS331N Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
1.3A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
2.7V, 4.5V
RdsOn(Max)@IdVgs:
160mOhm @ 1.5A, 4.5V
Vgs(th)(Max)@Id:
1V @ 250µA
GateCharge(Qg)(Max)@Vgs:
5 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
162 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
500mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

NDS331N FAQ

1. How to order NDS331N on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that NDS331N is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NDS331N. All suppliers must pass our qualification reviews before they can publish their products including NDS331N on icwhale.com; we pay more attention to the channels and quality of NDS331N products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NDS331N price and inventory displayed accurate?

The price and inventory of NDS331N fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of NDS331N?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the NDS331N we delivered, we will accept the replacement or return of the NDS331N only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of NDS331N.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
