STMicroelectronics STW5NK100Z

Part No.:: STW5NK100Z

Manufacturer:: STMicroelectronics

Package:: TO-247-3

Datasheet:: STW5NK100Z.pdf

Description:: MOSFET N-CH 1000V 3.5A TO247-3

In Stock:: 3319

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STW5NK100Z Specifications

Packaging:
Tube
Series:
SuperMESH3™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
1000 V
Current-ContinuousDrain(Id)@25°C:
3.5A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
3.7Ohm @ 1.75A, 10V
Vgs(th)(Max)@Id:
4.5V @ 100µA
GateCharge(Qg)(Max)@Vgs:
59 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
1154 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
125W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole

STW5NK100Z this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STW5NK100Z price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STW5NK100Z to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STW5NK100Z information

Views：

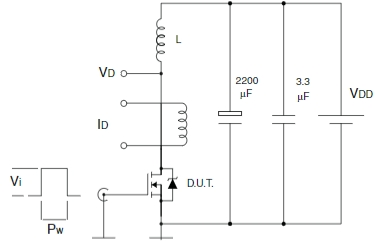

STW5NK100Z Typical application Circuitry

STW5NK100Z

The STW5NK100Z is an N-channel Power MOSFET developed by STMicroelectronics. It is designed for applications that require high voltage switching and efficient power conversion. Here's a detailed description of the STW5NK100Z:

1. N-channel MOSFET: The STW5NK100Z is a type of Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) where an N-type (negatively-doped) semiconductor material is used to form a channel between the drain and source terminals when a voltage is applied to the gate terminal.

2. Voltage Rating (Vds): This MOSFET is designed to handle a high drain-source voltage, typically around 1000V (1kV), making it suitable for high voltage applications.

3. Current Rating (Id): The STW5NK100Z can handle a continuous drain current, which is typically around 4.4A.

4. Rds(on): The on-state resistance (Rds(on)) between the drain and source terminals is designed to be relatively low, minimizing conduction losses and improving efficiency.

5. Zener-protected SuperMESH™ Technology: The STW5NK100Z is a part of the Zener-protected SuperMESH™ series, known for its low gate charge, low on-resistance, and high avalanche ruggedness.

6. Package: The STW5NK100Z is typically available in a TO-247 package, which is suitable for efficient heat dissipation.

7. Applications: Due to its high voltage and current handling capabilities, the STW5NK100Z is suitable for a variety of applications such as switch-mode power supplies (SMPS), lighting (e.g., electronic ballasts), motor control, and power factor correction circuits.

8. Protection Features: The integrated Zener diode provides protection against electrostatic discharge (ESD) and other potential gate oxide integrity damages.

9. Datasheet: For precise details such as pin configuration, electrical characteristics, thermal information, and more, it's best to consult the datasheet of the STW5NK100Z, which can be obtained from the STMicroelectronics website or electronic component distributors.

In summary, the STW5NK100Z is designed to offer efficient and reliable performance in power conversion and high voltage switching applications with its low on-resistance, high voltage rating, and protection features.
