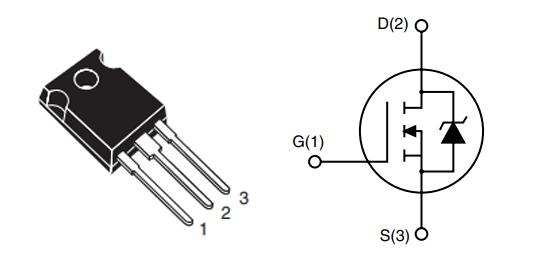

STMicroelectronics STW4N150

Part No.:: STW4N150

Manufacturer:: STMicroelectronics

Package:: TO-247-3

Datasheet:: STW4N150.pdf

Description:: MOSFET N-CH 1500V 4A TO247-3

In Stock:: 2864

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STW4N150 Specifications

Packaging:
Tube
Series:
PowerMESH™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
1500 V
Current-ContinuousDrain(Id)@25°C:
4A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
7Ohm @ 2A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
50 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
1300 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
160W (Tc)
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole
