STMicroelectronics STP26NM60N

Part No.:: STP26NM60N

Manufacturer:: STMicroelectronics

Package:: TO-220

Datasheet:: STP26NM60N.pdf

Description:: MOSFET N-CH 600V 20A TO220AB

In Stock:: 3898

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STP26NM60N Specifications

Packaging:
Tube
Series:
MDmesh™ II
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
600 V
Current-ContinuousDrain(Id)@25°C:
20A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
165mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
60 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
1800 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
140W (Tc)
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole

STP26NM60N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STP26NM60N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STP26NM60N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STP26NM60N information

Views：

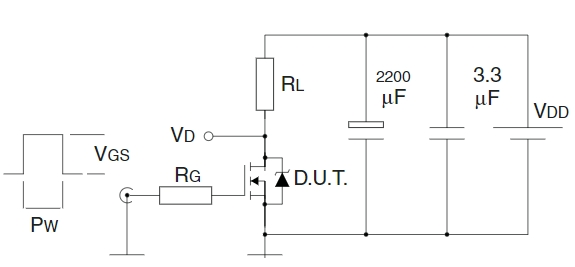

STP26NM60N Typical application Circuitry

STP26NM60N

The STP26NM60N is a Power MOSFET designed by STMicroelectronics. It is primarily utilized in high-power applications for its ability to efficiently handle and switch high currents and voltages. The STP26NM60N is known for its low on-resistance, fast switching speed, and durability, making it a reliable choice for heavy-duty applications.

Application Scenarios of STP26NM60N:

1. Power Supply Units (PSUs): Frequently used in converting AC to DC, and in voltage regulation for stable power supply.

2. LED Lighting Systems: Employed for managing high power LEDs, ensuring efficient operation and longevity.

3. Motor Control Systems: Utilized in controlling motor speeds and torque in industrial and automotive applications.

Key Features:

1. High Voltage and Current Handling: Designed to manage high voltage levels up to 600V and high current, making it suitable for heavy-duty power applications.

2. Low On-Resistance (Rds(on)): Minimizes voltage drops across the MOSFET when it's on, enhancing the overall efficiency of the system.

3. Fast Switching: Capable of turning on and off rapidly, which is crucial for applications that require quick power modulation.

Example Circuit Design - Power Management in an LED Lighting System Using STP26NM60N:

Detailed Circuit Connection Guide:

1. LED Power Regulation:

- Power Channel (Drain Pin - Pin 2): Connect the drain of STP26NM60N to the positive terminal of the LED array. The drain is responsible for carrying the high current to the LEDs.

- Signal Modulation (Gate Pin - Pin 1): Connect the gate of STP26NM60N to a PWM signal source, like a microcontroller. This pin modulates the power to the LEDs, controlling brightness and reducing power consumption.

- Ground Connection (Source Pin - Pin 3): Connect the source of STP26NM60N to the system ground. This pin completes the circuit for the current flowing through the LED array.

2. Gate Drive Considerations:

- Gate Resistor (Series with Gate Pin): Place a resistor in series with the gate to limit the inrush current. This protects the gate oxide layer and ensures a smooth operation.

- Flyback Diode (Across LED Array): Place a diode in parallel with the LED array (anode to the source and cathode to the drain of STP26NM60N). This diode protects STP26NM60N from potential voltage spikes caused by the inductive nature of the LED array.

3. Heat Management:

- Cooling Mechanism (On the MOSFET): If STP26NM60N is expected to dissipate significant heat, attach a heat sink to its body. For dependable operation and to avoid overheating, effective heat management is crucial.

Considerations for Circuit Design:

1. Proper Gate Drive: Ensure that the gate drive voltage is adequate to fully turn on the STP26NM60N but does not exceed its maximum gate-source voltage rating.

2. Switching Frequency: Determine the appropriate switching frequency for your application. High frequencies can improve efficiency but may also increase heat dissipation.

3. Thermal Management: Consider the power dissipation and ensure adequate cooling for STP26NM60N, especially in high-power applications.

4. Protective Measures: To protect the STP26NM60N and the system as a whole, put safety features including over-current, over-voltage, and thermal shutdown mechanisms into place.

In conclusion, the STP26NM60N power MOSFET is a versatile component suitable for various high-power applications, especially in LED lighting systems where efficient power management is crucial. When designing circuits with STP26NM60N, it's essential to focus on gate drive requirements, switching speed, thermal management, and protective measures to ensure optimal performance and reliability. Proper application of STP26NM60N can significantly enhance the efficiency and longevity of power electronics systems.
