What is the Additional Feature ?

Name: STL210N4F7AG
Brand: STMicroelectronics
SKU: STL210N4F7AG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STL210N4F7AG

Part No.:: STL210N4F7AG

Manufacturer:: STMicroelectronics

Package:: PowerFlat™ (5x6)

Datasheet:: STL210N4F7AG.pdf

Description:: MOSFET N-CH 40V 120A POWERFLAT

In Stock:: 3827

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STL210N4F7AG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, STripFET™ F7
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
120A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
1.6mOhm @ 16A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
43 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3600 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
150W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

STL210N4F7AG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STL210N4F7AG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STL210N4F7AG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STL210N4F7AG information

Views：

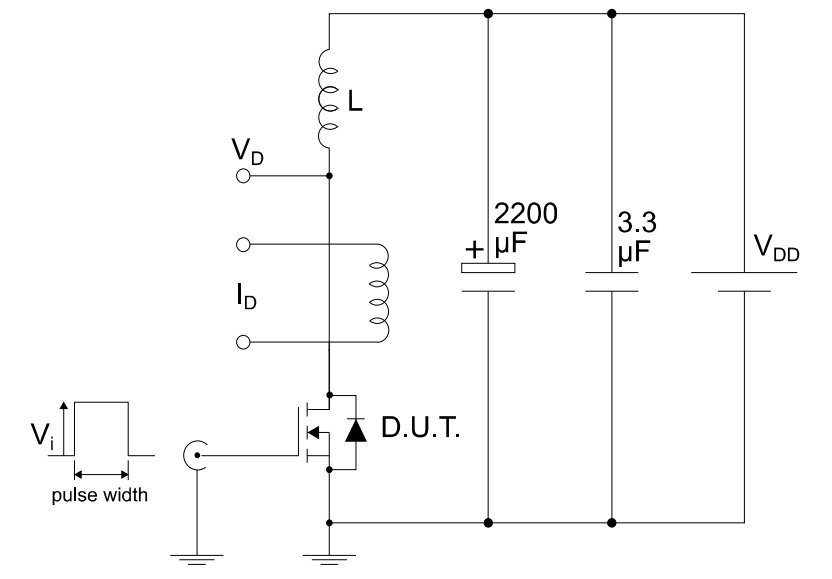

STL210N4F7AG Typical application Circuitry

STL210N4F7AG

An N-Channel Power MOSFET semiconductor device is the STL210N4F7AG. With its improved trench gate structure and STripFETTM F7 technology, it has extremely low on-state resistance. Applications involving power switching are intended for this MOSFET.

Application Scenarios

STL210N4F7AG finds applications in various scenarios, including:

1. Power Supplies: It can be used to switch and control power in DC-DC converters and voltage regulators.

2. Motor Control: In motor control circuits, it helps manage the direction and speed of motors, commonly used in robotics and industrial automation.

3. LED Drivers: For regulating current in LED driver circuits, ensuring efficient illumination.

Parameter Characteristics

Key parameter characteristics of STL210N4F7AG include:

- Voltage Rating: It typically handles up to 40 volts.

- Current Handling Capacity: With a high current rating, it's suitable for power applications.

- On-State Resistance (RDS(on)): This parameter affects conduction losses and efficiency.

- Gate Threshold Voltage (Vth): Essential for proper gate drive voltage selection.

- Gate Capacitance (Ciss, Coss, Crss): These capacitive values impact switching performance.

Application Circuit - DC-DC Converter

Using the STL210N4F7AG DC-DC converter, the following application notes:

1. Power Supply: Attach the power supply's positive terminal to the drain (D) pin, such as pin 1. Attach the negative terminal to pin 2, which is the source (S) pin.

2. Load: Connect the load (e.g., resistive or inductive) between the source (S) pin and ground.

3. Gate Drive: Apply a voltage to the gate (G) pin (e.g., pin 3) through a gate resistor to control MOSFET switching. Ensure the gate-source voltage exceeds the threshold (Vth).

4. Feedback: Implement feedback control to regulate the output voltage. This may involve additional components like op-amps and voltage dividers.

5. Protection: Incorporate overcurrent and overvoltage protection mechanisms to safeguard the circuit.

Design Considerations

When designing circuits with STL210N4F7AG, consider these factors:

- Gate Drive Voltage: Ensure the gate voltage meets or exceeds Vth.

- Heat Dissipation: Calculate power dissipation and use appropriate heatsinking.

- Switching Speed: Optimize gate resistor for desired switching frequency.

- Protection: Implement fault protection to prevent damage to the MOSFET and load.

In conclusion, STL210N4F7AG is a versatile MOSFET for power switching applications, demanding careful consideration of parameters and circuit design for efficient and reliable operation.
