What is the Additional Feature ?

Name: STH315N10F7-6
Brand: STMicroelectronics
SKU: STH315N10F7-6
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

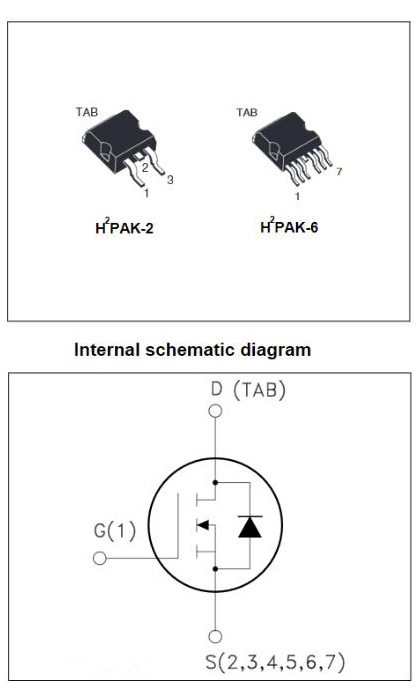

lmages are for reference only See Product Specifications

STMicroelectronics STH315N10F7-6

Part No.:: STH315N10F7-6

Manufacturer:: STMicroelectronics

Package:: H2PAK-6

Datasheet:: STH315N10F7-6.pdf

Description:: MOSFET N-CH 100V 180A H2PAK-6

In Stock:: 2207

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STH315N10F7-6 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, DeepGATE™, STripFET™ VII
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
180A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
2.3mOhm @ 60A, 10V
Vgs(th)(Max)@Id:
4.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
180 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
12800 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
315W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

STH315N10F7-6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STH315N10F7-6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STH315N10F7-6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STH315N10F7-6 information

Views：

STH315N10F7-6 Typical application Circuitry

STH315N10F7-6

STH315N10F7-6 is a Power MOSFET developed by STMicroelectronics, which is designed to perform fast switching with low on-resistance. These capabilities make them an ideal component in a variety of applications.

Notable Characteristics of STH315N10F7-6: Key features of the STH315N10F7-6 include an impressive drain-to-source voltage of 100V, which provides high endurance against high voltage scenarios. The device also boasts low on-resistance, which translates to minimal power loss while operating. Other significant parameters include a gate charge of 82nC and a continuous drain current of 120A.

Areas of Application: The STH315N10F7-6 is primarily used in high-speed switching applications, such as DC-DC converters, motor drives, and power management in automotive, industrial, and consumer electronics.

Circuit Connection in a DC-DC Converter

Let's look at a typical application of STH315N10F7-6 in a DC-DC converter:

1. Drain Connection: Connect the drain pin (Pin 2) of the STH315N10F7-6 to the output inductor of the DC-DC converter. Current will flow through the inductor when the MOSFET is turned on, storing energy in its magnetic field.

2. Source Connection: The source pin (Pin 3) of the STH315N10F7-6 should be connected to the ground reference of the circuit.

3. Gate Connection: The gate pin (Pin 1) of the STH315N10F7-6 should be connected to the output of a pulse-width modulation (PWM) controller. This controller is responsible for switching the MOSFET on and off, thus controlling the operation of the DC-DC converter.

4. DC-DC Converter Operation: The converter operates by adjusting the duty cycle of the PWM signal, which in turn controls the amount of energy transferred to the output. By doing this, the DC input voltage is effectively changed to a separate DC output voltage.

Design Considerations

When using STH315N10F7-6 in a circuit design, there are a few critical considerations:

- Heat Dissipation: Given its high-power handling capability, the STH315N10F7-6 can generate substantial heat during operation. Hence, proper heat dissipation methods such as using heat sinks or thermal vias should be implemented.

- Gate-Source Voltage: It's vital to ensure the gate-source voltage stays within the specified limits to avoid damaging the device. The maximum Vgs for STH315N10F7-6 is ±20V.

- Drain Current: The STH315N10F7-6 has a maximum continuous drain current of 120A, which should not be exceeded in the application.

In essence, the STH315N10F7-6 is a highly useful MOSFET that's suitable for an array of high-speed switching applications. By considering its operational parameters and heat management, designers can harness its full potential effectively and efficiently.
