STMicroelectronics STF140N6F7

Part No.:: STF140N6F7

Manufacturer:: STMicroelectronics

Package:: TO-220FP

Datasheet:: STF140N6F7.pdf

Description:: MOSFET N-CH 60V 70A TO220FP

In Stock:: 594

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STF140N6F7 Specifications

Packaging:
Tube
Series:
STripFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
70A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
3.5mOhm @ 35A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
55 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3100 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
33W (Tc)
OperatingTemperature:
175°C (TJ)
MountingType:
Through Hole

STF140N6F7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STF140N6F7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STF140N6F7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STF140N6F7 information

Views：

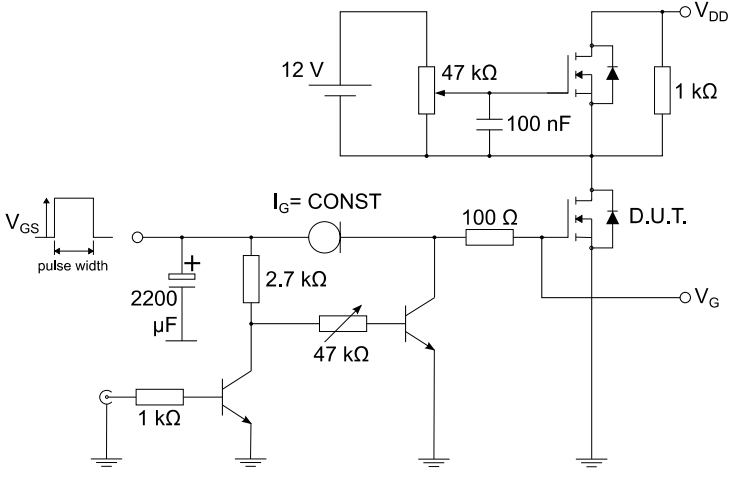

STF140N6F7 Typical application Circuitry

STF140N6F7

The STF140N6F7 is an N-channel power MOSFET designed for various high-performance switching applications. It offers low conduction losses and efficient power handling.

Key Features of STF140N6F7:

1. N-Channel Enhancement Mode: This MOSFET is an N-channel type, suitable for low-side switching applications.

2. Low On-Resistance (RDS(ON)): With a low RDS(ON), it minimizes conduction losses and ensures efficient power handling.

3. High Current Capability: It can handle high continuous and pulsed currents, making it versatile for power applications.

4. Low Gate Threshold Voltage (VGS(th)): The low VGS(th) allows for easy interfacing with logic-level control signals.

5. Fast Switching Speed: Its fast switching characteristics reduce switching losses, crucial for high-frequency applications.

6. TO-220 Package: The TO-220 package provides good thermal performance and ease of mounting on heatsinks.

Example Application: High-Current LED Driver

Let's explore a common application scenario for the STF140N6F7: designing a high-current LED driver circuit.

Circuit Connection:

1. STF140N6F7 Pin 1 (Gate): Connect this pin to the gate driver circuitry, which generates the gate voltage to control the MOSFET.

2. STF140N6F7 Pin 2 (Drain): Connect this pin to the positive terminal of the LED load.

3. STF140N6F7 Pin 3 (Source): Connect this pin to the negative terminal of the LED load.

4. TO-220 Package Tab: The tab of the TO-220 package can be attached to a heatsink for thermal dissipation, especially if the MOSFET is used in high-power LED driver applications.

Design Considerations:

1. Gate Voltage: Ensure that the gate voltage applied to Pin 1 is sufficient to fully turn on the MOSFET. Typically, you need a voltage higher than the gate threshold voltage (VGS(th)).

2. Gate Resistor: Include a gate resistor to dampen ringing and control the switching speed.

3. Input Voltage and Current: Ensure that the MOSFET can handle the maximum voltage and current of your LED load.

4. Current Limiting: Implement current-limiting mechanisms to protect the LEDs from excessive current.

5. Efficiency: Optimize the circuit for high efficiency to minimize power losses.

6. Temperature Management: Monitor the temperature of the MOSFET during LED operation. Adequate heatsinking may be required to prevent overheating.

7. Dimming Control: If necessary, include a dimming control circuit to adjust the LED brightness.

In summary, the STF140N6F7 is a robust MOSFET suitable for various power applications, including high-current LED driver circuits. When designing a circuit with this MOSFET, pay close attention to gate voltage, gate resistor, input voltage, current limiting, efficiency, temperature management, and dimming control to ensure proper and reliable LED driving in your specific application.
