STMicroelectronics STF13NM60ND

Part No.:: STF13NM60ND

Manufacturer:: STMicroelectronics

Package:: TO-220FP

Datasheet:: STF13NM60ND.pdf

Description:: MOSFET N-CH 600V 11A TO220FP

In Stock:: 118

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STF13NM60ND Specifications

Packaging:
Tube
Series:
FDmesh™ II
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
600 V
Current-ContinuousDrain(Id)@25°C:
11A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
380mOhm @ 5.5A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
24.5 nC @ 10 V
Vgs(Max):
±25V
InputCapacitance(Ciss)(Max)@Vds:
845 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
25W (Tc)
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole

STF13NM60ND this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STF13NM60ND price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STF13NM60ND to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STF13NM60ND information

Views：

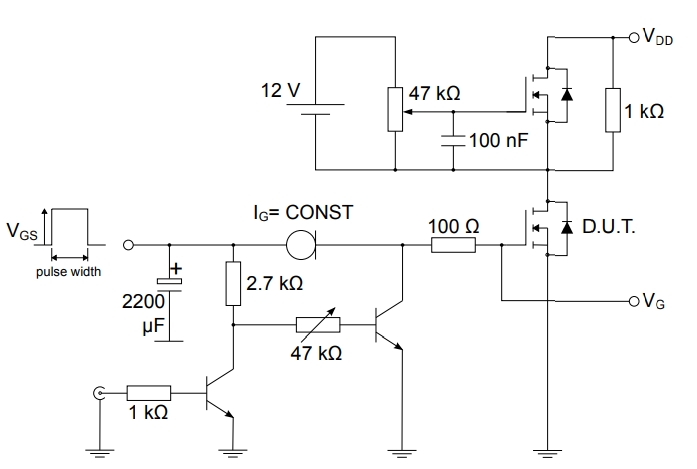

STF13NM60ND Typical application Circuitry

STF13NM60ND

The STF13NM60ND is a robust power MOSFET developed by STMicroelectronics, designed primarily for efficient power management and conversion in various electronic applications. Its features make it suitable for high voltage and current operations, with an emphasis on energy efficiency and reliability.

Application Scenarios of STF13NM60ND:

1. Switching Power Supplies: Commonly used in the active components of switching regulators, offering efficient voltage conversion for consumer electronics.

2. Motor Drives: Utilized in motor control circuits for industrial automation, providing precise control over motor operation with high efficiency.

3. Lighting Systems: Implemented in LED drivers and electronic ballasts for lighting systems, ensuring efficient power management and longer life for the lighting components.

Key Features:

1. High Voltage Tolerance: Designed to handle high voltage operations, making it suitable for applications that involve high power levels.

2. Low On-Resistance (Rds(on)): Ensures minimal power loss during the 'on' state, contributing to overall energy efficiency.

3. Fast Switching Speed: Capable of rapid transitions between on and off states, minimizing energy losses during switching and enhancing performance in high-frequency applications.

Example Circuit Design - Motor Control in Industrial Automation Using STF13NM60ND:

Detailed Circuit Connection Guide:

1. Motor Drive Control:

- Power Handling (Drain Pin - D): Connect the drain of STF13NM60ND to the motor's positive terminal. This pin will manage the high current flow to the motor.

- Control Activation (Gate Pin - G): Connect the gate of STF13NM60ND to the control circuit output (like a PWM signal from a microcontroller). This pin will regulate the on/off state of STF13NM60ND, controlling the motor's operation.

- Return Path (Source Pin - S): Connect the source of STF13NM60ND to the ground. This pin acts as the reference point for the gate and is the return path for the motor current.

2. Gate Drive Considerations:

- Gate Resistance (Rg - Series with Gate Pin): Insert a resistor in series with the gate to control the gate charge and protect the device from excessive inrush current.

- Freewheeling Diode (Df - Across Motor Terminals): Connect a diode in parallel with the motor (anode to the source and cathode to the drain of STF13NM60ND). This diode will protect STF13NM60ND from potential back EMF generated by the motor.

3. Thermal Management:

- Cooling Measures (On MOSFET): If STF13NM60ND is expected to dissipate significant heat, incorporate a heat sink or other cooling methods. Proper thermal management is vital to ensure reliable operation and prevent thermal runaway.

Circuit Design Considerations:

1. Gate Drive Voltage: Ensure the gate drive voltage properly turns on the STF13NM60ND without exceeding its maximum gate-source voltage rating.

2. Switching Characteristics: Evaluate the switching frequency and ensure that the STF13NM60ND can handle the required switching speed without excessive losses or heat generation.

3. Thermal Considerations: Monitor the thermal performance closely, especially in high-power applications, and provide adequate heat dissipation methods.

4. Protection Schemes: Implement overcurrent, overvoltage, and thermal protection circuits to ensure the safe operation of STF13NM60ND and the overall system.

In conclusion, the STF13NM60ND power MOSFET is an effective solution for various high-power applications, especially in motor control for industrial automation. Attention to gate drive requirements, switching characteristics, thermal management, and protective measures is crucial when designing circuits with STF13NM60ND. Proper application of STF13NM60ND can significantly improve the efficiency, performance, and reliability of power electronics systems.
