Name: STD70N10F4
Brand: STMicroelectronics
SKU: STD70N10F4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STD70N10F4

Part No.:: STD70N10F4

Manufacturer:: STMicroelectronics

Package:: DPAK

Datasheet:: STD70N10F4.pdf

Description:: MOSFET N-CH 100V 60A DPAK

In Stock:: 2987

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STD70N10F4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
DeepGATE™, STripFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
60A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
19.5mOhm @ 30A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
85 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5800 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
125W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

STD70N10F4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STD70N10F4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STD70N10F4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STD70N10F4 information

Views：

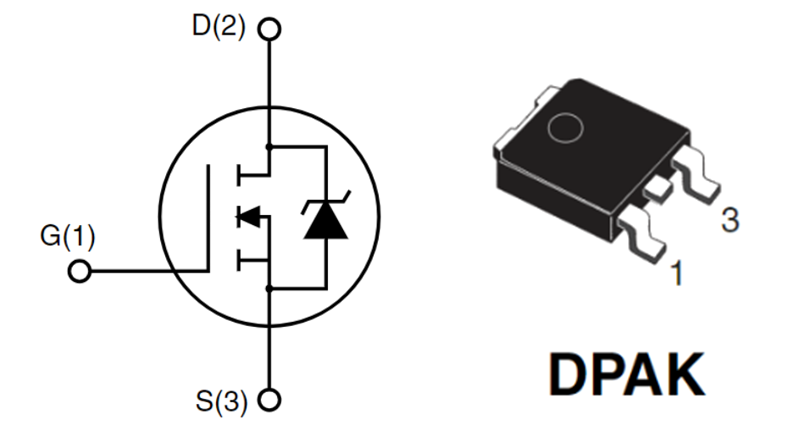

STD70N10F4 Typical application Circuitry

The STD70N10F4 is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) device manufactured by STMicroelectronics. MOSFETs are widely used in electronics for their high speed and ease of use in both analog and digital circuits.

Notable features of the STD70N10F4:

1. Voltage and Current Ratings: It is rated for a continuous drain current of 70A and a 100V drain to source voltage. This indicates its capability to handle high power operations.

2. Package Type: The STD70N10F4 comes in a DPAK (TO-252) package. This kind of package is widely used for its heat-dissipating properties and surface-mounting convenience.

3. Power Dissipation: It has a power dissipation of 35W which means it can handle a substantial amount of power without overheating.

4. Type of MOSFET: This MOSFET has an N-Channel. The N-Channel refers to the type of charge carrier that is responsible for current flow in the device.

Typical Applications:

The STD70N10F4 finds extensive use in power conversion applications including DC-DC converters, motor control in power tools, automotive applications, and switch-mode power supplies. Circuit Connection Example (Motor Control):

1. Source Pin Connection: The source pin (pin 2) is usually connected to the ground. This is the reference point for the majority of circuit measurements and is thought to have zero voltage.

2. Drain Pin Connection: Connect the drain pin (pin 3) to the load, which could be a motor in this case. When the MOSFET is turned on, current flows from the drain to the source.

3. Gate Pin Control: The gate pin (pin 1) is where you apply voltage to control the switching of the MOSFET. The MOSFET's ability to conduct depends on the voltage that is delivered to its gate. For the STD70N10F4, a positive voltage at the gate (relative to the source) will cause the MOSFET to conduct.

When designing a circuit involving the STD70N10F4, one needs to consider several aspects:

1. Voltage Ratings: Ensure that the device is not exposed to voltages exceeding its specified maximum ratings, as this can cause device failure.

2. Thermal Management: MOSFETs generate heat during operation, and this heat must be managed effectively to prevent device failure. This might include heat sinks or other cooling mechanisms.

3. Protection Features: Depending on the application, you may need to include protection features such as a flyback diode for inductive loads.

4. Gate Drive Circuit: The design of the gate drive circuit is essential in ensuring the MOSFET operates correctly. The gate capacitance must be adequately charged and discharged for the device to turn on and off correctly.

In conclusion, the STD70N10F4 is a robust and reliable component suitable for high power applications requiring efficient switching operations.

STD70N10F4 FAQ

1. How to order STD70N10F4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that STD70N10F4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the STD70N10F4. All suppliers must pass our qualification reviews before they can publish their products including STD70N10F4 on icwhale.com; we pay more attention to the channels and quality of STD70N10F4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the STD70N10F4 price and inventory displayed accurate?

The price and inventory of STD70N10F4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of STD70N10F4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the STD70N10F4 we delivered, we will accept the replacement or return of the STD70N10F4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of STD70N10F4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
