STMicroelectronics STD6N95K5

Part No.:: STD6N95K5

Manufacturer:: STMicroelectronics

Package:: DPAK

Datasheet:: STD6N95K5.pdf

Description:: MOSFET N-CH 950V 9A DPAK

In Stock:: 3386

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STD6N95K5 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SuperMESH5™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
950 V
Current-ContinuousDrain(Id)@25°C:
9A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
1.25Ohm @ 3A, 10V
Vgs(th)(Max)@Id:
5V @ 100µA
GateCharge(Qg)(Max)@Vgs:
13 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
450 pF @ 100 V
FETFeature:
-
PowerDissipation(Max):
90W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

STD6N95K5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STD6N95K5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STD6N95K5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STD6N95K5 information

Views：

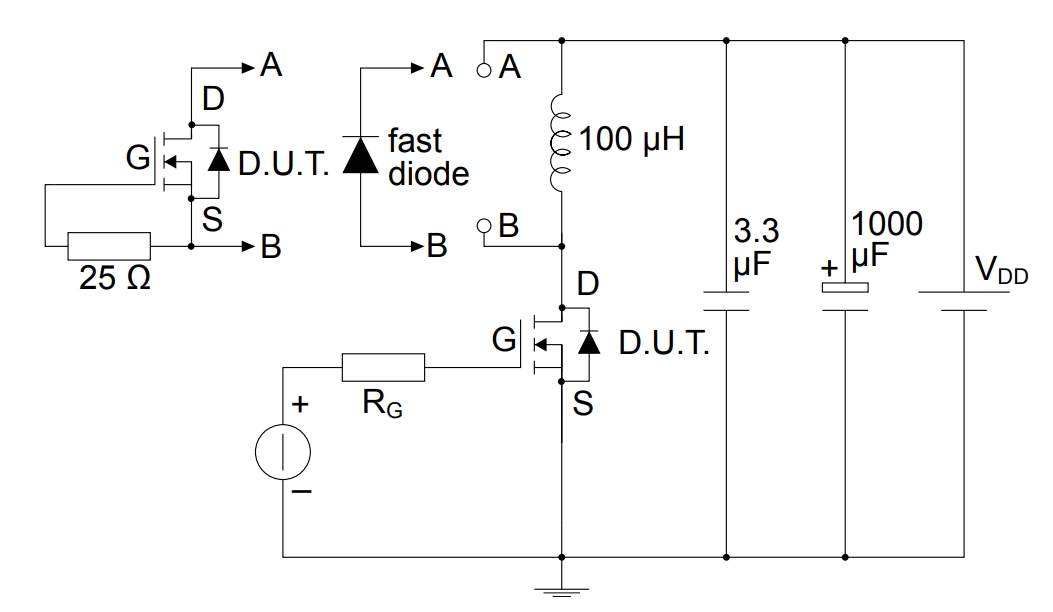

STD6N95K5 Typical application Circuitry

STD6N95K5

The STD6N95K5 is a high-performance Power MOSFET developed by STMicroelectronics. This N-channel MOSFET is known for its high efficiency in power conversion and management, making it an integral part of electronic circuits where power handling and efficiency are critical.

Application Scenarios of STD6N95K5:

1. Power Supply Units (PSUs): Frequently used in the rectification and regulation stages to ensure stable and efficient power supply.

2. LED Lighting: Utilized in LED driving circuits to manage power effectively, ensuring optimal performance and longevity of the LEDs.

3. Motor Control Systems: Implemented in motor drivers for precise control in applications such as robotics and industrial automation.

Key Features:

1. High Voltage and Current Handling: Capable of managing significant voltages and currents, making it suitable for various power-intensive applications.

2. Low On-Resistance (Rds(on)): Minimizes voltage drops across the MOSFET when it's conducting, thereby improving efficiency.

3. Fast Switching: Supports rapid transitions between on and off states, reducing energy losses during switching and improving overall efficiency.

Example Circuit Design - Motor Control in Robotics Using STD6N95K5:

Detailed Circuit Connection Guide:

1. Motor Drive Configuration:

- Power Path (Drain Pin - D): Connect the drain of STD6N95K5 to the positive terminal of the motor. This pin is responsible for handling the high current flowing to the motor.

- Control Gateway (Gate Pin - G): Connect the gate of STD6N95K5 to the output of the control circuit (e.g., a PWM signal from a microcontroller). This pin regulates the on/off state of STD6N95K5, controlling the motor's speed and torque.

- Reference Ground (Source Pin - S): Connect the source of STD6N95K5 to the ground. This pin serves as the reference point for the gate and is the return path for the motor current.

2. Gate Drive Considerations:

- Gate Resistor (Rg - Series with Gate Pin): Place a resistor in series with the gate to limit the inrush current. This ensures controlled charging and discharging of the gate capacitance, preventing damage to the transistor and ensuring smooth operation.

- Flyback Diode (Df - Across Motor Terminals): Connect a diode in parallel with the motor (anode to the source and cathode to the drain of STD6N95K5). This diode protects STD6N95K5 from voltage spikes caused by the inductive load of the motor.

3. Heat Management:

- Heat Sink Attachment (On the MOSFET): If STD6N95K5 is expected to dissipate significant heat, attach a heat sink to its body. Efficient thermal management is crucial to prevent overheating and ensure reliable operation.

Circuit Design Considerations:

1. Gate Drive Voltage: Ensure the gate drive voltage is adequate to fully turn on the STD6N95K5 but does not exceed the maximum gate-source voltage rating.

2. Switching Speed: Consider the switching speed requirements of your application. Fast switching can improve efficiency but may introduce more EMI.

3. Thermal Management: Account for power dissipation in STD6N95K5 and ensure adequate cooling to maintain a safe operating temperature.

4. Protection Features: Implement protection mechanisms such as over-current protection, over-voltage protection, and thermal shutdown as necessary.

In conclusion, the STD6N95K5 power MOSFET is a versatile and efficient component suitable for a wide range of high-power applications, particularly in motor control systems for robotics. When designing circuits with STD6N95K5, attention to gate drive requirements, switching speed, thermal management, and protection mechanisms is crucial to ensure optimal performance and reliability. Proper application of STD6N95K5 can significantly enhance the efficiency and robustness of power electronics systems.
