What is the Additional Feature ?

Name: STD105N10F7AG
Brand: STMicroelectronics
SKU: STD105N10F7AG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STD105N10F7AG

Part No.:: STD105N10F7AG

Manufacturer:: STMicroelectronics

Package:: DPAK

Datasheet:: STD105N10F7AG.pdf

Description:: MOSFET N-CH 100V 80A DPAK

In Stock:: 3170

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STD105N10F7AG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, STripFET™ F7
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
80A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
8mOhm @ 40A, 10V
Vgs(th)(Max)@Id:
4.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
61 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4369 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
120W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

STD105N10F7AG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STD105N10F7AG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STD105N10F7AG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STD105N10F7AG information

Views：

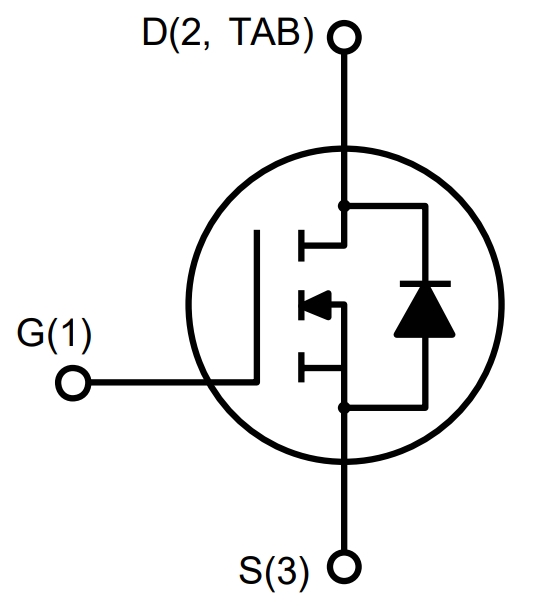

STD105N10F7AG Typical application Circuitry

STD105N10F7AG

An electrical signal can be switched on and amplified in a variety of electronic circuits using the STD105N10F7AG power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). Applications involving switching and power management frequently use it. A circuit design scenario utilizing the STD105N10F7AG, along with its salient features, is provided below.

Principal characteristics of STD105N10F7AG:

1. N-Channel Enhancement Mode: This N-channel MOSFET is commonly employed in low-side switching scenarios.

2. A Low RDS(ON) Resistance: When switching, the MOSFET's low on-resistance helps to reduce heat production and power losses.

3. Excellent Current Management: It is appropriate for power-switching applications because of its ability to manage comparatively high current levels.

4. Down Gate Threshold Voltage (VGS(th)): Standard logic-level signals can be easily controlled thanks to the low gate threshold voltage.

5. Fast Switching Speed: It has a fast switching speed, reducing switching losses in high-frequency applications.

6. TO-252 Package: This package is simple to attach and has good thermal performance.

Example Application: Motor Control Circuit

Let's explore a common application scenario for the STD105N10F7AG: designing a motor control circuit.

Circuit Connection:

1. STD105N10F7AG Pin 1 (Gate): Connect this pin to the microcontroller or driver circuit that controls the MOSFET's gate voltage. This pin allows you to turn the MOSFET on and off.

2. STD105N10F7AG Pin 2 (Drain): Connect this pin to one terminal of the motor.

3. STD105N10F7AG Pin 3 (Source): Connect this pin to the ground (0V) or the negative terminal of the power supply.

4. STD105N10F7AG (TO-252 Tab): The tab of the TO-252 package is often connected to the Drain terminal and can be attached to a heatsink for thermal dissipation, especially if the MOSFET is used in high-power applications.

Design Considerations:

1. Gate Voltage: Ensure that the gate voltage applied to Pin 1 is sufficient to fully turn on the MOSFET. Typically, you need a voltage higher than the gate threshold voltage (VGS(th)).

2. Gate Resistor: Include a gate resistor in series with the gate to limit current during switching and prevent excessive ringing.

3. Flyback Diode (if using an inductive load): If driving an inductive load like a motor, include a flyback diode (freewheeling diode) in parallel with the motor to protect against voltage spikes.

4. Motor Current: Ensure that the MOSFET can handle the maximum current that the motor draws during operation.

5. Voltage Ratings: Ensure that the voltage across the Drain and Source pins (VDS) does not exceed the MOSFET's maximum rating.

6. Thermal Management: Monitor the temperature of the MOSFET during operation, especially in high-power applications. Adequate heatsinking may be required to prevent overheating.

7. Protection Circuitry: Consider including overcurrent protection and motor control feedback mechanisms to ensure safe and efficient motor operation.

8. EMI/RFI Considerations: Implement filtering and shielding if required to reduce electromagnetic interference and radio-frequency interference.

In summary, the STD105N10F7AG is a versatile MOSFET often used in motor control and power switching applications. When designing a circuit with this MOSFET, it is crucial to address gate voltage, gate resistor, flyback diode, motor current, voltage ratings, thermal management, protection circuitry, and EMI/RFI considerations to ensure proper and reliable operation in your specific application.

STD105N10F7AG FAQ

1. How to order STD105N10F7AG on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that STD105N10F7AG is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the STD105N10F7AG. All suppliers must pass our qualification reviews before they can publish their products including STD105N10F7AG on icwhale.com; we pay more attention to the channels and quality of STD105N10F7AG products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the STD105N10F7AG price and inventory displayed accurate?

The price and inventory of STD105N10F7AG fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of STD105N10F7AG?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the STD105N10F7AG we delivered, we will accept the replacement or return of the STD105N10F7AG only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of STD105N10F7AG.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
