Vishay Siliconix SQJ409EP-T1_GE3

Part No.:: SQJ409EP-T1_GE3

Manufacturer:: Vishay Siliconix

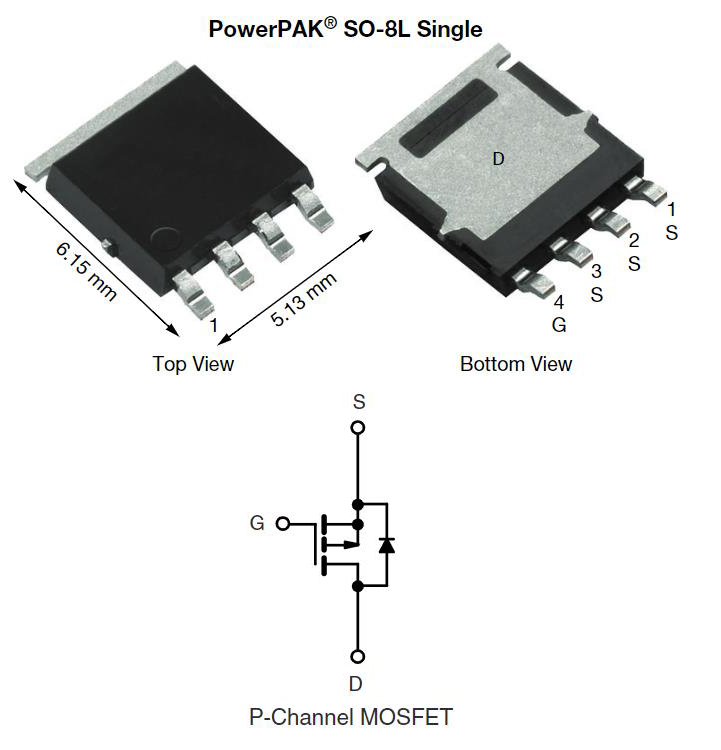

Package:: PowerPAK® SO-8

Datasheet:: SQJ409EP-T1_GE3.pdf

Description:: MOSFET P-CH 40V 60A PPAK SO-8

In Stock:: 3730

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SQJ409EP-T1_GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, TrenchFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
60A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
7mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
260 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
11000 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
68W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

SQJ409EP-T1_GE3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SQJ409EP-T1_GE3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SQJ409EP-T1_GE3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SQJ409EP-T1_GE3 information

Views：

SQJ409EP-T1_GE3 Typical application Circuitry

The SQJ409EP-T1_GE3 is a P-Channel 40-V (D-S) MOSFET developed by Vishay Siliconix. It is a metal-oxide-semiconductor field-effect transistor (MOSFET) that is voltage-controlled and mostly utilized for amplification or switching of electrical signals.

Key Features of SQJ409EP-T1_GE3: The SQJ409EP-T1_GE3 boasts several compelling features. It can handle continuous drain currents up to -20 A and pulsed drain currents up to -80 A, making it robust for various power applications. The MOSFET also operates at a low threshold voltage of -1.2 V to -2.8 V and exhibits a maximum drain-source resistance of 13.5 mOhm when fully activated. Reduced power loss and increased efficiency are the results of its relatively low on-resistance.

Application Scenarios: The SQJ409EP-T1_GE3 MOSFET finds extensive use in power management applications, including load switches, power supplies, motor control, and more, especially where high-speed switching and energy efficiency are required.

Circuit Design

Let's examine the SQJ409EP-T1_GE3 used as a high-side load switch:

1. Source Terminal: The source terminal of the SQJ409EP-T1_GE3 (pin 3) should be connected to the positive power supply rail.

2. Drain Terminal: The drain terminal (pin 2) should be connected to the load. This could be a DC motor, LED array, or anything else that requires a power switch.

3. Gate Terminal: The gate terminal (pin 1) controls the switch. When a voltage level near the power supply voltage is applied to the gate, the SQJ409EP-T1_GE3 switches off. The MOSFET turns on when the gate voltage is quite close to the ground.

4. Load Switching: To activate the load, a low voltage (near ground) is applied to the gate. To deactivate the load, a voltage near the supply voltage is applied.

Design Considerations

Designing circuits with SQJ409EP-T1_GE3 requires special attention:

- Gate Voltage: Ensure that the gate voltage does not exceed the maximum ±20 V to prevent damaging the gate oxide layer.

- Heat Dissipation: Just like with any power component, the SQJ409EP-T1_GE3 can generate heat under operation. Adequate cooling mechanisms should be in place.

- ESD Protection: MOSFETs are sensitive to electrostatic discharge (ESD). ESD damage should be prevented using precautions.

In conclusion, the SQJ409EP-T1_GE3 is a potent P-Channel MOSFET with diverse applications in power management and beyond. Given its performance characteristics, it's critical to observe proper design rules to fully exploit its potential and ensure its longevity.
