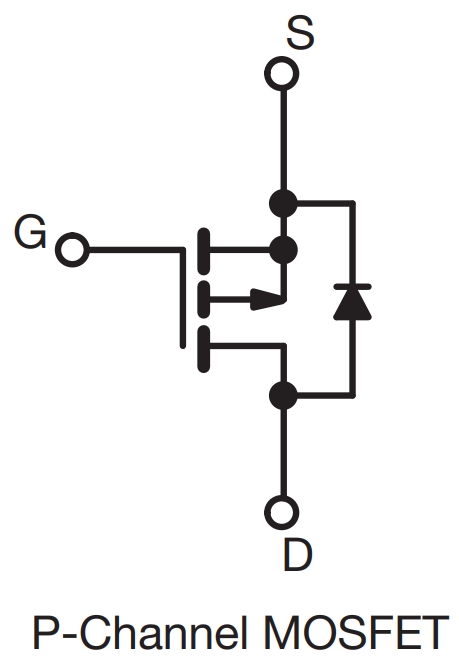

Vishay Siliconix SISS71DN-T1-GE3

Part No.:: SISS71DN-T1-GE3

Manufacturer:: Vishay Siliconix

Package:: PowerPAK® 1212-8S

Datasheet:: SISS71DN-T1-GE3.pdf

Description:: MOSFET P-CH 100V 23A PPAK1212-8S

In Stock:: 2566

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SISS71DN-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ThunderFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
23A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
59mOhm @ 5A, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
15 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1050 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
57W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
