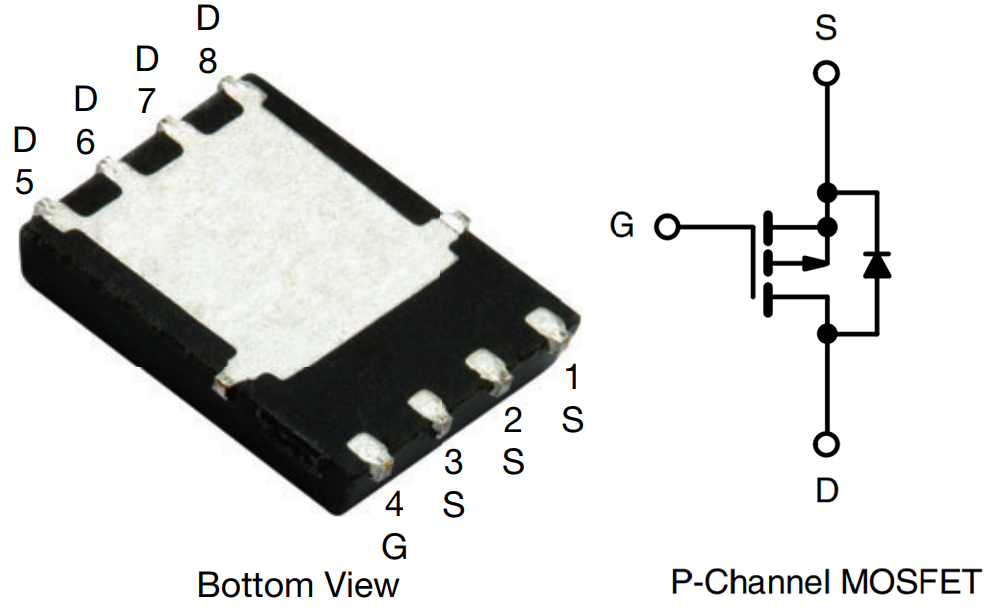

Vishay Siliconix SIR873DP-T1-GE3

Part No.:: SIR873DP-T1-GE3

Manufacturer:: Vishay Siliconix

Package:: PowerPAK® SO-8

Datasheet:: SIR873DP-T1-GE3.pdf

Description:: MOSFET P-CH 150V 37A PPAK SO-8

In Stock:: 2970

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SIR873DP-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TrenchFET® Gen IV
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
37A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
47.5mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
48 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1805 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
104W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
