Vishay Siliconix SI2319CDS-T1-GE3

Part No.:: SI2319CDS-T1-GE3

Manufacturer:: Vishay Siliconix

Package:: SOT-23-3 (TO-236)

Datasheet:: SI2319CDS-T1-GE3.pdf

Description:: MOSFET P-CH 40V 4.4A SOT23-3

In Stock:: 2913

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SI2319CDS-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TrenchFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
4.4A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
77mOhm @ 3.1A, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
21 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
595 pF @ 20 V
FETFeature:
-
PowerDissipation(Max):
1.25W (Ta), 2.5W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SI2319CDS-T1-GE3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SI2319CDS-T1-GE3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SI2319CDS-T1-GE3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SI2319CDS-T1-GE3 information

Views：

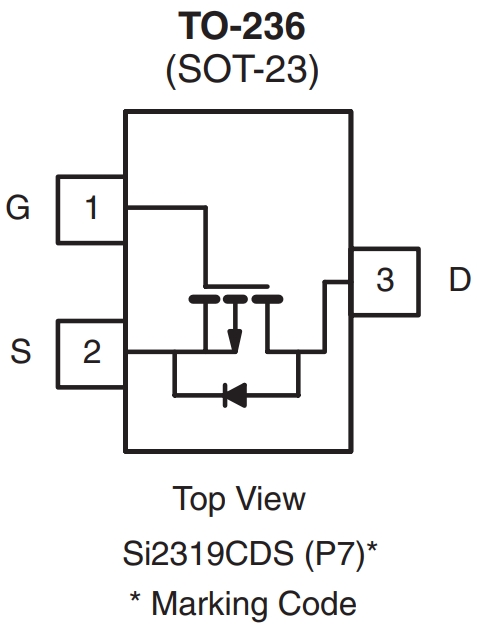

SI2319CDS-T1-GE3 Typical application Circuitry

SI2319CDS-T1-GE3

The SI2319CDS-T1-GE3 is a discrete semiconductor product by Vishay Siliconix, specifically a P-channel power MOSFET. It is designed for surface mounting with a SOT-23-3 (TO-236) package. This MOSFET is capable of handling a drain to source voltage (Vdss) of 40V and offers a continuous drain current (Id) at 25°C. The device features a maximum Rds (on-resistance) of 77mOhm at 3.1A and 10V, and the gate-source threshold voltage (Vgs(th)) is 2.5V at 250µA. Its maximum gate charge (Qg) is 21 nC at 10 V. The power dissipation for this MOSFET is 1.25W (Ta) and 2.5W (Tc), and it operates within a temperature range of -55°C to 150°C.

Application Scenario: Power Switching Circuit

Circuit Design:

The SI2319CDS-T1-GE3 can be effectively used in a power switching circuit. This application typically involves controlling the flow of power to a load, such as a motor or an LED array.

1. Power Source:

- The MOSFET can be connected to a DC power source, with the voltage rating not exceeding the Vdss of 40V.

2. Load Connection:

- The load (e.g., a motor) should be connected between the power source and the drain of the MOSFET.

3. Gate Control:

- A gate driving circuit or a microcontroller can be connected to the gate of the MOSFET to control its on and off states. The gate voltage should be carefully managed to not exceed the maximum Vgs of ±20V.

4. Source Pin:

- The source pin of the MOSFET should be connected to the ground.

5. Heat Management:

- Given the power dissipation ratings (1.25W at ambient temperature and 2.5W at case temperature), appropriate heat sinking or cooling mechanisms should be considered, especially in high-power applications.

6. Protection:

- Implement protection mechanisms like a flyback diode across the load, especially for inductive loads, to prevent voltage spikes that might damage the MOSFET.

7. Signal Isolation:

- If controlled by a microcontroller or any sensitive electronics, opto-isolators or similar isolation techniques should be used to protect the control circuitry from any power spikes or noise from the power circuit.

Design Considerations:

When designing with the SI2319CDS-T1-GE3, several factors must be considered:

- Voltage and Current Ratings: Ensure that the applied voltages and currents are within the specified limits of the MOSFET.

- Thermal Management: Adequate heat sinking is crucial for reliability, especially under high power dissipation scenarios.

- Gate Drive Requirements: Appropriate gate drive circuitry must be implemented to ensure efficient switching without exceeding the gate voltage limits.

- Protection Circuits: Implementing protective elements like snubber circuits or flyback diodes can enhance the circuit's robustness.

In summary, the SI2319CDS-T1-GE3 MOSFET is suitable for applications requiring a P-channel MOSFET with a Vdss of 40V, a continuous drain current capability, and efficient power management. Its application in a power switching circuit exemplifies its utility in controlling power flow to various loads, with an emphasis on careful design to adhere to its electrical and thermal limits.
