Vishay Siliconix SI2309CDS-T1-GE3

Part No.:: SI2309CDS-T1-GE3

Manufacturer:: Vishay Siliconix

Package:: SOT-23-3 (TO-236)

Datasheet:: SI2309CDS-T1-GE3.pdf

Description:: MOSFET P-CH 60V 1.6A SOT23-3

In Stock:: 3753

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SI2309CDS-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TrenchFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
1.6A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
345mOhm @ 1.25A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
4.1 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
210 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
1W (Ta), 1.7W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

SI2309CDS-T1-GE3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SI2309CDS-T1-GE3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SI2309CDS-T1-GE3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SI2309CDS-T1-GE3 information

Views：

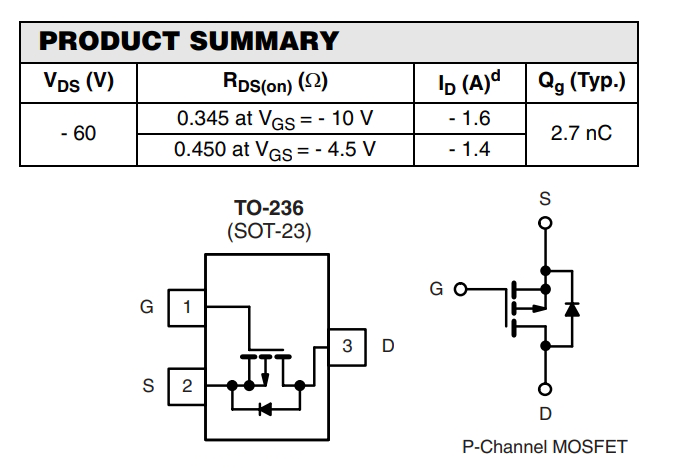

SI2309CDS-T1-GE3 Typical application Circuitry

SI2309CDS-T1-GE3

The SI2309CDS-T1-GE3 is a P-Channel enhancement-mode Field Effect Transistor (FET) known for its efficiency in power management applications. Characterized by its high-speed switching, low on-resistance, and ability to handle moderate power levels, this MOSFET is commonly used in load switch circuits, power management modules, and other applications requiring efficient control of power flow. Functionality of SI2309CDS-T1-GE3

The SI2309CDS-T1-GE3 functions as a switch, controlling the flow of electrical power in a circuit. Its P-Channel configuration means it's most efficient when used for switching the negative side of a load to ground, which is a common requirement in many power management applications.

Typical Application Scenarios

Power Management in Portable Devices: The SI2309CDS-T1-GE3 is used in smartphones, tablets, and other portable devices to manage power distribution efficiently, optimizing battery life and device performance.

Parameter Traits

Key characteristics of the SI2309CDS-T1-GE3 include:

- Drain-Source Voltage (Vds): The maximum voltage the MOSFET can handle across the drain and source terminals.

- Continuous Drain Current (Id): The maximum current the MOSFET can conduct continuously.

- RDS(on): Represents the on-resistance of the MOSFET, a critical parameter for determining power loss during operation.

- Gate Threshold Voltage (Vgs th): The minimum gate-source voltage required to turn the MOSFET on.

Circuit Integration: Load Switch in a Portable Device

Illustrating the integration of the SI2309CDS-T1-GE3 in a portable device for load switching:

1. Power Supply Connection:

- Attach the load to the power supply's positive connector.

- Attach the opposite end of the load to the SI2309CDS-T1-GE3's drain (D).

2. Ground Connection:

- Attach the SI2309CDS-T1-GE3's source (S) to the system ground.

3. Control Signal Interface:

- Connect the SI2309CDS-T1-GE3's gate (G) to a control signal (from a microcontroller, for example). The MOSFET is activated and current can pass through the load when there is a negative voltage in relation to the source.

4. Pull-up/Pull-down Resistor:

- Connect a pull-down resistor to the gate to ensure the MOSFET remains off when there is no control signal.

5. Decoupling Capacitor (Optional):

- Place a decoupling capacitor near the load to stabilize the voltage across the load and filter out noise.

Design Considerations

When designing a circuit with the SI2309CDS-T1-GE3, consider the following:

- Gate Voltage: Ensure the gate control voltage is within the specified range and correctly polarized to control the MOSFET as desired.

- Power Dissipation: Take into account the power dissipation of the MOSFET and ensure it's within the safe operating area, especially in high-current applications.

- Thermal Management: Consider the thermal aspects of the MOSFET, especially if the circuit is expected to handle high power or operate in a high-temperature environment.

- Load Characteristics: Understand the characteristics of the load, especially inductive loads, and implement appropriate protection mechanisms if needed (e.g., flyback diodes).

To sum up, the SI2309CDS-T1-GE3 is an adaptable P-Channel MOSFET that may be used in a variety of power management scenarios. Proper integration, considering the best design practices, can significantly enhance the performance and reliability of systems where efficient power control is crucial.
