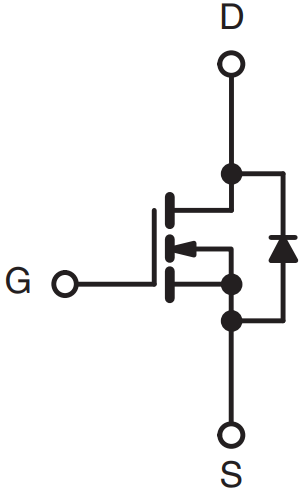

Vishay Siliconix SI2302CDS-T1-GE3

Part No.:: SI2302CDS-T1-GE3

Manufacturer:: Vishay Siliconix

Package:: SOT-23-3 (TO-236)

Datasheet:: SI2302CDS-T1-GE3.pdf

Description:: MOSFET N-CH 20V 2.6A SOT23-3

In Stock:: 301

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SI2302CDS-T1-GE3 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TrenchFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
2.6A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
2.5V, 4.5V
RdsOn(Max)@IdVgs:
57mOhm @ 3.6A, 4.5V
Vgs(th)(Max)@Id:
850mV @ 250µA
GateCharge(Qg)(Max)@Vgs:
5.5 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
-
FETFeature:
-
PowerDissipation(Max):
710mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
