STMicroelectronics SCT20N120H

Part No.:: SCT20N120H

Manufacturer:: STMicroelectronics

Package:: H2Pak-2

Datasheet:: SCT20N120H.pdf

Description:: SICFET N-CH 1200V 20A H2PAK-2

In Stock:: 2964

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SCT20N120H Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
SiCFET (Silicon Carbide)
DraintoSourceVoltage(Vdss):
1200 V
Current-ContinuousDrain(Id)@25°C:
20A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
20V
RdsOn(Max)@IdVgs:
290mOhm @ 10A, 20V
Vgs(th)(Max)@Id:
3.5V @ 1mA
GateCharge(Qg)(Max)@Vgs:
45 nC @ 20 V
Vgs(Max):
+25V, -10V
InputCapacitance(Ciss)(Max)@Vds:
650 pF @ 400 V
FETFeature:
-
PowerDissipation(Max):
175W (Tc)
OperatingTemperature:
-55°C ~ 200°C (TJ)
MountingType:
Surface Mount

SCT20N120H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SCT20N120H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SCT20N120H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SCT20N120H information

Views：

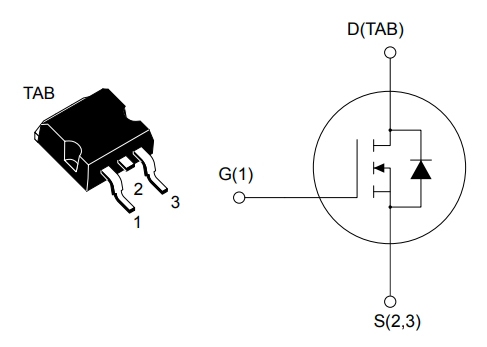

SCT20N120H Typical application Circuitry

SCT20N120H

SCT20N120H is a type of Silicon Carbide (SiC) MOSFET, a semiconductor device used primarily for high-efficiency power conversion in various electrical applications. SiC MOSFETs like the SCT20N120H are known for their high thermal conductivity, high voltage resistance, and fast switching capabilities, making them suitable for high-power applications.

Application Scenarios

SCT20N120H is typically used in applications like power supply units, electric vehicles, solar inverters, and high-frequency power converters.

Parameter Features

- High Breakdown Voltage: Capable of handling high voltages, making it suitable for high-voltage applications.

- Low On-Resistance: Ensures efficient power conversion with minimal losses.

- Fast Switching Speed: Ideal for applications requiring quick response times.

- High Thermal Conductivity: Can handle higher temperatures, which is beneficial in high-power applications.

Specific Circuit Connection Example

For integrating SCT20N120H in a solar inverter:

1. Gate Drive Connection: Connect the gate of SCT20N120H to a gate driver circuit. This is crucial for controlling the switching of the MOSFET.

2. Drain and Source Connection: Connect the drain of SCT20N120H to the high-voltage side of the circuit, and the source to the low-voltage side. This is essential for proper current flow in the circuit.

3. Heat Sink Attachment: Attach a heat sink to SCT20N120H to manage the heat generated during operation. This is vital for maintaining the reliability and longevity of the MOSFET.

4. Protection Circuit: Include a protection circuit for SCT20N120H to safeguard against over-voltage, over-current, and thermal overload. This ensures safe operation under various conditions.

Design Considerations

- Gate Drive Design: Properly design the gate drive circuit to ensure the SCT20N120H operates efficiently and switches accurately.

- Thermal Management: Consider effective thermal management solutions as SCT20N120H can generate significant heat during operation.

- Circuit Layout: Pay attention to the layout to minimize inductance and resistance, which can affect switching performance.

- Protection Mechanisms: Implement appropriate protection mechanisms to prevent damage to SCT20N120H due to abnormal operating conditions.

Incorporating SCT20N120H into applications like solar inverters enhances the efficiency and performance of the system, leveraging its high voltage capability and fast switching speed.
