ON Semiconductor NVMFS5C404NLWFAFT1G

Part No.:: NVMFS5C404NLWFAFT1G

Manufacturer:: ON Semiconductor

Package:: 5-DFN (5x6) (8-SOFL)

Datasheet:: NVMFS5C404NLWFAFT1G.pdf

Description:: MOSFET N-CH 40V 370A 5DFN

In Stock:: 3963

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NVMFS5C404NLWFAFT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
370A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
0.67mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
81 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
12168 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NVMFS5C404NLWFAFT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NVMFS5C404NLWFAFT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NVMFS5C404NLWFAFT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NVMFS5C404NLWFAFT1G information

Views：

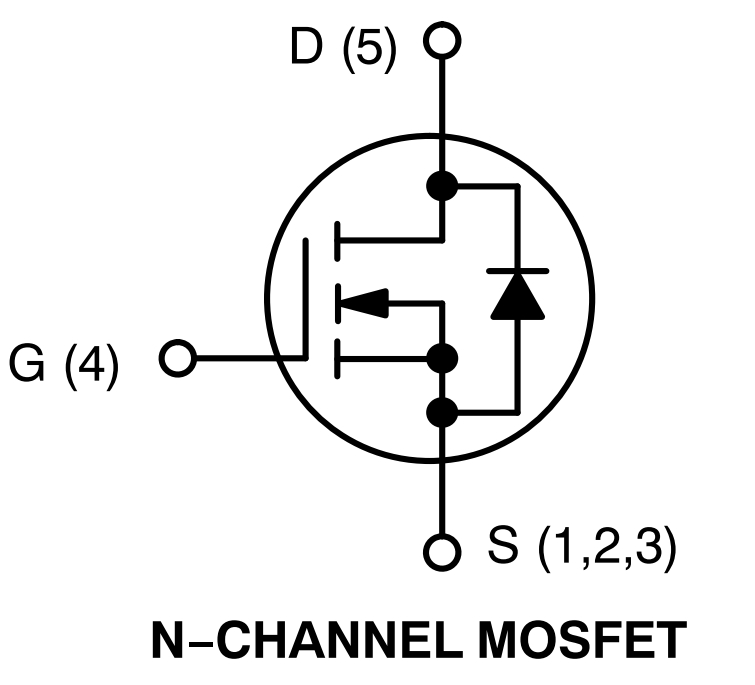

NVMFS5C404NLWFAFT1G Typical application Circuitry

NVMFS5C404NLWFAFT1G

A power MOSFET chip made for switching uses in electrical circuits is called the NVMFS5C404NLWFAFT1G.It is commonly used to control the flow of electrical current in various scenarios due to its high efficiency and low ON-state resistance.

Application Scenario: LED Matrix Display Driver

In this application, we will use the NVMFS5C404NLWFAFT1G MOSFET to design an LED matrix display driver circuit. The circuit will enable us to control the illumination of individual LEDs within a matrix, allowing for dynamic visual displays in applications like scoreboards, signage, or information boards.

Circuit Connection:

1. LED Matrix Connection

- Connect the anodes of the LEDs in the matrix to a common positive voltage supply.

- Connect the cathodes of each row of LEDs to individual drain (D) pins (Pin 1) of the NVMFS5C404NLWFAFT1G. Each row represents a group of LEDs that can be individually controlled.

2. Ground Connection (GND)

- Connect the common ground (GND) of the entire circuit, including the LEDs, power supply, and the NVMFS5C404NLWFAFT1G, to ensure proper grounding.

3. Gate Control

- Connect the gate (G) pin (Pin 4) of the NVMFS5C404NLWFAFT1G to a microcontroller or control logic circuit.

- Use individual GPIO pins of the microcontroller to drive the gates of the MOSFETs corresponding to the rows of LEDs you want to illuminate.

4. Gate-to-Source Voltage (Vgs) Consideration

- Ensure that the gate voltage (Vgs) applied to the MOSFET is above its threshold voltage (typically specified in the datasheet) to fully turn it on.

- Be cautious not to exceed the maximum gate-source voltage rating specified in the datasheet.

5. Current Limiting Resistors

- To limit the current through each LED, place a current-limiting resistor in series with the cathode of each LED in the matrix.

- Calculate the appropriate resistor value based on the LED forward voltage and desired current, ensuring the LEDs operate within their specified parameters.

When designing an LED matrix display driver circuit using the NVMFS5C404NLWFAFT1G MOSFET, it's crucial to consider factors such as LED voltage and current ratings, row/column scanning logic, and the PWM control signals from the microcontroller. Each MOSFET is responsible for turning on or off a row of LEDs, and the control logic should sequence through the rows to create patterns and display images. Ensure that the gate drive voltage and PWM signals are compatible with the MOSFET's specifications to achieve efficient LED matrix control and dynamic visual displays while maintaining LED longevity and avoiding overcurrent conditions.
