ON Semiconductor NVMFS5C404NLAFT1G

Part No.:: NVMFS5C404NLAFT1G

Manufacturer:: ON Semiconductor

Package:: 5-DFN (5x6) (8-SOFL)

Datasheet:: NVMFS5C404NLAFT1G.pdf

Description:: MOSFET N-CH 40V 370A 5DFN

In Stock:: 2521

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NVMFS5C404NLAFT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
370A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
0.67mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
81 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
12168 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NVMFS5C404NLAFT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NVMFS5C404NLAFT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NVMFS5C404NLAFT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NVMFS5C404NLAFT1G information

Views：

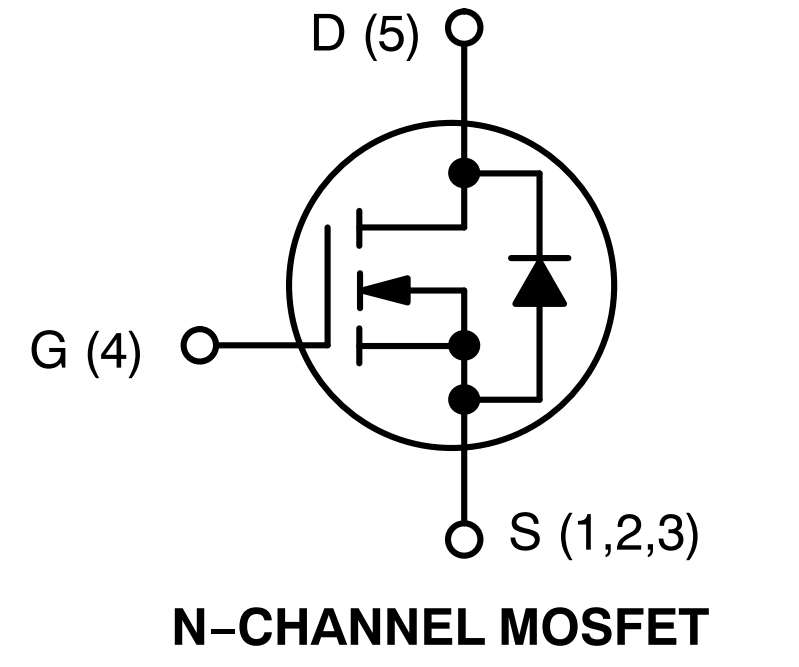

NVMFS5C404NLAFT1G Typical application Circuitry

NVMFS5C404NLAFT1G

Designed for switching purposes in electronic circuits, the power MOSFET chip is the NVMFS5C404NLAFT1G. It is commonly used to control the flow of electrical current in various scenarios due to its high efficiency and low ON-state resistance.

Application Scenario: Motor Control Circuit

In this application, we will use the NVMFS5C404NLAFT1G MOSFET to design a motor control circuit. The circuit will control the direction and speed of a DC motor, which is commonly used in robotics and automation systems.

Circuit Connection:

1. Motor Connection

- Connect the terminals of the DC motor to the drain (D) pin (Pin 1) and the source (S) pin (Pin 2) of the NVMFS5C404NLAFT1G.

- Ensure that the motor polarity is correctly aligned with the MOSFET connections.

2. Ground Connection (GND)

- Connect the common ground (GND) of the entire circuit, including the motor, power supply, and the NVMFS5C404NLAFT1G, to ensure proper grounding.

3. Gate Control

- Connect the gate (G) pin (Pin 4) of the NVMFS5C404NLAFT1G to a control circuit or microcontroller output pin that generates PWM (Pulse-Width Modulation) signals.

- The PWM signal controls the MOSFET's switching operation, allowing you to control the motor speed and direction.

4. Gate-to-Source Voltage (Vgs) Consideration

- Ensure that the gate voltage (Vgs) applied to the MOSFET is above its threshold voltage (typically specified in the datasheet) to fully turn it on.

- Be cautious not to exceed the maximum gate-source voltage rating specified in the datasheet.

5. Flyback Diode

- To protect the MOSFET from voltage spikes generated by the motor during its operation, connect a flyback diode (also known as a freewheeling diode) in parallel with the motor terminals. The anode of the diode connects to the drain (D) pin, and the cathode connects to the source (S) pin of the MOSFET.

When designing a motor control circuit using the NVMFS5C404NLAFT1G MOSFET, it's crucial to consider factors such as motor voltage and current ratings, PWM signal frequency, and the direction control logic. The choice of the flyback diode is also essential to protect the MOSFET from voltage spikes generated by the motor when it turns off. Additionally, ensure that the gate drive voltage and PWM signal are compatible with the MOSFET's specifications to achieve efficient motor control and prevent MOSFET overheating or damage.
