What is the Additional Feature ?

Name: NVHL080N120SC1A
Brand: ON Semiconductor
SKU: NVHL080N120SC1A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NVHL080N120SC1A

Part No.:: NVHL080N120SC1A

Manufacturer:: ON Semiconductor

Package:: TO-247-3

Datasheet:: NVHL080N120SC1A.pdf

Description:: SICFET N-CH 1200V 31A TO247-3

In Stock:: 3404

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NVHL080N120SC1A Specifications

Packaging:
Tube
Series:
Automotive, AEC-Q101
ProductStatus:
Active
FETType:
N-Channel
Technology:
SiCFET (Silicon Carbide)
DraintoSourceVoltage(Vdss):
1200 V
Current-ContinuousDrain(Id)@25°C:
31A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
20V
RdsOn(Max)@IdVgs:
110mOhm @ 20A, 20V
Vgs(th)(Max)@Id:
4.3V @ 5mA
GateCharge(Qg)(Max)@Vgs:
56 nC @ 20 V
Vgs(Max):
+25, -15V
InputCapacitance(Ciss)(Max)@Vds:
1670 pF @ 800 V
FETFeature:
-
PowerDissipation(Max):
178W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

NVHL080N120SC1A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NVHL080N120SC1A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NVHL080N120SC1A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NVHL080N120SC1A information

Views：

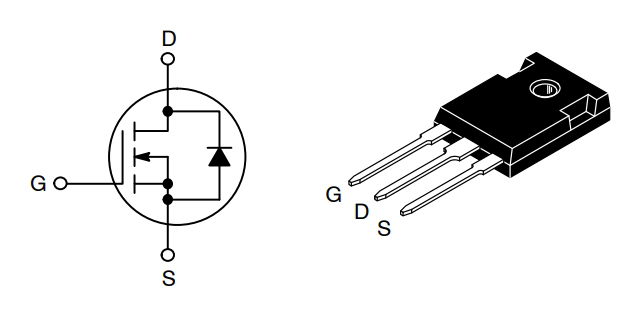

NVHL080N120SC1A Typical application Circuitry

NVHL080N120SC1A

A particular kind of power MOSFET made especially for high-voltage and high-current applications is the NVHL080N120SC1A. This component is part of a family of semiconductors optimized for energy efficiency, durability, and performance in demanding environments.

Application Scenarios

An exemplary application for the NVHL080N120SC1A is in solar power inverters, which play a vital role in converting the DC electricity generated by solar panels into AC electricity that can be used by home appliances or fed back into the power grid. The efficiency, reliability, and thermal performance of the NVHL080N120SC1A make it particularly suitable for this task, where it ensures the optimal conversion of solar energy with minimal losses.

Parameters and Features

The NVHL080N120SC1A is distinguished by several important specifications:

- High breakdown voltage, typically around 1200V, allowing it to efficiently manage the high-voltage outputs typical of solar panel arrays.

- Low on-resistance (R_DS(on)), which minimizes power losses during operation and enhances the overall efficiency of the power conversion process.

- Fast switching capabilities, facilitating efficient energy conversion and allowing for the precise control necessary in modern inverters.

- Superior thermal management characteristics, ensuring stable operation under a wide range of temperatures, which is critical for outdoor applications like solar inverters.

Detailed Circuit Connection for a Solar Power Inverter

1. DC Input Connection: Connect the drain (D) of the NVHL080N120SC1A to the positive output from the solar panel array. In order to route the generated DC power via the MOSFET for conversion, this connection is essential.

2. AC Output Connection: The source (S) of the NVHL080N120SC1A should be connected to one of the output terminals leading to the inverter's AC output stage. In a full-bridge or half-bridge inverter configuration, multiple MOSFETs are used in conjunction to create the AC waveform.

3. Gate Drive Mechanism: Link the gate (G) to a gate driver circuit designed to provide the precise voltage and timing signals required to turn the NVHL080N120SC1A on and off. The gate driver's operation is synchronized with the inverter's control algorithm to ensure efficient and accurate conversion of DC to AC power.

4. Cooling System: Equip the NVHL080N120SC1A with adequate cooling, such as heatsinks or forced air systems. Effective heat dissipation is crucial for maintaining optimal efficiency and longevity, especially given the high power levels involved in solar power conversion.

5. Protection Systems: Implement protection mechanisms to safeguard the NVHL080N120SC1A against overcurrent, overvoltage, and overheating. This may include current sensors, thermal sensors, and circuit breakers that trigger protective actions in abnormal conditions.

Design Considerations

- Efficiency: Optimize the circuit design to reduce conduction and switching losses. This involves careful selection of gate resistors and the design of the PCB layout to minimize parasitic inductances and capacitances.

- Reliability: Ensure the NVHL080N120SC1A and all associated components are rated for the environmental conditions they will face, particularly in outdoor applications such as solar power inverters.

- Safety: Incorporate comprehensive safety features to prevent damage to the inverter, the solar panels, and the grid or appliances connected to the inverter in case of a fault.

- Compliance: Build the system in accordance with applicable solar power system standards and laws, such as those pertaining to electrical safety, electromagnetic compatibility (EMC), and grid connections.

Incorporating the NVHL080N120SC1A into a solar power inverter demands careful consideration of circuit design, component selection, and system integration. This MOSFET's high voltage capacity, low on-resistance, fast switching, and excellent thermal performance make it ideally suited to the high-efficiency conversion of solar energy into usable power, showcasing its value in renewable energy applications.

NVHL080N120SC1A FAQ

1. How to order NVHL080N120SC1A on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that NVHL080N120SC1A is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NVHL080N120SC1A. All suppliers must pass our qualification reviews before they can publish their products including NVHL080N120SC1A on icwhale.com; we pay more attention to the channels and quality of NVHL080N120SC1A products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NVHL080N120SC1A price and inventory displayed accurate?

The price and inventory of NVHL080N120SC1A fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of NVHL080N120SC1A?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the NVHL080N120SC1A we delivered, we will accept the replacement or return of the NVHL080N120SC1A only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of NVHL080N120SC1A.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
