Name: NVD5117PLT4G
Brand: ON Semiconductor
SKU: NVD5117PLT4G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NVD5117PLT4G

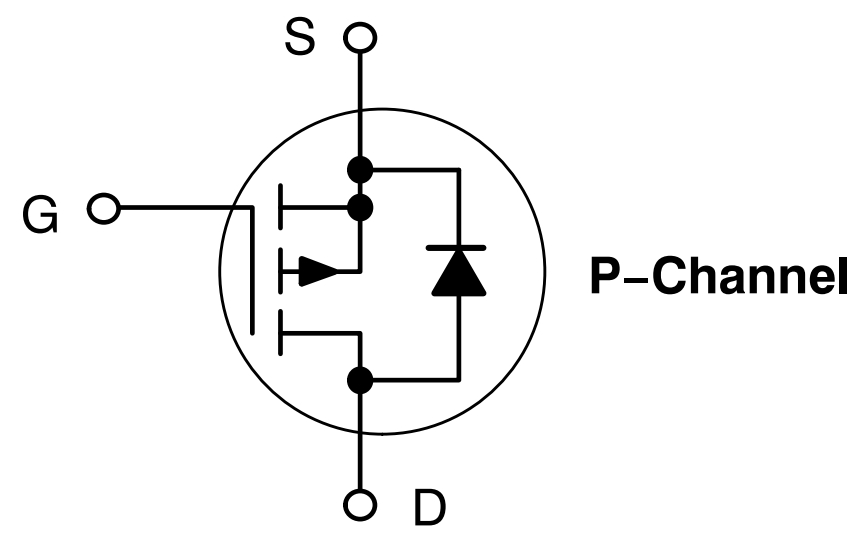

Part No.:: NVD5117PLT4G

Manufacturer:: ON Semiconductor

Package:: DPAK

Datasheet:: NVD5117PLT4G.pdf

Description:: MOSFET P-CH 60V 11A/61A DPAK

In Stock:: 2804

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NVD5117PLT4G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101
ProductStatus:
Obsolete
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
11A (Ta), 61A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
16mOhm @ 29A, 10V
Vgs(th)(Max)@Id:
2.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
85 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4800 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
4.1W (Ta), 118W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NVD5117PLT4G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NVD5117PLT4G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NVD5117PLT4G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NVD5117PLT4G information

Views：

NVD5117PLT4G Typical application Circuitry

NVD5117PLT4G

The NVD5117PLT4G is a Power MOSFET primarily designed for automotive applications. This P-Channel MOSFET is employed in high-side switching applications.

Common Applications:

- Automotive control units

- Load switching

- Battery management systems

Key Specifications:

- Low on-resistance

- High breakdown voltage

- Designed to endure harsh automotive environments

Application Scenario: Battery Management System

Circuit Connection Guide:

1. Source to Battery (Pin 2): Connect Pin 2 to the battery's positive terminal.

2. Gate Control (Pin 1): Interface Pin 1 with a microcontroller for switching actions.

3. Drain Load Connection (Pin 3): Connect this to the load that needs to be managed.

Circuit Design Considerations:

- Thermal Management: The NVD5117PLT4G can heat up during operation; thus, adequate heat sinking is required.

- Gate Voltage: It's vital to apply the correct voltage to the gate for effective switching.

- Protection Features: Implementing overcurrent and thermal protection is essential for automotive applications.

Detailed Circuit Integration:

1. Positive Battery Connection (Pin 2 Bonding): Solder Pin 2 of NVD5117PLT4G directly to the battery's positive terminal.

2. Microcontroller Interface (Pin 1 Connection): Establish a link between the microcontroller output and Pin 1, ensuring that there is a proper gate drive circuit in between.

3. Load Management (Pin 3 Affiliation): Secure Pin 3 to the load, which could be a motor or other device within the battery management system.

Incorporating the NVD5117PLT4G in a battery management system can significantly enhance the control and efficiency of the power flow. Its low on-resistance and high breakdown voltage make it an ideal choice for high-side switching in automotive environments. Attention to detail in terms of thermal management, gate drive voltage, and protection schemes is paramount when integrating the NVD5117PLT4G into a circuit.
