ON Semiconductor NTR4501NT1G

Part No.:: NTR4501NT1G

Manufacturer:: ON Semiconductor

Package:: SOT-23-3 (TO-236)

Datasheet:: NTR4501NT1G.pdf

Description:: MOSFET N-CH 20V 3.2A SOT23-3

In Stock:: 2979

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTR4501NT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
3.2A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
1.8V, 4.5V
RdsOn(Max)@IdVgs:
80mOhm @ 3.6A, 4.5V
Vgs(th)(Max)@Id:
1.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
6 nC @ 4.5 V
Vgs(Max):
±12V
InputCapacitance(Ciss)(Max)@Vds:
200 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
1.25W (Tj)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

NTR4501NT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTR4501NT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTR4501NT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTR4501NT1G information

Views：

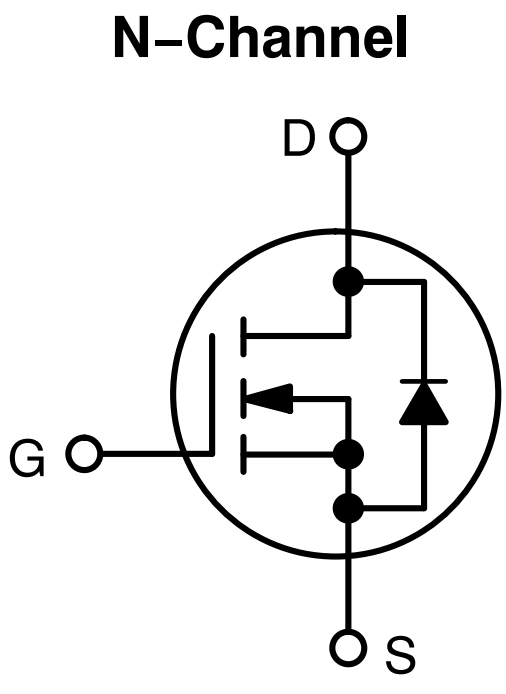

NTR4501NT1G Typical application Circuitry

NTR4501NT1G

The NTR4501NT1G is a power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) chip designed for power switching applications. It is commonly used to control and regulate power flow in electronic devices and systems, offering high-performance characteristics suitable for various applications.

Key Parameters and Features of NTR4501NT1G:

- NTR4501NT1G is an N-channel MOSFET transistor.

- It provides low on-resistance (RDS(on)), reducing power dissipation.

- The chip is perfect for high-power applications since it can handle high drain current.

- It operates with a low gate threshold voltage (VGS(th)), enabling easy control.

- Made to operate across a broad voltage range.

Example of Use: Motor Control System

In this scenario, we will use the NTR4501NT1G MOSFET in a circuit to control the speed and direction of a DC motor using a microcontroller.

Circuit Connection:

- Connect the Drain (D) of the NTR4501NT1G to the positive terminal of the DC motor.

- Connect the Source (S) of the NTR4501NT1G to the ground (0V).

- Attach the NTR4501NT1G's Gate (G) to a microcontroller's GPIO (General Purpose Input/Output) pin.

- To limit the current into the gate, connect a gate resistor (R1) between the GPIO pin of the microcontroller and the MOSFET's gate. The value of R1 depends on the gate driver's specifications.

- Connect a pull-down resistor (R2) between the Gate and Ground (0V) to ensure the MOSFET is off when the microcontroller's GPIO pin is in a high-impedance state.

- Install a diode (D1) in parallel with the motor, with the anode connected to the motor's positive terminal and the cathode to the MOSFET's drain (D). This diode is a flyback diode and helps protect against voltage spikes when the motor is turned off.

- Connect an H-bridge circuit with complementary MOSFETs to control the motor's direction. In this circuit, you would use two additional NTR4501NT1G MOSFETs to control the reverse direction of the motor.

Considerations for Circuit Design:

1. Voltage Compatibility: Ensure that the voltage rating of the NTR4501NT1G is compatible with the DC motor's voltage requirements.

2. Current Handling: Confirm that the MOSFET can handle the current required by the DC motor. Check the motor's current rating.

3. Gate Voltage: The microcontroller's GPIO should provide a voltage sufficient to turn on the MOSFET (typically above its VGS(th)).

4. Gate Resistor: Choose an appropriate value for R1 to limit the current into the gate without slowing down the switching speed excessively.

5. Pull-Down Resistor: The value of R2 should be high enough to prevent excessive power consumption but low enough to ensure reliable turn-off of the MOSFET.

6. Flyback Diode: Include D1 to protect against voltage spikes generated by the motor when it is turned off.

7. H-Bridge Circuit: Implement an H-bridge circuit if bidirectional motor control is required, using complementary MOSFETs like the NTR4501NT1G.

By carefully addressing these considerations and designing the circuit accordingly, you can effectively control the speed and direction of a DC motor using the NTR4501NT1G MOSFET, ensuring precise and efficient motor control.
