Name: NTR4101PT1G
Brand: ON Semiconductor
SKU: NTR4101PT1G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NTR4101PT1G

Part No.:: NTR4101PT1G

Manufacturer:: ON Semiconductor

Package:: SOT-23-3 (TO-236)

Datasheet:: NTR4101PT1G.pdf

Description:: MOSFET P-CH 20V 1.8A SOT23-3

In Stock:: 3683

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTR4101PT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
20 V
Current-ContinuousDrain(Id)@25°C:
1.8A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
1.8V, 4.5V
RdsOn(Max)@IdVgs:
85mOhm @ 1.6A, 4.5V
Vgs(th)(Max)@Id:
1.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
8.5 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
675 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
420mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

NTR4101PT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTR4101PT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTR4101PT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTR4101PT1G information

Views：

NTR4101PT1G Typical application Circuitry

NTR4101PT1G

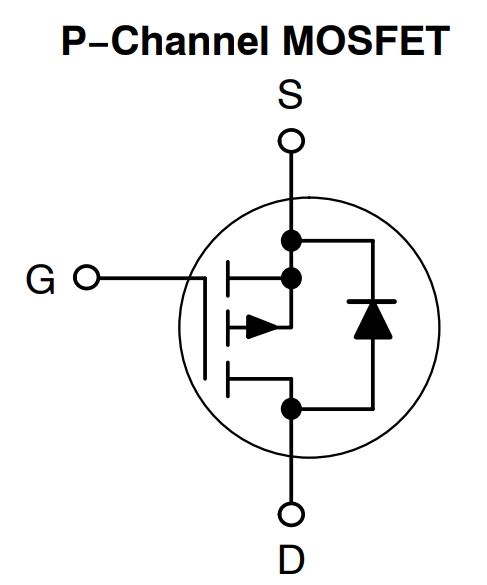

The NTR4101PT1G is a P-channel Power MOSFET, commonly utilized in power switching applications, particularly when a high-side switch is needed due to its ability to turn on with a negative gate-source voltage.

NTR4101PT1G Application Scenario: High-Side Load Switching

Parameter Features:

- Low R_DS(on): Results in minimal power loss during conduction.

- Negative Gate-Source Threshold Voltage (V_GS(th)): Suitable for high-side switching.

- Small Footprint: Ideal for space-constrained applications.

Example Circuit: High-Side Load Switch for LED Lighting

1. Power Source Connection: The source terminal (pin 3) is connected to a positive voltage rail.

2. Load Connection: Attach an LED (with a current limiting resistor) to the drain terminal (pin 2).

3. Control Logic: The gate terminal (pin 1) is linked to a microcontroller's GPIO pin, capable of providing a logic-level voltage lower than the source voltage to turn the MOSFET on.

4. Gate Pull-down Resistor: A resistor (e.g., 10kΩ) is connected between the gate and the source terminal to ensure the MOSFET turns off when the gate is not actively driven.

Circuit Design Considerations NTR4101PT1G:

1. Gate Drive Voltage: Ensure the microcontroller can provide a sufficient voltage differential between the gate and source to fully turn on the MOSFET.

2. LED Current: Select a current-limiting resistor based on the LED's specifications and the voltage across it when the MOSFET is on.

3. Thermal Management: Depending on the load current, the MOSFET may require a heat sink to maintain a safe operating temperature.

Incorporating the NTR4101PT1G in a circuit mandates a careful analysis of the application's voltage levels, current requirements, and thermal conditions to ensure the MOSFET operates within its specified limits and the circuit functions as intended. Always consult the datasheet for in-depth electrical characteristics to guide the integration process.
