ON Semiconductor NTMFS5C670NLT1G

Part No.:: NTMFS5C670NLT1G

Manufacturer:: ON Semiconductor

Package:: 5-DFN (5x6) (8-SOFL)

Datasheet:: NTMFS5C670NLT1G.pdf

Description:: MOSFET N-CH 60V 17A/71A 5DFN

In Stock:: 3218

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTMFS5C670NLT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
17A (Ta), 71A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
6.1mOhm @ 35A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
20 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1400 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
3.6W (Ta), 61W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NTMFS5C670NLT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTMFS5C670NLT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTMFS5C670NLT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTMFS5C670NLT1G information

Views：

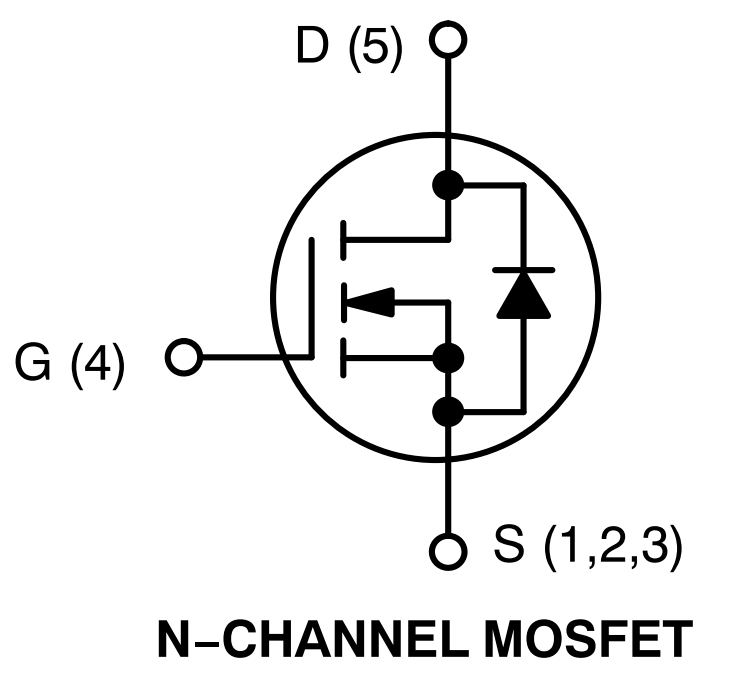

NTMFS5C670NLT1G Typical application Circuitry

NTMFS5C670NLT1G

The NTMFS5C670NLT1G is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) chip primarily designed for power management applications. It is appropriate for a variety of electronic devices and systems where effective power regulation is needed because of its low on-resistance and excellent current-handling capabilities.

Key Parameters and Features of NTMFS5C670NLT1G:

- NTMFS5C670NLT1G is an N-channel MOSFET transistor.

- It exhibits a low on-resistance (RDS(on)), minimizing power dissipation.

- The chip is perfect for high-power applications since it can handle high drain current.

- It operates with a low gate threshold voltage (VGS(th)), facilitating easy control.

- Made to run on a broad range of voltage.

Example of Application: Motor Control System

In this scenario, we will use the NTMFS5C670NLT1G MOSFET in a circuit to control a DC motor using a microcontroller.

Circuit Connection:

- Join the DC motor's positive terminal to the NTMFS5C670NLT1G's Drain (D).

- Assemble the NTMFS5C670NLT1G and connect its Source (S) to the ground (0V).

- Join a GPIO (General Purpose Input/Output) pin on the microcontroller with the Gate (G) of the NTMFS5C670NLT1G.

- Attach a gate resistor (R1) to the gate of the MOSFET to restrict the amount of current that can pass through it from the microcontroller's GPIO pin. A typical value for R1 might be 10k ohms.

- Connect a pull-down resistor (R2) between the Gate and Ground (0V) to ensure the MOSFET is off when the microcontroller's GPIO pin is in a high-impedance state. A typical value for R2 might also be 10k ohms.

- Install a diode (D1) in parallel with the motor, with the anode connected to the motor's positive terminal and the cathode to the MOSFET's drain (D). This diode is a flyback diode and helps protect against voltage spikes when the motor is turned off.

Considerations for Circuit Design:

1. Voltage Compatibility: Ensure that the voltage rating of the NTMFS5C670NLT1G is compatible with the DC motor's voltage requirements.

2. Current Handling: Make sure the MOSFET can handle the current required by the DC motor. Check the motor's current rating.

3. Gate Voltage: The microcontroller's GPIO should provide a voltage sufficient to turn on the MOSFET (typically above its VGS(th)).

4. Gate Resistor: Choose an appropriate value for R1 to limit the current into the gate without slowing down the switching speed excessively.

5. Pull-Down Resistor: The value of R2 should be high enough to prevent excessive power consumption but low enough to ensure a reliable turn-off of the MOSFET.

6. Flyback Diode: Include D1 to protect against voltage spikes generated by the motor when it is turned off.

By carefully considering these factors and designing the circuit accordingly, you can effectively control the DC motor using the NTMFS5C670NLT1G MOSFET, ensuring reliable and efficient motor operation.
