ON Semiconductor NTMFS5C628NLT1G

Part No.:: NTMFS5C628NLT1G

Manufacturer:: ON Semiconductor

Package:: 5-DFN (5x6) (8-SOFL)

Datasheet:: NTMFS5C628NLT1G.pdf

Description:: MOSFET N-CH 60V 5DFN

In Stock:: 3845

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTMFS5C628NLT1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
15A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
2.4mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2V @ 135µA
GateCharge(Qg)(Max)@Vgs:
52 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3600 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
3.7W (Ta), 110W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NTMFS5C628NLT1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTMFS5C628NLT1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTMFS5C628NLT1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTMFS5C628NLT1G information

Views：

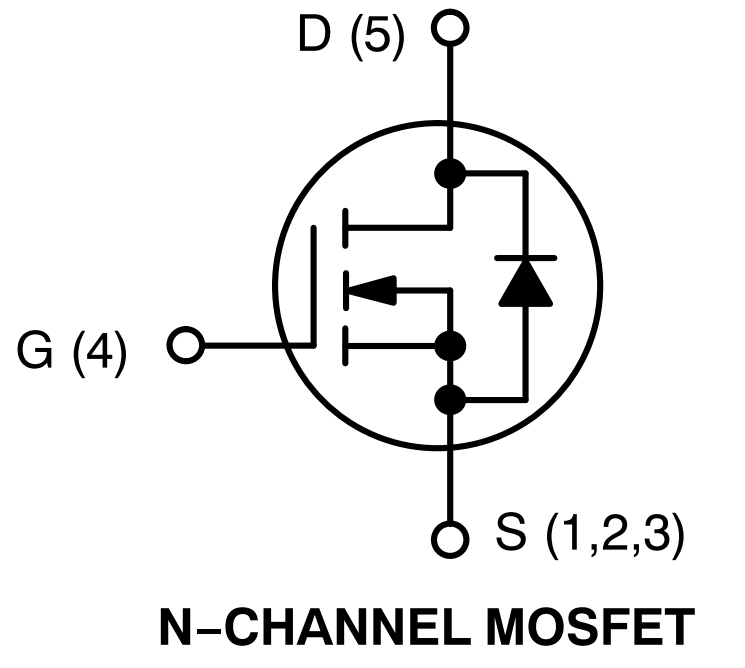

NTMFS5C628NLT1G Typical application Circuitry

NTMFS5C628NLT1G

The NTMFS5C628NLT1G is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) chip designed for power management applications. It is frequently used to control and regulate power flow in a variety of electrical devices and systems. This chip is ideal for various applications that need effective power handling because of its high-performance features.

Key Parameters and Features:

- NTMFS5C628NLT1G is an N-channel MOSFET transistor.

- It has a low on-resistance (RDS(on)) which results in minimal power loss.

- This chip is appropriate for high-power applications since it can manage a large drain current.

- It operates with a low gate threshold voltage (VGS(th)), making it easy to drive.

- It is intended to operate across a broad voltage range.

Now, let's consider an application scenario where we use the NTMFS5C628NLT1G MOSFET in a circuit for switching a load, such as an LED strip, using a microcontroller.

Application Scenario: LED Strip Control

In this scenario, we want to control the power supply to an LED strip using the NTMFS5C628NLT1G MOSFET.

Circuit Connection:

- Attach the NTMFS5C628NLT1G's Drain (D) to the LED strip's positive terminal.

- Attach the NTMFS5C628NLT1G's Source (S) to the ground (0V).

- Attach the NTMFS5C628NLT1G's Gate (G) to a microcontroller's GPIO (General Purpose Input/Output) pin.

- To limit the current into the gate, connect a resistor (R1) between the GPIO pin of the microcontroller and the MOSFET's gate. A typical value for R1 might be 10k ohms.

- Connect a pull-down resistor (R2) between the Gate and Ground (0V) to ensure the MOSFET is off when the microcontroller's GPIO pin is in a high-impedance state. A typical value for R2 might also be 10k ohms.

Considerations for Circuit Design:

1. Voltage Compatibility: Ensure that the voltage rating of the NTMFS5C628NLT1G is compatible with the LED strip's voltage requirements.

2. Current Handling: Make sure the MOSFET can handle the current required by the LED strip. Check the LED strip's current rating.

3. Gate Voltage: The microcontroller's GPIO should provide a voltage sufficient to turn on the MOSFET (typically above its VGS(th)).

4. Gate Resistor: Choose an appropriate value for R1 to limit the current into the gate without slowing down the switching speed excessively.

5. Pull-Down Resistor: The value of R2 should be high enough to prevent excessive power consumption but low enough to ensure a reliable turn-off of the MOSFET.

By carefully designing the circuit and considering these factors, you can effectively control the LED strip's power supply using the NTMFS5C628NLT1G MOSFET, allowing for precise and efficient control of the LED strip's illumination.
