Name: NTF3055L108T1G
Brand: ON Semiconductor
SKU: NTF3055L108T1G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

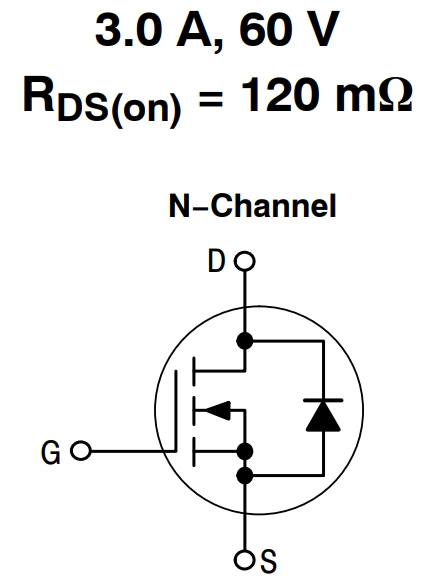

ON Semiconductor NTF3055L108T1G

Part No.:: NTF3055L108T1G

Manufacturer:: ON Semiconductor

Package:: SOT-223 (TO-261)

Datasheet:: NTF3055L108T1G.pdf

Description:: MOSFET N-CH 60V 3A SOT223

In Stock:: 3867

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTF3055L108T1G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
3A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
5V
RdsOn(Max)@IdVgs:
120mOhm @ 1.5A, 5V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
15 nC @ 5 V
Vgs(Max):
±15V
InputCapacitance(Ciss)(Max)@Vds:
440 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
1.3W (Ta)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NTF3055L108T1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTF3055L108T1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTF3055L108T1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTF3055L108T1G information

Views：

NTF3055L108T1G Typical application Circuitry

NTF3055L108T1G

The NTF3055L108T1G is an N-Channel Power MOSFET designed for applications requiring fast switching, high efficiency, and reliability.

Application Scenarios: This MOSFET is commonly used in power management for consumer electronics, automotive applications, and DC-DC converters.

Features of NTF3055L108T1G Parameter: Typically, this MOSFET would feature a high drain-source voltage (Vds), a considerable continuous drain current (Id), and a low on-state resistance (Rds(on)) for increased efficiency.

Circuit Connection:

1. Gate Control: A resistor is connected between the gate (Pin 1) and the driving voltage source to limit the gate current.

2. Drain Connection: The load's high side is connected to the drain (Pin 2).

3. Source and Grounding: The source (Pin 3) is grounded, establishing a return path for the current.

4. Freewheeling Diode: A diode may be placed in parallel with the load for back-EMF protection in inductive applications.

NTF3055L108T1G Design Considerations:

1. Thermal Management: Ensure adequate heat sinking to handle the power dissipation.

2. Gate Drive: Verify the gate-to-source voltage (Vgs) is within specified limits to fully turn on the MOSFET.

3. Overcurrent Protection: Integrate a current sensing resistor and protection circuit to prevent damage from excessive current.

4. ESD Protection: Gate-source ESD protection is crucial due to the sensitivity of the gate oxide.

In summary, when integrating the NTF3055L108T1G into a circuit, it is imperative to manage heat dissipation, provide proper gate drive voltage, safeguard against overcurrent scenarios, and protect the device from electrostatic discharge.
