ON Semiconductor NTD2955T4G

Part No.:: NTD2955T4G

Manufacturer:: ON Semiconductor

Package:: DPAK

Datasheet:: NTD2955T4G.pdf

Description:: MOSFET P-CH 60V 12A DPAK

In Stock:: 2512

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTD2955T4G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
12A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
180mOhm @ 6A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
30 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
750 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
55W (Tj)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NTD2955T4G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTD2955T4G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTD2955T4G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTD2955T4G information

Views：

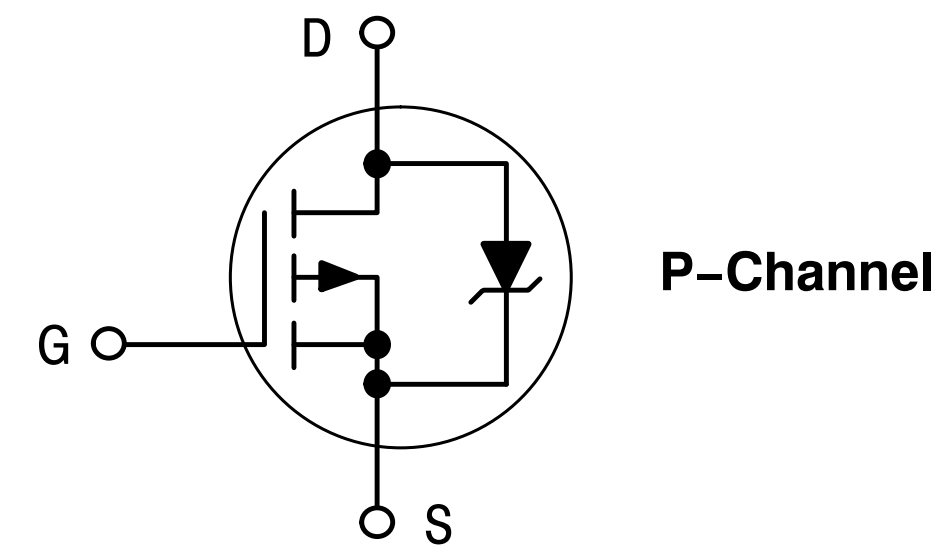

NTD2955T4G Typical application Circuitry

NTD2955T4G

The NTD2955T4G is a P-Channel Power MOSFET utilized predominantly for load switching and power management applications.

Application Scenario: Load Switching in Power Distribution Systems.

Parameter Characteristics: The NTD2955T4G typically has a -60V drain-to-source voltage (Vds), a continuous drain current (Id) of -12A, and a relatively low Rds(on) which minimizes power losses during operation.

Circuit Connection:

1. Source to Power Supply: Connect the Source pin (pin 2) directly to the power supply's positive rail.

2. Drain to Load: The Drain pin (pin 1) should be connected to the load, which could be a motor or another module that requires power control.

3. Gate to Control Signal: The Gate pin (pin 3) needs to be interfaced with a control signal, typically from a microcontroller or logic circuit, to switch the MOSFET on and off.

4. Gate Protection: Integrate a resistor (e.g., 10kΩ) between Gate and Source and a Zener diode across the Gate and Source for voltage spike protection.

NTD2955T4G Design Considerations:

1. Voltage Ratings: Ensure that the NTD2955T4G operates within its voltage and current ratings to prevent failure.

2. Thermal Management: Provide adequate heat sinking to dissipate heat generated during operation.

3. Gate Drive Considerations: Ensure that the gate drive circuitry can supply sufficient voltage to fully turn the MOSFET on.

4. PCB Design: Proper layout to minimize inductance and noise susceptibility.

In applications such as power distribution systems, using the NTD2955T4G involves careful attention to voltage ratings, thermal management, and robust gate drive circuitry. Effective PCB layout is crucial to mitigate potential issues arising from inductance and noise.
