ON Semiconductor NTBG020N120SC1

Part No.:: NTBG020N120SC1

Manufacturer:: ON Semiconductor

Package:: D2PAK-7

Datasheet:: NTBG020N120SC1.pdf

Description:: SICFET N-CH 1200V 8.6A/98A D2PAK

In Stock:: 3907

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NTBG020N120SC1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
SiCFET (Silicon Carbide)
DraintoSourceVoltage(Vdss):
1200 V
Current-ContinuousDrain(Id)@25°C:
8.6A (Ta), 98A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
20V
RdsOn(Max)@IdVgs:
28mOhm @ 60A, 20V
Vgs(th)(Max)@Id:
4.3V @ 20mA
GateCharge(Qg)(Max)@Vgs:
220 nC @ 20 V
Vgs(Max):
+25V, -15V
InputCapacitance(Ciss)(Max)@Vds:
2943 pF @ 800 V
FETFeature:
-
PowerDissipation(Max):
3.7W (Ta), 468W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

NTBG020N120SC1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NTBG020N120SC1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NTBG020N120SC1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NTBG020N120SC1 information

Views：

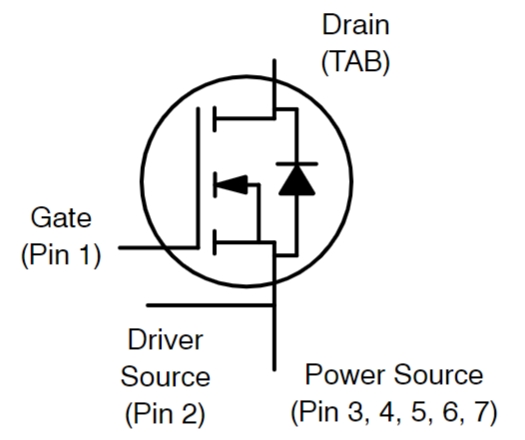

NTBG020N120SC1 Typical application Circuitry

NTBG020N120SC1

The NTBG020N120SC1 is a state-of-the-art silicon carbide (SiC) N-channel MOSFET, known for its exceptional efficiency and performance in high-voltage, high-temperature, and high-speed applications.

Application Scenario: Electric Vehicle (EV) On-board Charger

A prime application for the NTBG020N120SC1 is in the power stage of an electric vehicle's on-board charger, where it can efficiently convert AC power from the grid to DC power to charge the vehicle's battery. This process demands high efficiency, compact size, and exceptional reliability.

Detailed Circuit Connection

1.AC to DC Rectification: In the charger circuit, the NTBG020N120SC1 is utilized in a bridge configuration to rectify AC input to DC. Each MOSFET's drain is connected to an AC input phase, and their sources are interconnected, forming a half-bridge topology. This arrangement leverages the low on-resistance and high-speed switching capabilities of the NTBG020N120SC1.

2.Gate Drive Circuitry: The gate of each NTBG020N120SC1 requires a dedicated gate driver circuit, capable of providing the gate voltage swing necessary for switching at high frequencies. This circuit must also include desaturation detection to protect the NTBG020N120SC1 from overcurrent conditions by quickly turning it off when abnormal operation is detected.

3.DC Link Capacitors: After rectification, DC link capacitors are placed across the output of the rectifier stage. These capacitors buffer the DC power and smooth out any ripples. The low on-resistance and high switching speed of the NTBG020N120SC1 minimize energy loss, allowing for smaller and less expensive capacitors.

4.Thermal Management: Given the power levels involved in EV charging, the NTBG020N120SC1 can generate significant heat. Efficient thermal management is crucial. This includes using heat sinks, thermal interface materials, and careful PCB layout to enhance heat dissipation from the NTBG020N120SC1 to the environment.

5.Isolation Measures: For safety, especially in high-voltage applications like EV charging, ensure that the gate driver circuitry is electrically isolated from the high-voltage NTBG020N120SC1 switching nodes. This can be achieved through optocouplers or transformer-based isolation techniques in the gate drive circuits.

Design Considerations

When integrating the NTBG020N120SC1 into a circuit, several important factors must be considered:

- Switching Frequency: The high switching speed of the NTBG020N120SC1 allows for operation at higher frequencies, which can reduce the size of passive components. However, higher switching frequencies can increase switching losses, so an optimal frequency should be chosen based on the specific application requirements.

- Gate Drive Voltage: Properly configure the gate drive voltage to fully enhance the NTBG020N120SC1 without exceeding its maximum gate-source voltage (V_GS) rating, ensuring efficient operation and long-term reliability.

- Parasitic Inductances: Minimize parasitic inductances in the layout to reduce voltage overshoot and ringing during switching, which can stress the NTBG020N120SC1 and reduce efficiency. Careful PCB layout and component placement are essential.

- Protection Circuits: Implement protection circuits to safeguard the NTBG020N120SC1 against overcurrent, overvoltage, and overheating. This enhances the reliability and longevity of the MOSFET and the overall system.

In conclusion, the NTBG020N120SC1 SiC MOSFET is a powerful component for applications requiring high efficiency, compact size, and robust performance. By focusing on detailed circuit connections and considering essential design factors, engineers can leverage the NTBG020N120SC1 to develop advanced power conversion systems, such as those found in electric vehicle charging infrastructure.
