Renesas Electronics America Inc NP100P06PDG-E1-AY

Part No.:: NP100P06PDG-E1-AY

Manufacturer:: Renesas Electronics America Inc

Package:: TO-263

Datasheet:: NP100P06PDG-E1-AY.pdf

Description:: MOSFET P-CH 60V 100A TO263

In Stock:: 2630

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NP100P06PDG-E1-AY Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
6mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2.5V @ 1mA
GateCharge(Qg)(Max)@Vgs:
300 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
15000 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
1.8W (Ta), 200W (Tc)
OperatingTemperature:
175°C (TJ)
MountingType:
Surface Mount

NP100P06PDG-E1-AY this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NP100P06PDG-E1-AY price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NP100P06PDG-E1-AY to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NP100P06PDG-E1-AY information

Views：

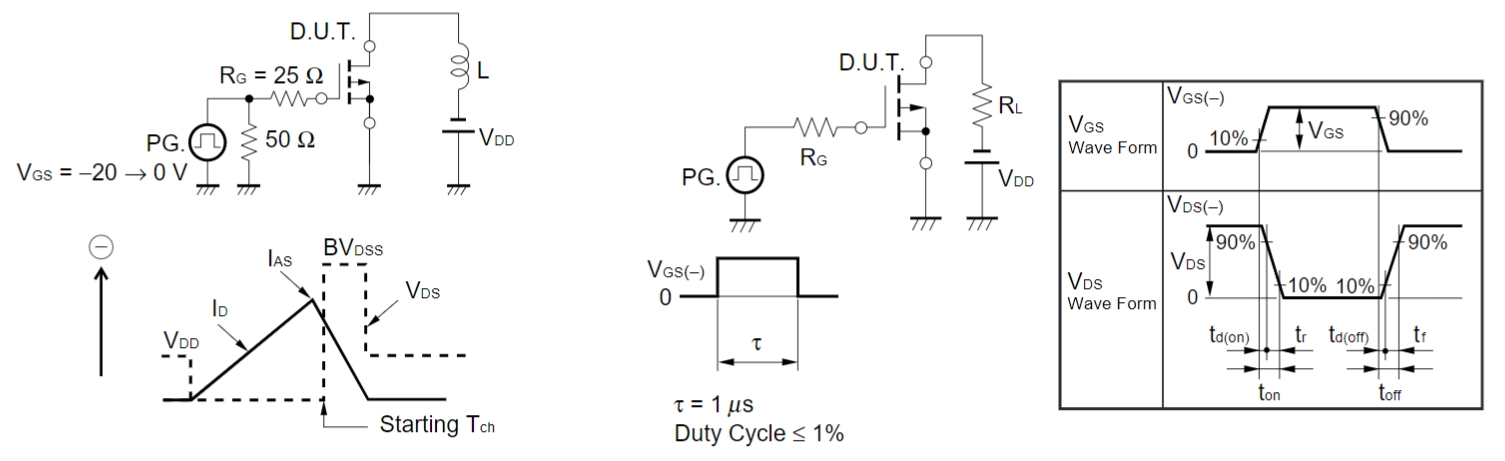

NP100P06PDG-E1-AY Typical application Circuitry

NP100P06PDG-E1-AY

The NP100P06PDG-E1-AY is a P-channel MOSFET designed for high-efficiency power management applications. These devices are commonly used in power conversion and switching applications due to their ability to handle high currents and voltages with relatively low on-resistance, resulting in reduced power loss and improved efficiency.

Application Scenario: Solar Power Charge Controller

In a solar power charge controller, the NP100P06PDG-E1-AY can be used to regulate the charging of a battery from solar panels, ensuring that the battery is charged efficiently and protected from overcharging. The excellent power handling capabilities and great efficiency of the MOSFET are advantageous for this application.

Key Parameters and Features:

- P-Channel: The P-channel configuration allows for simpler gate drive circuits in high-side switching applications.

- Low On-Resistance (Rds(on)): Minimizes power losses during operation, improving overall efficiency.

- High Drain-Source Voltage (Vds): Suitable for handling the voltages typically found in solar power systems.

- High Continuous Drain Current (Id): Capable of supporting the current levels required for charging batteries.

- Enhanced Durability: Engineered for reliability in harsh environments, making it suitable for outdoor applications like solar charge controllers.

Detailed Circuit Connection for a Solar Power Charge Controller:

- Connection to Solar Panel: The source terminal of the NP100P06PDG-E1-AY is connected to the positive terminal of the solar panel array. With this configuration, the MOSFET is able to regulate how much current flows from the solar panels to the battery.

- Battery Charging Path: The drain terminal is connected to the positive terminal of the battery through a current-sensing resistor. This resistor is used to monitor the charging current, providing feedback for regulating the charge.

- Gate Drive Circuit: A gate driver is connected to the gate terminal of the NP100P06PDG-E1-AY. The driver controls the turning on and off of the MOSFET based on the charge controller's logic, which is typically managed by a microcontroller. The gate drive circuit must provide sufficient voltage to fully turn off the P-channel MOSFET, considering the gate-source threshold voltage.

- Protection Diode: A protection diode is placed between the drain and source terminals (anode to the drain, cathode to the source) to prevent reverse currents that could damage the battery or the MOSFET when the solar panels are not generating power.

Design Considerations:

- Heat Management: The NP100P06PDG-E1-AY can dissipate heat during operation, especially under high current flow. Incorporating adequate heat sinking or cooling mechanisms is essential to prevent thermal runaway.

- Gate Drive Voltage: To properly switch on and off the NP100P06PDG-E1-AY without causing damage to the gate oxide layer, make sure the gate drive voltage is within the designated range.

- Voltage and Current Ratings: Select a MOSFET with voltage and current ratings that exceed the maximum expected from the solar panels and the charging current to the battery, providing a safety margin.

- Protection Features: Implement overvoltage, overcurrent, and thermal protection in the charge controller circuit to safeguard the battery, the MOSFET, and the solar panels.

- EMI Considerations: Switching circuits can generate electromagnetic interference (EMI). Design the PCB layout to minimize EMI, using techniques like proper grounding, minimizing loop areas, and using filters where necessary.

Utilizing the NP100P06PDG-E1-AY in a solar power charge controller highlights the MOSFET's capabilities in managing high currents and voltages efficiently, making it an excellent choice for renewable energy applications where reliability and efficiency are paramount.
