ON Semiconductor NDT2955

Part No.:: NDT2955

Manufacturer:: ON Semiconductor

Package:: SOT-223-4

Datasheet:: NDT2955.pdf

Description:: MOSFET P-CH 60V 2.5A SOT-223-4

In Stock:: 2648

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NDT2955 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
2.5A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
300mOhm @ 2.5A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
15 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
601 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

NDT2955 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NDT2955 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NDT2955 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NDT2955 information

Views：

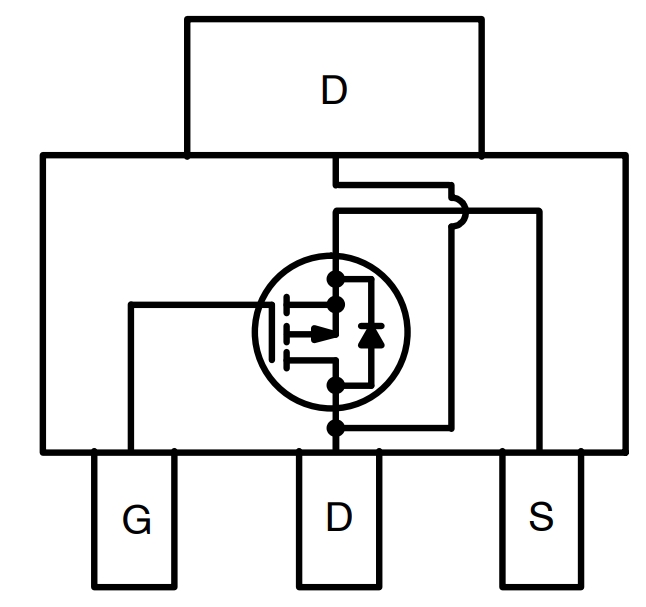

NDT2955 Typical application Circuitry

NDT2955

A P-Channel MOSFET (Metal Oxide Semiconductor Field-Effect Transistor) is what the NDT2955 is. Electronic signal switching and amplification are frequent uses for this kind of transistor in a variety of applications.

Applications:

The NDT2955 can be found in power management tasks within electronic circuits. Typical use cases include load switching, DC-DC converters, and as part of the H-bridge circuits for motor control.

Parameter Features:

- Drain-to-Source Voltage (Vdss): This value indicates the maximum voltage the MOSFET can tolerate between the drain and the source terminals when the gate is turned off.

- Current - Continuous Drain (Id) @ 25°C: Reflects the maximum continuous current the device can handle through the drain when in operation.

- Rds On (Max) @ Id, Vgs: This is the resistance between the drain and the source when the transistor is turned on. It is specified at a certain drain current and gate-source voltage.

- Vgs(th) (Max) @ Id: The voltage at which the MOSFET starts to switch on, the maximum gate-source threshold.

Load switching in an example circuit:

1. Supply Voltage to Drain: Connect the positive terminal of your power supply to the Drain (pin 2) of the NDT2955.

2. Load Connection to Source: Connect the Source (pin 1) to one end of your load (e.g., a motor or an LED).

3. Ground Load: Connect the other end of your load to the ground.

4. Gate Control: Attach a resistor (value depends on your application) between the Gate (pin 3) and the ground to ensure that the MOSFET turns off when not in use. To switch on the load, apply a negative voltage to the Gate.

Design Considerations:

1. Thermal Management: Ensure adequate heat dissipation, possibly with heatsinks, to prevent the MOSFET from overheating.

2. Gate Drive Voltage: To activate this P-Channel MOSFET, a negative voltage relative to the Source is needed.

3. Maximum Ratings: Always stay within the maximum ratings for voltage, current, and power to avoid damaging the NDT2955.

4. Protection: Include protection mechanisms such as flyback diodes when inductive loads are being switched to prevent voltage spikes.

Using the NDT2955 in a load-switching application is a common scenario, demonstrating its versatility in various electronic circuits. Always refer to the specific datasheet for the most accurate and detailed information when designing your circuit.
