Name: IXFK44N80P
Brand: IXYS
SKU: IXFK44N80P
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

IXYS IXFK44N80P

Part No.:: IXFK44N80P

Manufacturer:: IXYS

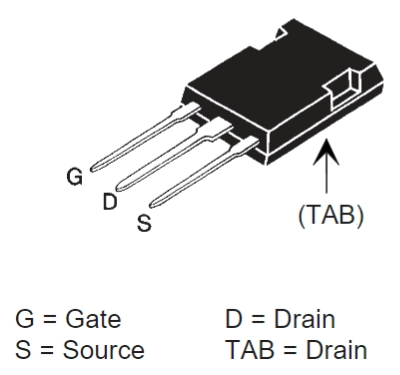

Package:: TO-264AA (IXFK)

Datasheet:: IXFK44N80P.pdf

Description:: MOSFET N-CH 800V 44A TO264AA

In Stock:: 600

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IXFK44N80P Specifications

Packaging:
Tube
Series:
HiPerFET™, Polar
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
800 V
Current-ContinuousDrain(Id)@25°C:
44A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
190mOhm @ 22A, 10V
Vgs(th)(Max)@Id:
5V @ 8mA
GateCharge(Qg)(Max)@Vgs:
198 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
12000 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
1040W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole

IXFK44N80P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IXFK44N80P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IXFK44N80P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IXFK44N80P information

Views：

IXFK44N80P Typical application Circuitry

IXFK44N80P

The IXFK44N80P is a high-voltage, high-current Power MOSFET designed for applications requiring efficient power conversion and switching. This component is widely used in power supplies, motor control, and inverter circuits due to its ability to handle significant power levels with high efficiency and speed.

Application Scenario

A common application for the IXFK44N80P is in a High-Power Inverter Circuit, such as those used in renewable energy systems (solar panels, wind turbines) to convert DC power to AC power for grid integration or standalone systems.

Key Parameters

- High Breakdown Voltage: The IXFK44N80P has a high breakdown voltage, typically around 800V, making it suitable for high-voltage applications.

- High Current Capability: It can handle high currents, up to tens of Amperes, facilitating its use in high-power circuits.

- Low On-Resistance: Features low on-resistance, which minimizes power loss during switching and conduction, enhancing overall efficiency.

- Fast Switching Speed: The fast switching capability of the IXFK44N80P reduces transition losses, further improving efficiency in high-frequency applications.

High-Power Inverter Circuit Design

Designing a high-power inverter circuit with the IXFK44N80P involves careful consideration of several key aspects:

1. Gate Drive Configuration: Connect the gate of the IXFK44N80P to a gate driver circuit capable of providing the required voltage and current to switch the MOSFET effectively. This connection is crucial for achieving fast and efficient switching.

2. Drain and Source Connections: The drain of the IXFK44N80P should be connected to the high-voltage DC supply through an inductive load, while the source connects to the circuit ground. This setup is essential for the flow of current when the MOSFET is in the 'on' state.

3. Snubber Circuit: Implementing a snubber circuit across the drain-source terminals can protect the IXFK44N80P from voltage spikes caused by inductive loads, enhancing reliability.

4. Heat Management: Given the high power levels, attaching the IXFK44N80P to a heat sink with adequate thermal management is essential to dissipate heat efficiently and maintain performance.

Circuit Design Considerations

- Parasitic Inductance and Capacitance: Minimizing parasitic inductance and capacitance in the circuit layout is crucial to prevent oscillations and ensure stable operation of the IXFK44N80P.

- Gate Resistor: Including a resistor in series with the gate can help dampen oscillations and improve switching behavior, but its value must be carefully selected to balance switching speed and stability.

- Protection Features: Incorporating over-voltage, over-current, and over-temperature protection can safeguard the IXFK44N80P and the overall circuit from extreme conditions that might lead to failure.

- PCB Layout: Ensuring a low-inductance PCB layout, especially in the connections between the IXFK44N80P, the gate driver, and the load, is essential for optimal performance and minimizing electromagnetic interference (EMI).

By thoroughly addressing these considerations, a robust and efficient high-power inverter can be realized, leveraging the IXFK44N80P's capabilities to meet the demanding requirements of high-voltage and high-power applications.
