Infineon Technologies IRLR8726TRPBF

Part No.:: IRLR8726TRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRLR8726TRPBF.pdf

Description:: MOSFET N-CH 30V 86A DPAK

In Stock:: 58703

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLR8726TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
86A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
5.8mOhm @ 25A, 10V
Vgs(th)(Max)@Id:
2.35V @ 50µA
GateCharge(Qg)(Max)@Vgs:
23 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
2150 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
75W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRLR8726TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLR8726TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLR8726TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRLR8726TRPBF information

Views：

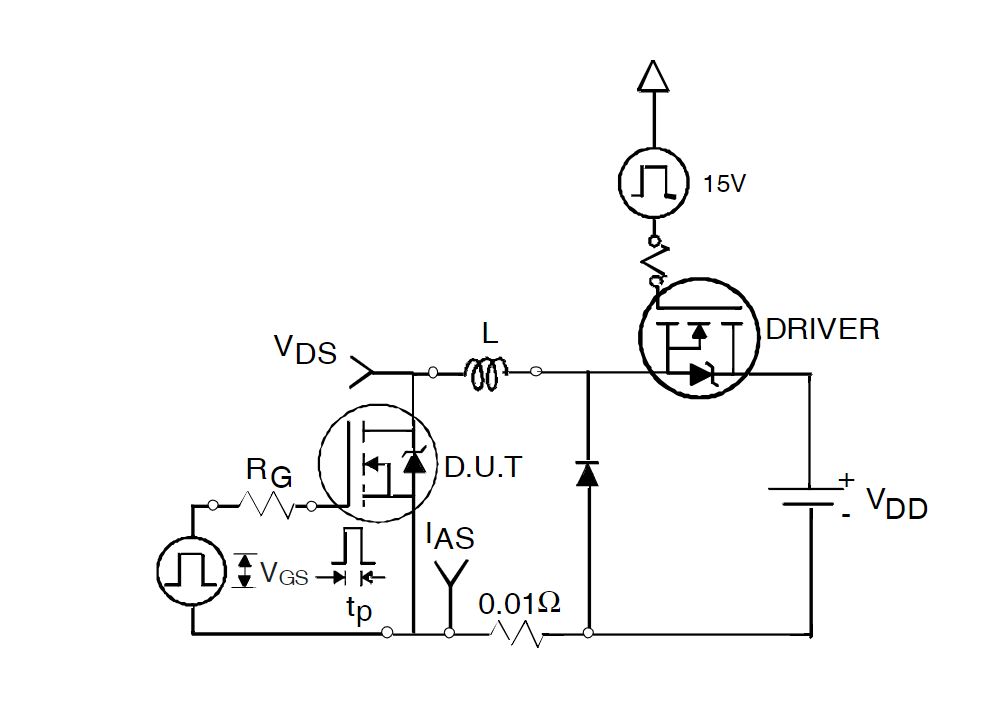

IRLR8726TRPBF Typical application Circuitry

IRLR8726TRPBF

The IRLR8726TRPBF, emblematic of International Rectifier's HEXFET® Power MOSFET series, stands out as a high-performance N-channel device. Renowned for its remarkably low on-resistance and versatile switching characteristics, the IRLR8726TRPBF finds utility in a plethora of high-efficiency applications. A deeper dive into this particular device necessitates an intimate understanding of its pin layout and an extensive guide on circuit interfacing.

1. Drain (D): This is the terminal through which current exits the MOSFET when it is turned on. Depending on the application, it typically connects either directly to a load or to the positive terminal of the power supply, especially when employed as a low-side switch.

2. Gate (G): This pivotal terminal is tasked with controlling the MOSFET's operational state. When a voltage above the threshold is applied to the Gate (with respect to the Source), the MOSFET activates, allowing current to flow from Drain to Source. For accurate control, connect this pin to a microcontroller, PWM generator, or another driver circuit. Remember to integrate a resistor between the driver output and the Gate to prevent excessive current during transitions, which can be detrimental to the IRLR8726TRPBF.

3. Source (S): Typically linked to the circuit's ground, this terminal serves as the reference point for the Gate voltage and provides the current return path when the MOSFET is activated.

4. Optimal Circuit Integration Insights:

- Gate Control: Implement a pull-down resistor on the Gate to ensure that the IRLR8726TRPBF remains off during initial power-up or if the driving signal becomes high-impedance.

- Protection against Voltage Surges: Safeguard the IRLR8726TRPBF by introducing a zener diode across the Gate and Source. This mechanism will limit any inadvertent voltage spikes, preserving the integrity of the MOSFET.

- Thermal Considerations: Given that MOSFETs, including the IRLR8726TRPBF, can accrue heat under intense current operations, it's vital to equip the device with adequate heat sinking or thermal pads, especially when operating near its maximum current ratings.

- Prototyping and Testing: Before committing to a full-scale deployment, construct a prototype to assess the functionality of the IRLR8726TRPBF within the designated application. This preliminary phase allows for the detection and rectification of potential anomalies.
