Name: IRLR7843TRPBF
Brand: Infineon Technologies
SKU: IRLR7843TRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IRLR7843TRPBF

Part No.:: IRLR7843TRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRLR7843TRPBF.pdf

Description:: MOSFET N-CH 30V 161A DPAK

In Stock:: 2300

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLR7843TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
161A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
3.3mOhm @ 15A, 10V
Vgs(th)(Max)@Id:
2.3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
50 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4380 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
140W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRLR7843TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLR7843TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLR7843TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRLR7843TRPBF information

Views：

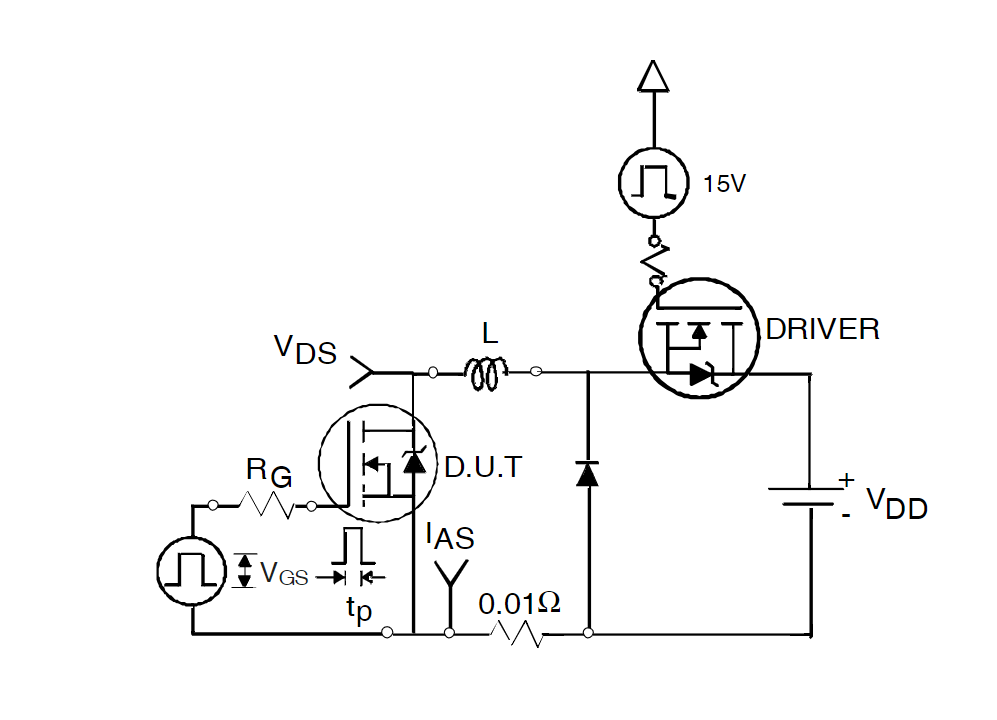

IRLR7843TRPBF Typical application Circuitry

IRLR7843TRPBF

The IRLR7843TRPBF, part of the esteemed HEXFET® power MOSFET portfolio, is an N-channel device known for its low on-resistance and high density, incorporating the latest MOSFET technology to ensure maximum power efficiency and robustness. Embedded within the IRLR7843TRPBF are features tailored for high performance in diverse applications, demanding precise electrical characteristics and reliability. This component's unique specifications necessitate an in-depth exploration of its pin configuration and the subtleties involved in embedding it into a circuit.

1. Drain (D): Acting as the output, the Drain is where the current flows out. This terminal connects to the component (such as a motor, solenoid, or the input side of another stage of the circuit) that the MOSFET is powering. Considering the high-current nature of this pin, the connection must be robust, ensuring minimal voltage drop and thermal control under load.

2. Gate (G): The Gate is the control terminal. This pin doesn't draw continual current, only a small charge to switch. It connects to the output pin of the controlling device, like a microcontroller, potentially through a gate driver if high speed or high current is required for switching. To protect the MOSFET, a gate resistor is often used, ensuring controlled switching and preventing oscillations or ringing.

3. Source (S): The Source pin is the current supply terminal for the MOSFET. Typically, it's connected to the ground or the lower potential side of the power supply (depending on the configuration), forming the reference point for the Gate voltage.

4. Advanced Integration Strategies:

- Gate-Source Resistors: For stability, especially when the controlling signal is absent, a pull-down resistor might be connected between the Gate and Source to ensure the MOSFET remains off when not intentionally triggered.

- Flyback Diode Protection: When driving inductive loads like motors or solenoids with the IRLR7843TRPBF, a diode connected across the load will clamp and safely dissipate voltage spikes caused by inductive kickback, protecting the MOSFET.

- Thermal Considerations: The IRLR7843TRPBF can handle significant current, which might lead to substantial heat generation. Proper heat dissipation strategies, such as using a heatsink or ensuring good PCB layout for thermal relief, are crucial.

- Gate Protection: Transient Voltage Suppressors (TVS) or zener diodes between the Gate and Source can help manage voltage spikes, protecting against gate oxide breakdown.

- Verification of Operation Parameters: Cross-referencing operational conditions with the IRLR7843TRPBF's datasheet ensures that voltage ratings, current handling, and thermal performance are within specified limits, preventing component stress or failure.

5. Circuit Analysis and Debugging: Post-integration, a rigorous testing protocol at safe operating conditions is paramount to validate performance. Monitoring the IRLR7843TRPBF's behavior under various load scenarios will affirm proper operation within its defined parameters.
