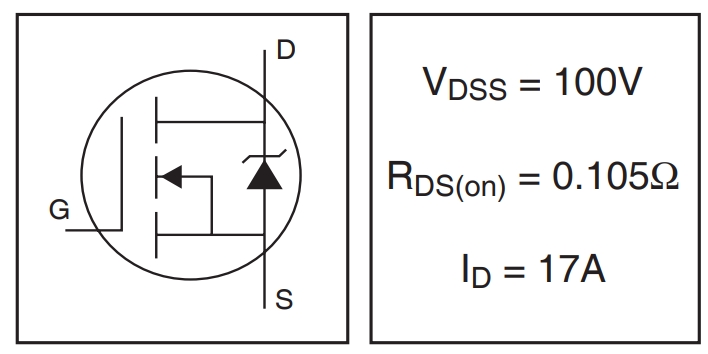

Infineon Technologies IRLR3410TRPBF

Part No.:: IRLR3410TRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRLR3410TRPBF.pdf

Description:: MOSFET N-CH 100V 17A DPAK

In Stock:: 18548

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLR3410TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
17A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4V, 10V
RdsOn(Max)@IdVgs:
105mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
34 nC @ 5 V
Vgs(Max):
±16V
InputCapacitance(Ciss)(Max)@Vds:
800 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
79W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRLR3410TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLR3410TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLR3410TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRLR3410TRPBF information

Views：

IRLR3410TRPBF Typical application Circuitry

IRLR3410TRPBF

The IRLR3410TRPBF is a Power MOSFET transistor designed for high-efficiency switching applications. Manufactured by Infineon Technologies (formerly part of International Rectifier), this component is known for its low on-state resistance and high current handling capability, making it an excellent choice for power conversion and management tasks in electronic circuits.

Application Scenarios

The IRLR3410TRPBF is widely utilized in various applications such as DC-DC converters, motor drives, power supplies, and other power management circuits where efficient switching and high current capacity are required. Its robustness and efficiency make it suitable for both industrial and consumer electronics.

Parameter Features

Key features of the IRLR3410TRPBF include:

- Drain-Source Voltage (Vds): High voltage rating, allowing it to handle common industrial and automotive power levels.

- Continuous Drain Current (Id): Suitable for heavy-duty applications, it can support large current levels.

- Rds(on): Low on-state resistance, minimizing power losses during operation and improving overall efficiency.

- packaging: For compact designs with good thermal performance, it is available in a D-Pak (TO-252) packaging.

Circuit Connection Example: DC Motor Control

In a DC motor control application, the IRLR3410TRPBF can be used as a switch in an H-bridge configuration to control the direction and speed of the motor.

1. Gate Drive Connection: The Gate pin (pin 1) should be connected to the PWM output of a microcontroller or a dedicated driver IC through a gate resistor.In addition to regulating switching speed, this resistor shields the gate from spikes in voltage. 2. Drain Connection: One of the motor terminals is linked to the Drain pin (pin 2). This pin will switch the high current required by the motor.

3. Source Connection: The system ground should be connected to pin 3, which is the source. This establishes a return path for the motor current.

4. Flyback Diode: A flyback diode should be connected across the motor terminals, with the cathode at the Drain side. This diode protects the IRLR3410TRPBF from voltage spikes generated by the inductive load of the motor during switching.

5. Decoupling Capacitor: Place a capacitor close to the power supply pins of the motor control circuit to filter out noise and provide a stable power supply, enhancing the performance and reliability of the IRLR3410TRPBF.

Design Considerations

When incorporating the IRLR3410TRPBF into a circuit, several critical factors must be considered:

- Heat Dissipation: Ensure adequate heat sinking for the IRLR3410TRPBF to handle the heat generated during high current operation, maintaining its performance and reliability.

- Gate Drive Voltage: The gate drive voltage should be chosen carefully to fully turn on the MOSFET without exceeding its maximum gate-source voltage rating, optimizing the efficiency and preventing damage.

- Switching Frequency: Taking into account the gate charge and switching losses of the IRLR3410TRPBF, the switching frequency should be set to balance efficiency and thermal performance.

- Protection Features: Implement protection mechanisms such as over-current, over-voltage, and thermal shutdown in the control circuitry to safeguard the MOSFET and the motor from potential damage.

By addressing these considerations and properly utilizing the IRLR3410TRPBF in a DC motor control circuit, designers can achieve efficient, reliable, and precise motor management suitable for a broad range of applications.
