Infineon Technologies IRLR024NTRPBF

Part No.:: IRLR024NTRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRLR024NTRPBF.pdf

Description:: MOSFET N-CH 55V 17A DPAK

In Stock:: 93513

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLR024NTRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
55 V
Current-ContinuousDrain(Id)@25°C:
17A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4V, 10V
RdsOn(Max)@IdVgs:
65mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
15 nC @ 5 V
Vgs(Max):
±16V
InputCapacitance(Ciss)(Max)@Vds:
480 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
45W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRLR024NTRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLR024NTRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLR024NTRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRLR024NTRPBF information

Views：

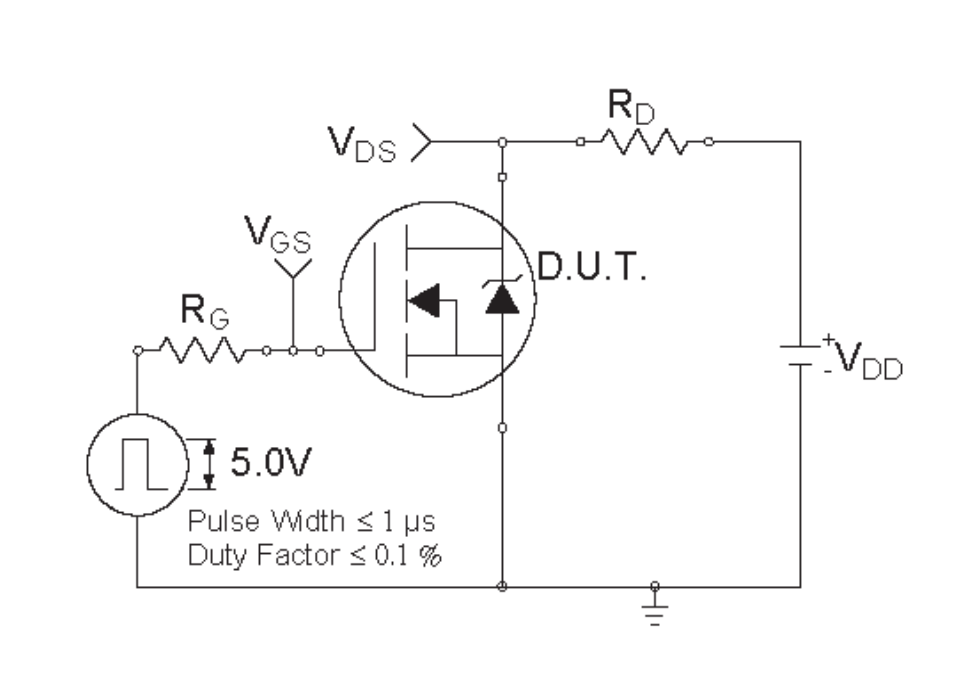

IRLR024NTRPBF Typical application Circuitry

IRLR024NTRPBF

The IRLR024NTRPBF is a distinguished component hailing from International Rectifier's esteemed HEXFET power MOSFET series. Acknowledged for its outstanding efficiency, the IRLR024NTRPBF brings forth a combination of swift switching, ruggedness, and thermal robustness, making it suitable for various high-performance applications. A thorough appreciation of the IRLR024NTRPBF encompasses both a grasp of its series lineage and a detailed comprehension of its integration into circuits.

1. Gate (G): As the controlling pin, the Gate regulates the flow of current between the Drain and Source. Depending on the input signal (usually a PWM or digital signal), the Gate will turn the MOSFET on or off. When designing circuits with the IRLR024NTRPBF, consider integrating a gate resistor in line with the Gate terminal. This can assist in modulating the turn-on and turn-off times, reducing potential interference and noise.

2. Drain (D): As the output pin, the Drain usually connects to one side of the load. Depending on the circuit configuration (high-side or low-side switch), the other end of the load would either link to the positive terminal of the power source or to ground. Given the IRLR024NTRPBF's N-channel nature, it's frequently used in low-side switching where the Drain attaches directly to the load and the load's other end connects to the positive power supply.

3. Source (S): Often regarded as the ground reference point, the Source pin typically joins with the circuit's ground. Especially in low-side switching applications, the Source connects directly to the ground, solidifying its status as the current return path.

4. Enriched Connection Recommendations:

- Gate Drive Circuitry: When integrating the IRLR024NTRPBF into a system, ensure that the driving signal's voltage levels align with the MOSFET's threshold. This might necessitate a dedicated MOSFET driver or a transistor-based driver circuit.

- Protective Measures: To shield the IRLR024NTRPBF from potential over-voltage situations at the Gate, consider the inclusion of a zener diode between the Gate and Source. This setup helps in clamping excess voltage, thus maintaining the Gate's voltage within safe limits.

- Heat Dissipation: Notwithstanding its efficiency, the IRLR024NTRPBF can accumulate heat under high-current conditions. Implement thermal management solutions, such as heat sinks, and ensure proper airflow to facilitate effective heat dissipation.

- Flyback Diode Consideration: If your load is inductive (like motors or relays), it's crucial to incorporate a flyback diode across the load. This addition counters voltage spikes resulting from the inductive load's inherent behavior, protecting the IRLR024NTRPBF from potential damage.

To encapsulate, the IRLR024NTRPBF signifies a blend of reliability and performance, attributes emblematic of the HEXFET series. When assimilating this component into designs, an assiduous approach, combined with rigorous referencing of its datasheet, will maximize the advantages offered by the IRLR024NTRPBF. As a pivotal element in circuitry, ensuring its optimal operation is tantamount to ensuring the entire system's efficacy.
