Infineon Technologies IRLML0040TRPBF

Part No.:: IRLML0040TRPBF

Manufacturer:: Infineon Technologies

Package:: Micro3™/SOT-23

Datasheet:: IRLML0040TRPBF.pdf

Description:: MOSFET N-CH 40V 3.6A SOT23

In Stock:: 78630

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRLML0040TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
3.6A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
56mOhm @ 3.6A, 10V
Vgs(th)(Max)@Id:
2.5V @ 25µA
GateCharge(Qg)(Max)@Vgs:
3.9 nC @ 4.5 V
Vgs(Max):
±16V
InputCapacitance(Ciss)(Max)@Vds:
266 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
1.3W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRLML0040TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRLML0040TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRLML0040TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRLML0040TRPBF information

Views：

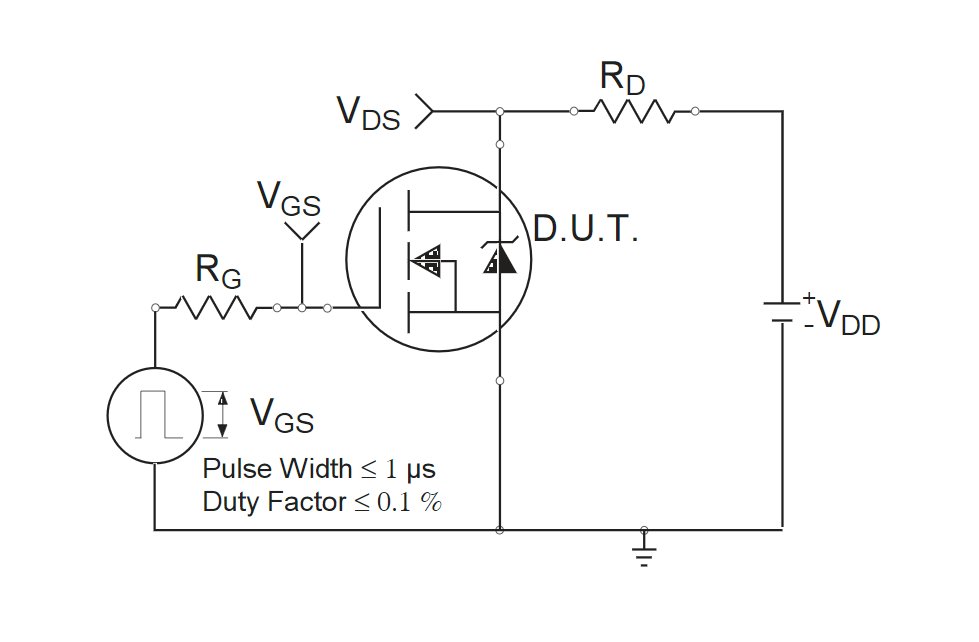

IRLML0040TRPBF Typical application Circuitry

IRLML0040TRPBF

The IRLML0040TRPBF, a product stemming from the renowned HEXFET® Power MOSFET family, is an N-channel enhancement mode field effect transistor. This device is emblematic of the precision engineering associated with the HEXFET lineup, optimized for low voltage applications. The compactness and the intrinsic low on-resistance of the IRLML0040TRPBF have rendered it an essential component for countless miniaturized, high-performance circuits. Let's journey through the essential facets of this device, focusing on its circuit integration nuances.

1. Gate (G):

- This pin acts as the control terminal. By applying a voltage to the Gate (relative to the Source), you determine whether the MOSFET is active (ON) or not (OFF). A driving signal, typically originating from a microcontroller or another logic source, should be applied here.

- It's often prudent to connect a pull-down resistor from the Gate to Source, ensuring the IRLML0040TRPBF stays off during undefined states, such as system start-up.

2. Drain (D): The Drain terminal is essentially the "output" for this device. In a typical application, this pin would connect to a component or a collection of components that the MOSFET is tasked with powering or controlling. It's where the current flows out when the device is active.

3. Source (S): This is the "ground" or return path terminal for the MOSFET. When laying out your circuit, the Source pin should be connected to your system's ground or a particular reference point, from which the current returns.

4. Valuable Tips for Effective IRLML0040TRPBF Deployment:

- Protection Mechanism: The delicate nature of MOSFET gates necessitates protection against potential electrostatic damage. A zener diode, placed between the Gate and Source, can act as a shield against voltage spikes, ensuring the gate voltage doesn't exceed the IRLML0040TRPBF's recommended thresholds.

- Thermal Management: The IRLML0040TRPBF, like all semiconductors, will generate heat under load. Even if the device is hailed for its efficiency, keeping an eye on temperature and using heat dissipation methods (like heat sinks or thermal pads) where necessary can prolong the MOSFET's lifespan.

- Signal Integrity: For faster switching applications, consider placing a small resistor (often in the range of 10-100Ω) between the Gate driving source and the Gate pin. This aids in damping potential oscillations and maintaining signal integrity.

- Safety Precautions: Before finalizing the circuit, ensure that the applied Gate-Source and Drain-Source voltages never breach the limits prescribed in the IRLML0040TRPBF datasheet. Overvoltage can lead to permanent device damage.

In summation, the IRLML0040TRPBF is a testament to modern electronics' drive for efficiency and miniaturization. The strategic deployment of this MOSFET can lead to significant enhancements in circuit performance and energy conservation. As with any electronic component, a rigorous understanding of the device's datasheet and adherence to its stipulated operating parameters is the cornerstone of building reliable and high-performing systems with the IRLML0040TRPBF.
