Name: IRFZ24NPBF
Brand: Infineon Technologies
SKU: IRFZ24NPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IRFZ24NPBF

Part No.:: IRFZ24NPBF

Manufacturer:: Infineon Technologies

Package:: TO-220AB

Datasheet:: IRFZ24NPBF.pdf

Description:: MOSFET N-CH 55V 17A TO220AB

In Stock:: 26488

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFZ24NPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
55 V
Current-ContinuousDrain(Id)@25°C:
17A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
70mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
20 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
370 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
45W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRFZ24NPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFZ24NPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFZ24NPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFZ24NPBF information

Views：

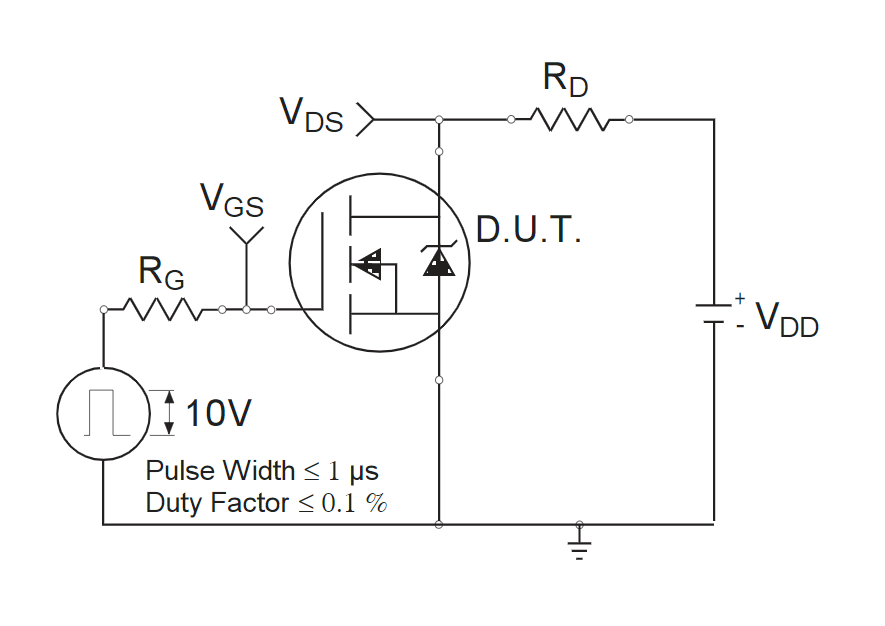

IRFZ24NPBF Typical application Circuitry

IRFZ24NPBF

The IRFZ24NPBF stands as a commendable addition to the esteemed HEXFET power MOSFET lineage from International Rectifier. Representing the culmination of advanced silicon technology and refined design methodologies, the IRFZ24NPBF is an N-channel MOSFET, revered for its robustness, efficiency, and outstanding thermal performance. Let's embark on a deep dive into this MOSFET's distinct attributes, with a focus on the intricate nuances of the IRFZ24NPBF's circuit connections.

1. Gate (G): The Gate, often likened to the gatekeeper of the transistor, holds the key to modulating the flow between the Drain and Source. Typically, this pin is linked to the output from a microcontroller, PWM controller, or other driver mechanisms. For the sake of stability, especially in scenarios involving swift switching, incorporating a gate resistor is advised, which sits between the controlling source and the Gate, curbing oscillations and damping potential noise.

2. Drain (D): This terminal is primarily the exit route for current. When integrating the IRFZ24NPBF in circuits, it's routine to link the Drain directly to the load. Subsequent to this, the other side of the load either connects to the positive end of the power supply (for top-side switching designs) or merges with the circuit's ground (in bottom-side switching layouts).

3. Source (S): This pin forms the current's entrance gateway. In mainstream configurations, especially in low-side switching designs, the Source binds directly to the circuit's ground. However, for high-side switch configurations, the Source interfaces with the load.

4. Key Circuit Integration Insights:

- Gate Drive Dynamics: The IRFZ24NPBF, being a power MOSFET, necessitates a specific voltage range to transition between its on and off states. To guarantee seamless switching, ensuring that the Gate receives the right voltage level is vital. This often implies deploying a gate driver or level shifter, especially if the control source operates at a different voltage.

- Defensive Measures: Shield the IRFZ24NPBF against potential over-voltage mishaps on the Gate by instituting a zener diode, bridging the Gate and Source. This protective strategy clips the voltage, safeguarding the MOSFET from any inadvertent voltage spikes.

- Thermal Considerations: Given the IRFZ24NPBF's proclivity for heat generation during high-current stints, executing proficient heat management measures becomes indispensable. Implementing heat sinks, while also keeping an eye on the ambient thermal conditions, ensures the MOSFET's consistent and reliable operation.

- Operational Verification: After integrating the IRFZ24NPBF into the circuit, instituting a thorough review in a controlled environment is paramount. This step ensures the MOSFET's performance aligns with the design's objectives, pre-empting any potential operational hiccups.

In essence, the IRFZ24NPBF represents a paradigm of engineering excellence, combining power and precision. When integrating this MOSFET, a harmonious blend of careful planning, respect for its specifications, and adherence to best practices is the formula for success. For nuanced deployments, consulting the IRFZ24NPBF datasheet and seeking expert counsel can further amplify the MOSFET's potential in circuit designs.

IRFZ24NPBF FAQ

1. How to order IRFZ24NPBF on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that IRFZ24NPBF is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the IRFZ24NPBF. All suppliers must pass our qualification reviews before they can publish their products including IRFZ24NPBF on icwhale.com; we pay more attention to the channels and quality of IRFZ24NPBF products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the IRFZ24NPBF price and inventory displayed accurate?

The price and inventory of IRFZ24NPBF fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of IRFZ24NPBF?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the IRFZ24NPBF we delivered, we will accept the replacement or return of the IRFZ24NPBF only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of IRFZ24NPBF.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
