Infineon Technologies IRFS4115TRLPBF

Part No.:: IRFS4115TRLPBF

Manufacturer:: Infineon Technologies

Package:: D2PAK

Datasheet:: IRFS4115TRLPBF.pdf

Description:: MOSFET N-CH 150V 195A D2PAK

In Stock:: 3919

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFS4115TRLPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
195A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
12.1mOhm @ 62A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
120 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5270 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
375W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRFS4115TRLPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFS4115TRLPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFS4115TRLPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFS4115TRLPBF information

Views：

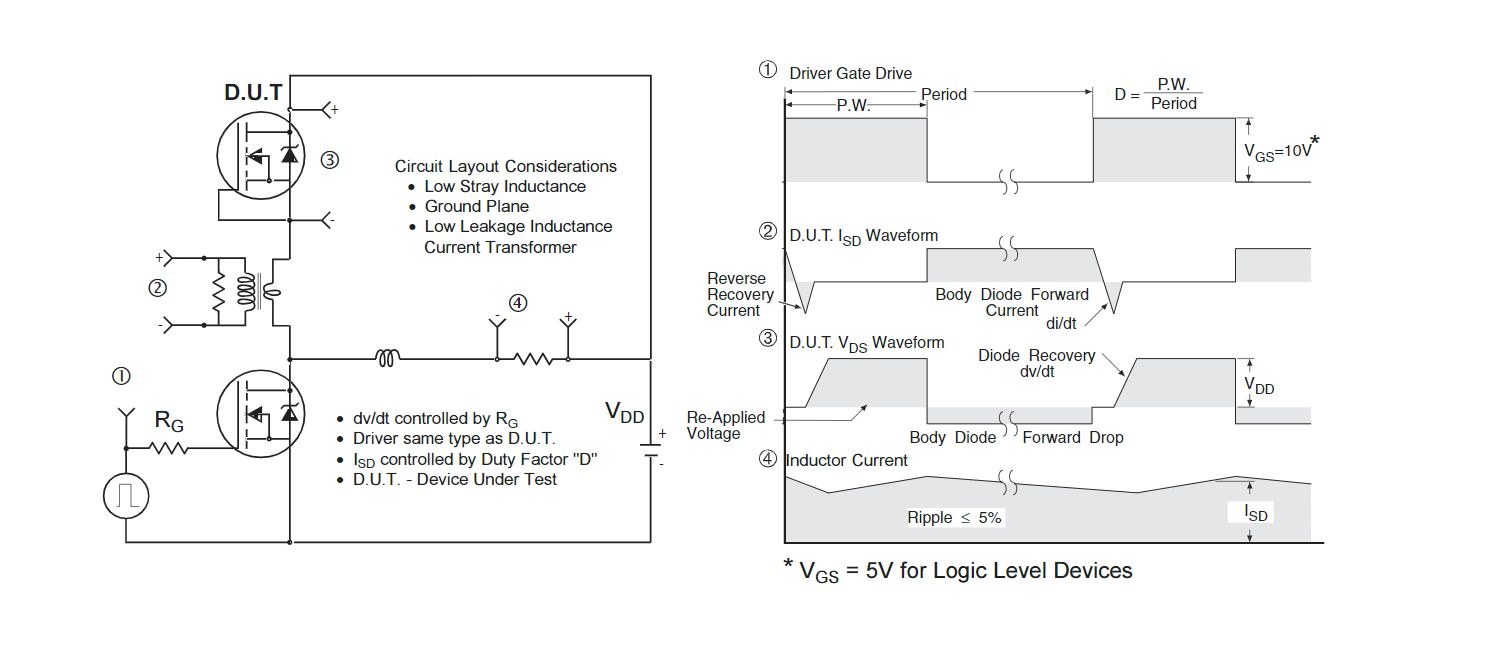

IRFS4115TRLPBF Typical application Circuitry

IRFS4115TRLPBF

The IRFS4115TRLPBF is a distinguished member of the HEXFET power MOSFET line-up from International Rectifier. Renowned for its compact design, reliability, and enhanced power efficiency, this N-channel MOSFET stands as an epitome of state-of-the-art silicon gate technology. Harnessing the true potential of the IRFS4115TRLPBF is contingent upon a profound comprehension of its pins and how to seamlessly incorporate them into circuits.

1. Gate (G): As the command center, the Gate controls the IRFS4115TRLPBF's conductive state. Typically, the Gate interfaces with the control or signal source, such as a microcontroller or pulse-width modulation (PWM) generator. A series gate resistor is advisable, stationed between the control signal and the Gate. This resistor modulates the gate charge and discharge rates, thus providing a safeguard against oscillatory behaviors and optimizing switching performance.

2. Drain (D): Being the primary current-carrying terminal, the Drain usually establishes a connection with the load. In configurations where the IRFS4115TRLPBF acts as a low-side switch, the Drain will link directly to the negative terminal of the load, with the load's other terminal connected to the positive rail. Conversely, in high-side configurations, the Drain associates with the positive power supply.

3. Source (S): Often tethered to the ground in low-side switch deployments, the Source pin serves as the current's exit point from the MOSFET. For high-side configurations, the Source forms a direct bond with the load.

4. Pro Tips for Circuit Integration:

- Gate Protection: To safeguard the IRFS4115TRLPBF against potential electrostatic discharges or transient spikes, deploying a zener diode between the Gate and Source is wise. This diode caps the gate voltage, ensuring it doesn't surpass the MOSFET's ratings.

- Thermal Considerations: Even though the IRFS4115TRLPBF is designed for efficiency, under strenuous conditions, heat generation can be significant. Thus, integrating a heat sink or ensuring efficient thermal pathways is pivotal for durability and optimal functioning.

- Monitoring Circuitry: For complex applications, integrating current-sensing resistors or voltage feedback mechanisms can be instrumental. Such elements provide insights into the MOSFET's real-time operation, facilitating diagnostics and performance tuning.

To draw a conclusion, the IRFS4115TRLPBF, with its unparalleled efficiency and robustness, is a formidable choice for various power management and switching applications. Yet, to fully unleash its capabilities, one must approach circuit design with diligence, precision, and a deep-rooted understanding of the component. Keeping the datasheet of the IRFS4115TRLPBF within arm's reach during design and testing phases is highly recommended to ensure the most accurate and safe implementation.
