Infineon Technologies IRFR6215TRPBF

Part No.:: IRFR6215TRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRFR6215TRPBF.pdf

Description:: MOSFET P-CH 150V 13A DPAK

In Stock:: 3439

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFR6215TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
13A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
295mOhm @ 6.6A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
66 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
860 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
110W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRFR6215TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFR6215TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFR6215TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFR6215TRPBF information

Views：

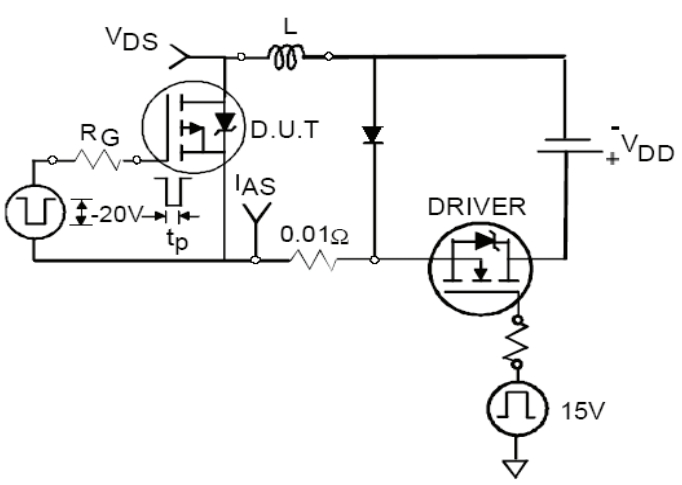

IRFR6215TRPBF Typical application Circuitry

IRFR6215TRPBF

The IRFR6215TRPBF is a P-channel MOSFET known for its efficiency in switching applications. Its attributes make it a prime choice for tasks involving power management, motor control, and load switching.

Notable Characteristics:

1. Efficient Conductivity: With a low R_DS(on), the IRFR6215TRPBF ensures minimal power loss during operation, enhancing overall system efficiency.

2. Voltage Endurance: This MOSFET can handle substantial voltage levels, broadening its applicability in diverse power-related scenarios.

3. Quick Transition: For applications needing high-frequency operation, its quick switching capabilities is crucial.

Application Example: Controlling a DC Motor

1. Motor Integration: Connect the motor between the positive power supply and the drain (D) terminal of the IRFR6215TRPBF, ensuring the source (S) terminal is linked to the ground.

2. Gate Activation: A microcontroller or similar device can provide a voltage signal to the gate (G) terminal, dictating the on/off state of the MOSFET and, consequently, the motor's operation.

3. Snubber Circuit: By connecting a resistor and capacitor in series across the drain and source terminals, a snubber circuit can protect the MOSFET from voltage spikes caused by the inductive nature of the motor.

4. Current Monitoring: Incorporate a shunt resistor in series with the motor to enable current measurement, which is crucial for protecting the circuit from overcurrent conditions.

Design Insights:

- Gate Threshold: It's imperative to apply a gate voltage that not only switches the MOSFET effectively but also stays within the safe operational limits.

- Heat Dissipation: Given the potential for heat generation, especially in high-current applications, implementing thermal management strategies is essential.

- Circuit Layout Precision: Minimizing the distance between the MOSFET's terminals and the respective load and power source is advisable to reduce unwanted inductance and resistance.

In summary, the IRFR6215TRPBF stands out as a robust P-channel MOSFET suitable for various applications, including motor control. By paying attention to gate voltage, thermal management, and layout optimization, designers can effectively harness the capabilities of the IRFR6215TRPBF in their electronic projects.
