Infineon Technologies IRFR5410TRPBF

Part No.:: IRFR5410TRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRFR5410TRPBF.pdf

Description:: MOSFET P-CH 100V 13A DPAK

In Stock:: 65598

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFR5410TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
13A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
205mOhm @ 7.8A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
58 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
760 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
66W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRFR5410TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFR5410TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFR5410TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFR5410TRPBF information

Views：

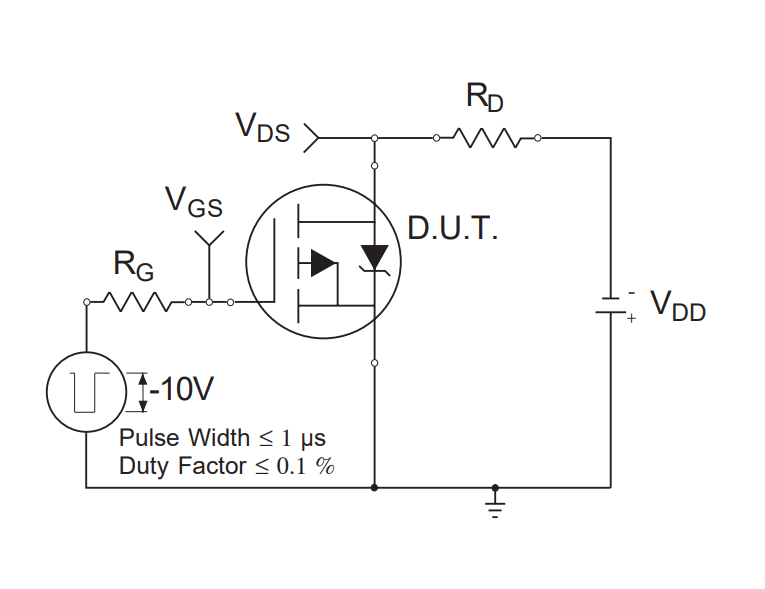

IRFR5410TRPBF Typical application Circuitry

IRFR5410TRPBF

The IRFR5410TRPBF, a stellar component from the celebrated HEXFET power MOSFET lineage by International Rectifier, exemplifies cutting-edge design principles, offering a P-channel MOSFET with impressive features. Being an epitome of innovation, this device, IRFR5410TRPBF, leverages advanced silicon technology to accomplish lower on-resistance and higher performance characteristics. As we embark on an exploration of this exceptional component, we'll delve into its pin-level intricacies and outline the proper procedures for circuit integration.

1. Gate (G): The Gate serves as the command center for the MOSFET, controlling its switch-on and switch-off states. When interfacing with control circuits or microcontrollers, ensure the input signal to the Gate is compatible with P-channel specifications. For instance, applying a voltage lower than the source voltage (ideally ground) turns the IRFR5410TRPBF on, whereas a signal closer to the source voltage turns it off.

2. Drain (D): The Drain of the IRFR5410TRPBF is where the current primarily exits. Depending on your application, this terminal can be linked to a load or an adjacent circuit stage. Given its P-channel nature, this MOSFET is commonly found in high-side switch configurations, with the Drain often connected to the positive end of the load.

3. Source (S): Typically, the Source pin of the IRFR5410TRPBF finds itself connected to a positive voltage supply in many applications. This pin also serves as a reference for the Gate's control signals.

4. Circuit Integration Insights:

- Ensuring Gate Stability: Introduce a resistor (often in the range of 10kΩ to 100kΩ) between the Gate and the Source. This pull-up resistor ensures the IRFR5410TRPBF remains off during transient states or when the control signal is absent.

- Protection Protocols: To shield the IRFR5410TRPBF from potential voltage surges, consider deploying a zener diode, with its cathode facing the Gate and anode linked to the Source. This acts as a voltage clamp, ensuring the Gate voltage remains within permissible bounds.

- Thermal Considerations: The IRFR5410TRPBF, when subjected to significant loads, can generate heat. Adequate heat dissipation strategies, such as attaching a heatsink or ensuring good airflow, can enhance the device's longevity and performance.

- Validity Checks: Post-assembly, it's prudent to run diagnostic tests to validate the IRFR5410TRPBF's functionality and the holistic circuit performance. Ensure the component doesn't exceed its specified voltage, current, and power limits.

In summation, the IRFR5410TRPBF embodies excellence in MOSFET design, bringing efficiency and reliability to electronic systems. When integrating this component, a nuanced understanding combined with precision yields the best outcomes. As always, referring to the datasheet of the IRFR5410TRPBF and heeding recommended practices amplifies the chances of a successful, optimal deployment in any electronic endeavor.
