Infineon Technologies IRFR024NTRPBF

Part No.:: IRFR024NTRPBF

Manufacturer:: Infineon Technologies

Package:: D-Pak

Datasheet:: IRFR024NTRPBF.pdf

Description:: MOSFET N-CH 55V 17A DPAK

In Stock:: 45359

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFR024NTRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
55 V
Current-ContinuousDrain(Id)@25°C:
17A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
75mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
20 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
370 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
45W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRFR024NTRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFR024NTRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFR024NTRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFR024NTRPBF information

Views：

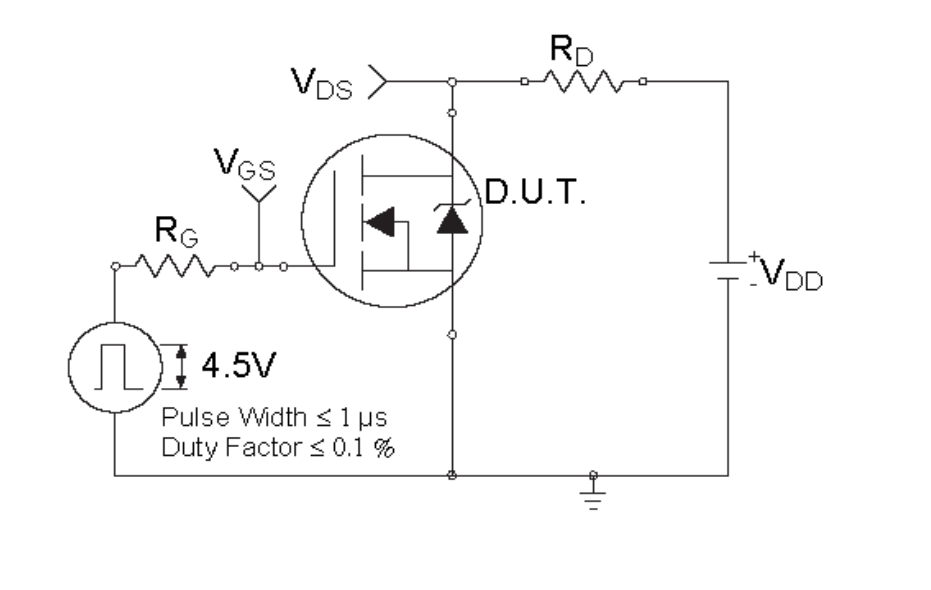

IRFR024NTRPBF Typical application Circuitry

IRFR024NTRPBF

The IRFR024NTRPBF, a component from International Rectifier's HEXFET power MOSFETs portfolio, is acknowledged for its resilience and efficiency in high-demand applications. This device, renowned for its low on-resistance and high-blocking voltage, plays a crucial role in power management solutions. As we delve into the specifics of the IRFR024NTRPBF, it becomes essential to understand its pin configuration and the subtleties of embedding it within a circuit for optimal functionality.

1. Drain (D): Acting as the output, the Drain (D) pin is responsible for channeling the current to the load. The connectivity extends from this terminal directly to the load being driven, ensuring that the current flow correlates with the IRFR024NTRPBF's switching actions.

2. Gate (G): The Gate is the control terminal, dictating the IRFR024NTRPBF's state. The voltage level applied here determines whether the MOSFET is on or off. Typically, a microcontroller or similar device governs the gate voltage, switching the IRFR024NTRPBF between states. To mitigate high-frequency interference or potential oscillations, a gate resistor might be necessary in the connection between the microcontroller and the Gate.

3. Source (S): The Source pin is the reference point for the Gate terminal. In most configurations, it connects to the ground or the lowest potential point in the circuit, completing the current path initiated at the Drain.

4. Critical Considerations for Advanced Circuitry:

- Gate Threshold Voltage: The voltage applied to the Gate must respect the threshold outlined in the IRFR024NTRPBF's datasheet to prevent underperformance or device damage. This specification is critical, as insufficient gate voltage results in incomplete MOSFET activation, leading to higher on-resistance and dissipated power.

- Protection Strategies: Integrate a flyback diode when the IRFR024NTRPBF is controlling inductive loads, protecting the device against inductive kickback. Additionally, a zener diode between the Gate and Source can safeguard against excessive voltage, preserving the MOSFET's longevity.

- Heat Dissipation: Effective thermal management is non-negotiable. Despite the IRFR024NTRPBF's efficiency, scenarios of high current or environmental heat can elevate device temperature, necessitating heat sinks or other cooling methods to maintain safe operating temperatures.

- Compliance with Operating Parameters: Adherence to the maximum ratings for voltage, current, and temperature specified for the IRFR024NTRPBF prevents scenarios that could compromise device integrity or functionality.

5. Final Validation: After circuit assembly, conduct thorough testing at minimal power to verify the operational logic and stability before scaling up to full operational loads. This step is vital to catch and rectify potential issues without risking component damage.

In summary, the IRFR024NTRPBF stands out as a pivotal element in efficient power management and switch operations within electronic circuits. Its inclusion in designs requires a nuanced understanding of its operational criteria and a meticulous approach to circuit integration. For robust applications and an assurance of safety and efficacy, always reference the specific datasheet of the IRFR024NTRPBF, and consider expert insights for complex circuit designs.
