Infineon Technologies IRFP4868PBF

Part No.:: IRFP4868PBF

Manufacturer:: Infineon Technologies

Package:: TO-247AC

Datasheet:: IRFP4868PBF.pdf

Description:: MOSFET N-CH 300V 70A TO247AC

In Stock:: 401

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFP4868PBF Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
300 V
Current-ContinuousDrain(Id)@25°C:
70A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
32mOhm @ 42A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
270 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
10774 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
517W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRFP4868PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFP4868PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFP4868PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFP4868PBF information

Views：

IRFP4868PBF Typical application Circuitry

IRFP4868PBF

The IRFP4868PBF is a power MOSFET offered by Infineon Technologies. It switches electrical current and is made to withstand high power levels. This is achieved through the field-effect transistor (FET) technology which ensures that power is used efficiently.

Application Scenarios: The IRFP4868PBF finds its utility in various fields such as switching power supplies, motor controls, and other high-power applications.

Key Parameters: The significant parameters for the IRFP4868PBF are its Drain-to-Source voltage (Vds) of 300V, continuous Drain current (Id) of 70A, and a relatively low on-resistance (Rds(on)) of around 14mΩ. These attributes make it ideal for high voltage and high current applications where efficiency is of utmost importance.

Let's consider an application scenario where the IRFP4868PBF is used in a basic motor control circuit.

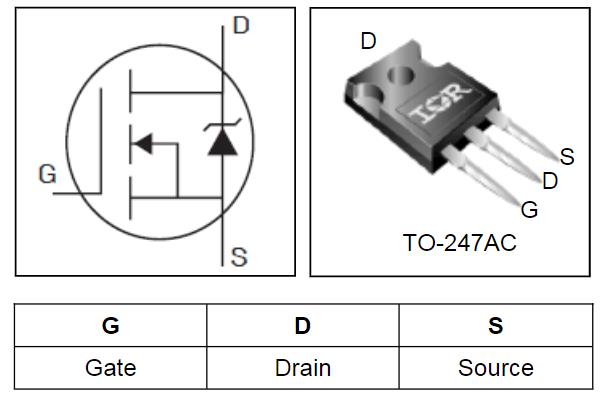

1. Drain Connection: The Drain (D, pin 2 of the TO-247AC package) is connected to the power source, typically the high voltage side.

2. Gate Connection: The Gate (G, pin 1 of the TO-247AC package) is controlled by a pulse-width modulation (PWM) signal from a microcontroller. This signal determines the ON and OFF state of the MOSFET, effectively controlling the motor speed.

3. Source Connection: The Source (S, pin 3 of the TO-247AC package) is connected to the motor and then to the ground, forming the return path for the current.

Designing with the IRFP4868PBF requires careful attention to some key considerations:

- Thermal Management: Given the significant power levels it handles, adequate heat sinking and ventilation must be ensured to avoid overheating of the device.

- Gate Drive Signal: The gate drive signal must be clean and robust. Spurious triggers can lead to inefficiencies and could potentially harm the MOSFET.

- Protection Measures: The circuit should incorporate protection measures such as flyback diodes to protect the MOSFET from voltage spikes, especially in inductive load applications like motors.

In conclusion, the IRFP4868PBF is a robust and high-performance power MOSFET suitable for various high-power applications. Proper consideration for heat management, gate drive signal integrity, and protection measures are essential to unlock its full potential effectively.
