Vishay Siliconix IRFP460PBF

Part No.:: IRFP460PBF

Manufacturer:: Vishay Siliconix

Package:: TO-247AC

Datasheet:: IRFP460PBF.pdf

Description:: MOSFET N-CH 500V 20A TO247-3

In Stock:: 1346

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFP460PBF Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
500 V
Current-ContinuousDrain(Id)@25°C:
20A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
270mOhm @ 12A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
210 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4200 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
280W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole

IRFP460PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFP460PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFP460PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFP460PBF information

Views：

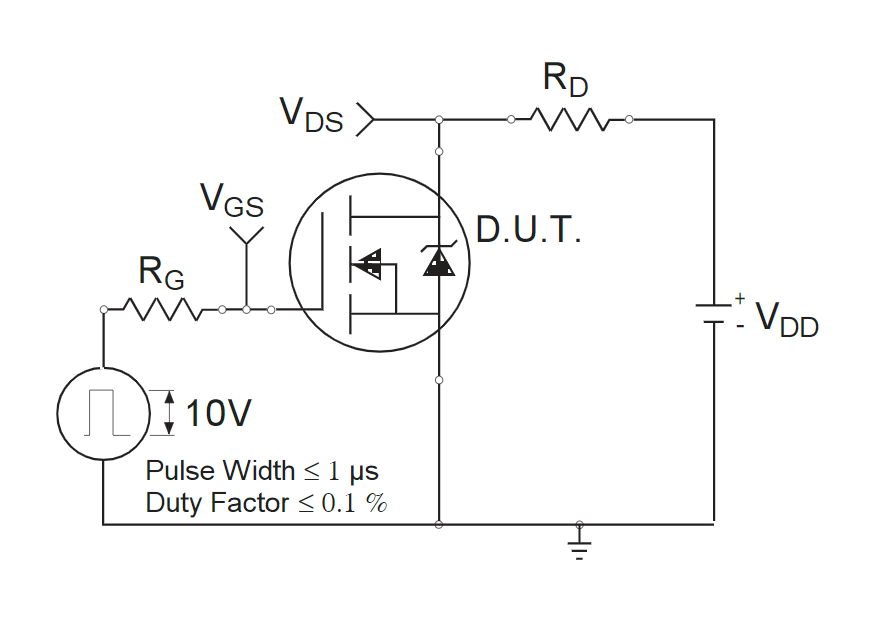

IRFP460PBF Typical application Circuitry

IRFP460PBF

Hailing from International Rectifier's illustrious HEXFET lineup, the IRFP460PBF stands as a powerful N-channel power MOSFET, celebrated for its exceptional voltage handling capabilities and efficient switching performance. Constructed using the company's cutting-edge silicon technology, the IRFP460PBF embodies the pinnacle of power transistor design, proving to be an indispensable component in various high-voltage applications. With a clear perspective on the pin layout and integration strategy, one can unlock the full potential of the IRFP460PBF.

1. Gate (G): As the command center, the Gate determines the conductive state of the IRFP460PBF. To control the MOSFET's on-off states, connect the Gate to the output of a driver or control circuit. Introducing a gate resistor in line can be beneficial, modulating the switching speed and safeguarding against potential oscillations.

2. Drain (D): Positioned as the main exit point for current flow through the MOSFET, the Drain should interface directly with the primary side of the load. Depending on the configuration (high-side or low-side switch), the other side of the load connects either to the positive terminal of the power supply or to the system ground.

3. Source (S): As the common reference point, the Source generally anchors to the ground in low-side switching setups. For high-side configurations, it connects directly to the load.

4. Advanced Circuit Integration Protocols:

- Gate-Source Protection: To shield the IRFP460PBF from unwarranted voltage spikes, consider appending a zener diode between the Gate and Source. This protective measure ensures that gate voltage remains within permissible limits, thus prolonging the MOSFET's lifespan.

- Transient Suppression: Especially when interfacing with inductive loads, it's prudent to add a flyback diode across the load, with its anode connected to the Source and cathode to the Drain. This diode safeguards the IRFP460PBF from voltage surges during the inductive fallback.

- Thermal Management: Remember, the IRFP460PBF, despite its efficiency, may demand thermal management under high-power scenarios. Incorporating a heat sink, coupled with thermal paste, will facilitate heat dissipation, ensuring the MOSFET remains within operational temperature ranges.

- Operational Verification: After the integration of the IRFP460PBF, always carry out preliminary tests at reduced power levels. This stage helps detect any problems before they become more serious in addition to validating the connections.

In sum, the IRFP460PBF, with its formidable features, stands as a testament to International Rectifier's commitment to excellence in power electronics. When incorporating this MOSFET into designs, meticulous attention to pin-specific connections and adherence to recommended practices can ensure seamless operation. As with any component, consulting the IRFP460PBF datasheet remains crucial for understanding its intricacies, thereby maximizing its contributions to the broader circuit framework.
