Infineon Technologies IRFP260NPBF

Part No.:: IRFP260NPBF

Manufacturer:: Infineon Technologies

Package:: TO-247AC

Datasheet:: IRFP260NPBF.pdf

Description:: MOSFET N-CH 200V 50A TO247AC

In Stock:: 7677

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFP260NPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
200 V
Current-ContinuousDrain(Id)@25°C:
50A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
40mOhm @ 28A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
234 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4057 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
300W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRFP260NPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFP260NPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFP260NPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFP260NPBF information

Views：

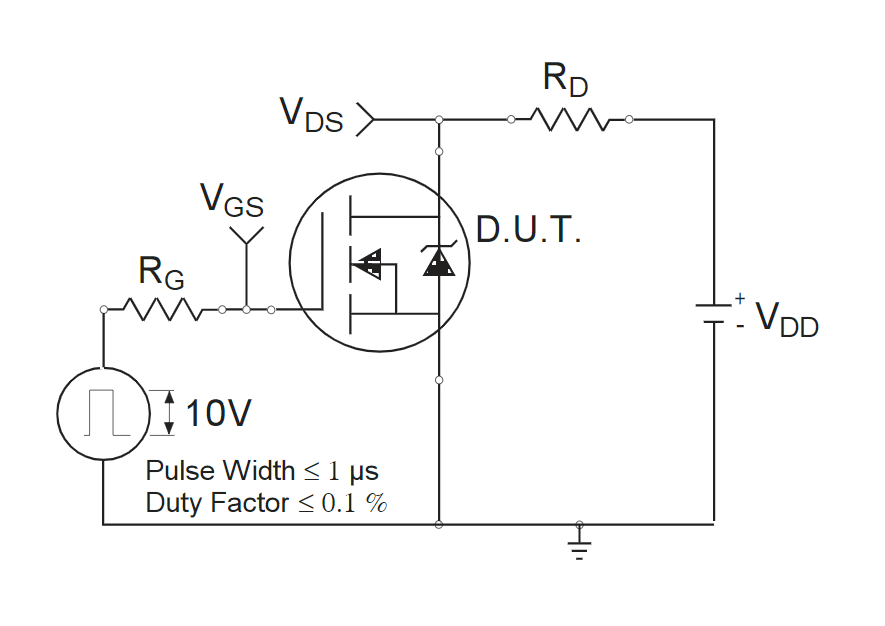

IRFP260NPBF Typical application Circuitry

IRFP260NPBF

Heralding from the distinguished HEXFET Power MOSFET lineage, the IRFP260NPBF is an N-channel power MOSFET lauded for its robustness and efficiency. International Rectifier's IRFP260NPBF, with its high current capacity and low on-resistance, provides an optimum solution for high-power switching and amplification needs. As we navigate the nuances of integrating the IRFP260NPBF into a circuit, we'll also accentuate the significance of each pin to ensure its optimal performance.

1. Gate (G):

- Acting as the command center, the gate dictates whether the MOSFET conducts or insulates. To activate the gate, a voltage (positive for N-channels) is applied to it relative to the source. When interfacing with control circuits, a gate resistor can be utilized to fine-tune the switching time, thus suppressing potential oscillations.

- For added protection, a zener diode can be placed between the gate and source, ensuring that the gate-source voltage doesn't exceed the IRFP260NPBF's maximum specified value.

2. Drain (D): This terminal is akin to the output for the MOSFET. Depending on your circuit's configuration-whether you're using the MOSFET for high-side or low-side switching-the drain will connect to the positive end of the load or directly to the power supply.

3. Source (S): For the IRFP260NPBF, this terminal is typically the reference point. In a standard low-side switching configuration, the source pin would be connected directly to ground. Conversely, in high-side configurations, it would interface with the load.

4. Additional Integration Considerations:

- Gate Drive Circuitry: Since the IRFP260NPBF requires a specific voltage at its gate to turn on fully, it's often imperative to employ a gate driver circuit, especially when the control signal originates from low-voltage sources like microcontrollers.

- Transient Protection: Employing a flyback diode, especially when working with inductive loads, is crucial to protect the IRFP260NPBF from voltage spikes that could arise from the collapse of the magnetic field in inductors or motors.

- Thermal Management: Given that the IRFP260NPBF can manage high currents, heat generation can be a concern. Use heat sinks or other thermal management strategies to maintain an optimal operating temperature, ensuring longevity and reliability.

To recap, the IRFP260NPBF stands as a testament to the advances in MOSFET technology, offering designers a powerful tool in their arsenal for efficient power management and conversion. When integrating this component, a thorough understanding of its pin configuration, accompanied by adherence to its datasheet, ensures that the IRFP260NPBF operates at its peak potential. Whether it's for power supplies, motor drives, or other high-power applications, this MOSFET is a reliable and efficient choice.
